| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | PU220AR-01 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, Western Union,Paypal, MoneyGram |
| Supply Ability: | 300000 sets per month |
| Port Size: | 1/8'' | Orifice Size: | 1.5mm |
|---|---|---|---|
| Function: | 2 Way, Normally Closed | Operation: | Direct Acting |
| Body Material: | Brass | Seal Material: | NBR |
| Voltages: | 24VDC, 110VAC, 220VAC | Working Pressure Range: | 0 To 7 Bar |
| High Light: | Shako 2/2 Way Solenoid Valve,Shako PU220AR Solenoid Valve,Shako PU220AR-01 |
||

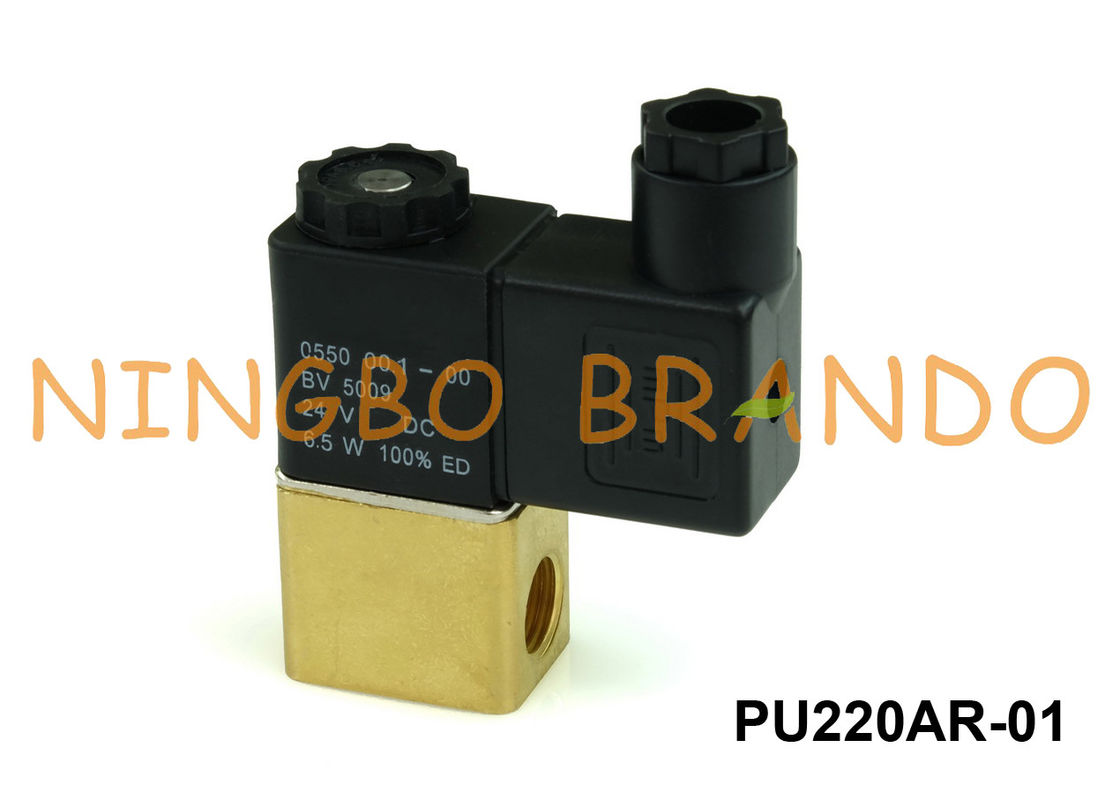

PU220AR-01 Shako Type 2/2 Way NC Brass Solenoid Valve 1/8'' 24V 220V
Miniature Brass Solenoid Valve 2/2 Way: PU220AR-01-02-03
1. 1/8'', 1/4'' or 3/8'' BSP or NPT thread
2. NBR seals,optional Viton or EPDM sealing.
3. 2/2 way normally closed quick response.
4. Pressure AC 0 to 20 bar / DC 0 to 13 bar depending on orifice, pressure tested to 30 bar.
5. Direct acting 1/8'', 1/4'' and assisted lift 3/8''.
6. Compact miniature 2 way solenoid valve.
7. Most voltages available.
8. Temperature media -10 to +90℃, ambient -10 to +60℃.
9. Coil class F, DIN43650B or flying lead wire 100% duty rated, option ATEX coil.
10. Brass body with stainless steel internals extend valve valve.
11. NBR seals suited for air, water, neutral gases and mineral oils - Viton seals fuel oil, gasoline, hi-test gasoline, diesel fuel - EPDM hot water and liquid detergents.
Main Dimension of PU220AR series Solenoid Valve:
|
Model
|
PU220AR-01
|
PU220AR-02
|
PU220AR-03
|
|
R
|
1/8''
|
1/4''
|
3/8''
|
|
A
|
22
|
25.4
|
30
|
|
B
|
22
|
35
|
55
|
|
C
|
72
|
75
|
79
|
|
D
|
15
|
18
|
18
|
|
E
|
11
|
17.5
|
27.5
|
|
F
|
22
|
25.4
|
25
|
|
G
|
7.5
|
12.7
|
11
|
|
H
|
M4XP0.7XL6.5
|
M5XP0.8XL7.0
|
M5XP0.8XL7.0
|
Technical Data of PU220AR series Solenoid Valve:
|
PU220AR Series
|
PU220AR-01
|
PU220AR-011
|
PU220AR-012
|
PU220AR-02
|
PU220AR-021
|
PU220AR-022
|
PU220AR-03
|
|
Port Size
|
1/8''
|
1/4''
|
3/8''
|
||||
|
Orifice Size
|
1.5mm
|
0.8mm
|
1.2mm
|
2.3mm
|
1.2mm
|
1.5mm
|
8.0mm
|
|
Effective Area
|
1.8mm²
|
3.3mm²
|
20.64mm²
|
||||
|
Medium
|
Compressed Air, Light oil, Water
|
||||||
|
Action
|
Direct Acting
|
Assisted Lift
|
|||||
|
Function
|
2 Way, Normally Closed
|
||||||
|
Body Material
|
Brass
|
||||||
|
Pressure
Range (bar)
|
0 to 7 bar
|
||||||
|
Temperature Range
|
-5 to +80℃
|
||||||
|
Standard Voltages
|
24VDC, 110VAC, 220VAC, the other voltage is optional
|
||||||
Ordering Code of PU220AR series Solenoid Valve:
