| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | AB42 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Port Size: | 1/8'', 1/4'', 3/8'', 1/2'' | Operation Mode: | 2 Way, Normally Open |
|---|---|---|---|
| Action: | Direct Acting | Working Fluids: | Water, Oil, Air, Gas |
| Body Material: | Brass | Seal Material: | NBR, EPDM, FKM |
| Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | Pressure Range: | 0 To 2 MPa |
| High Light: | CKD Solenoid Valve AB42,2 Way NO Solenoid Valve,Brass Solenoid Valve CKD |
||

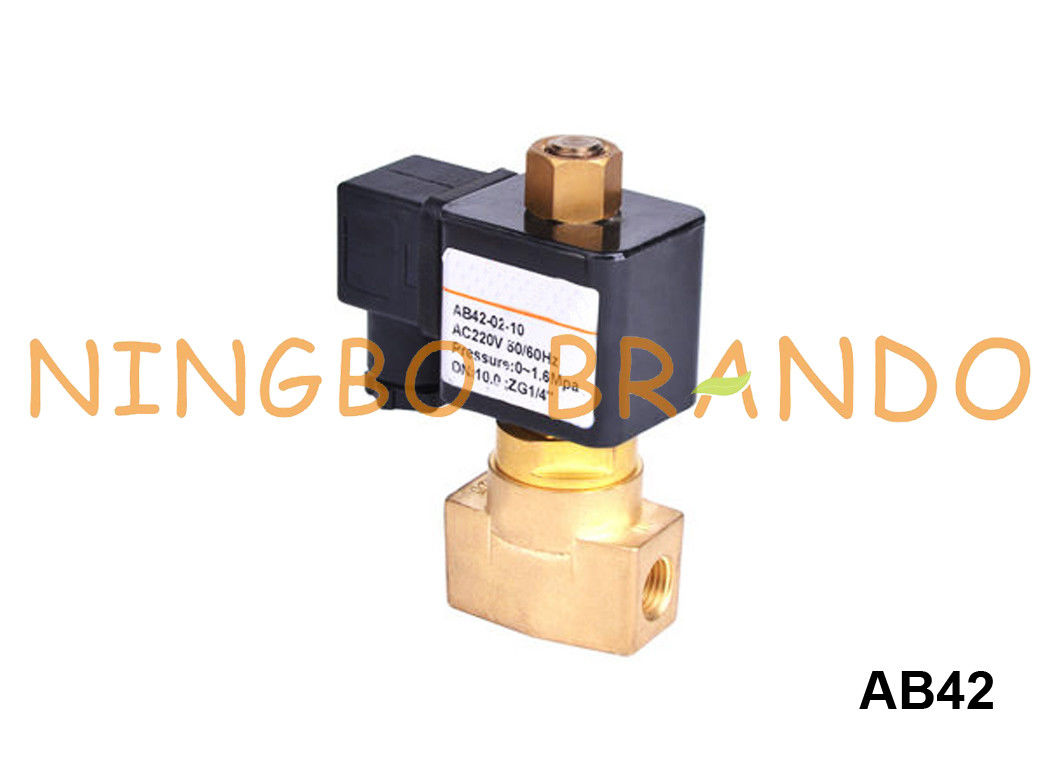

AB42 CKD Type 2 Way NO Brass Solenoid Valve 1/8'' 1/4'' 3/8'' 1/2''
AB31 / AB41 / AB42 series for controlling various fluids including water, air, oil, and vacuum. Offers high reliability and high quality and the ample options assure performance in different equipment and device types.
1. High durability:
With coil rectification and countermeasures for wear of sliding section, it is highly durable even with dry air and inert gas.
2. Variation:
The body material (copper alloy, stainless steel) and sealing material (nitrile rubber, fluoro rubber, EPDM) can be selected.
3. Compact:
Space saving of piping possible, also supports manifold.
Main Dimension of AB31 / AB41 / AB42 Brass Solenoid Valve:
 |
|
| AB31, AB41 (NC) | AB42 (NO) |
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
AB31 (NC)
|
36
|
28
|
11
|
72
|
20
|
26
|
34
|
|
AB41 (NC)
|
46
|
12
|
90
|
23.5
|
30.5
|
38
|
|
|
AB42 (NO)
|
36
|
11
|
94
|
19
|
19
|
30
|
Technical Data of AB31 / AB41 / AB42 Brass Solenoid Valve:
|
Model
|
Port Size
|
Orifice Size
|
Max. Working Pressure (MPa)
|
Medium Temperature
|
|
|
Normally Closed Type
|
|||||
|
AB31-01
02
|
-1
|
1/8'', 1/4''
|
1.5
|
5
(1 for steam)
|
NBR: -5 to +85℃
EPDM: -5 to +150℃
FKM: -10 to +150℃
|
|
-2
|
2.0
|
||||
|
-3
|
3.0
|
||||
|
-4
|
3.5
|
||||
|
-5
|
4.0
|
||||
|
-6
|
5.0
|
||||
|
AB41-02
03
|
-1
|
1/4'', 3/8''
|
1.5
|
||
|
-2
|
2.0
|
||||
|
-3
|
3.0
|
||||
|
-4
|
3.5
|
||||
|
-5
|
4.0
|
||||
|
-6
|
5.0
|
||||
|
-7
|
7.0
|
||||
|
AB41-03
04
|
-8
|
3/8'', 1/2''
|
10.0
|
||
|
Normally Open Type
|
|||||
|
AB42-02
03
|
-1
|
1/4'', 3/8''
|
1.5
|
2
(1 for steam)
|
|
|
-2
|
2.0
|
||||
|
-3
|
3.0
|
||||
|
-4
|
3.5
|
||||
|
-5
|
4.0
|
||||
|
-6
|
5.0
|
||||
|
-7
|
7.0
|
||||
Brando Factory Production of Brass Solenoid Valves:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
