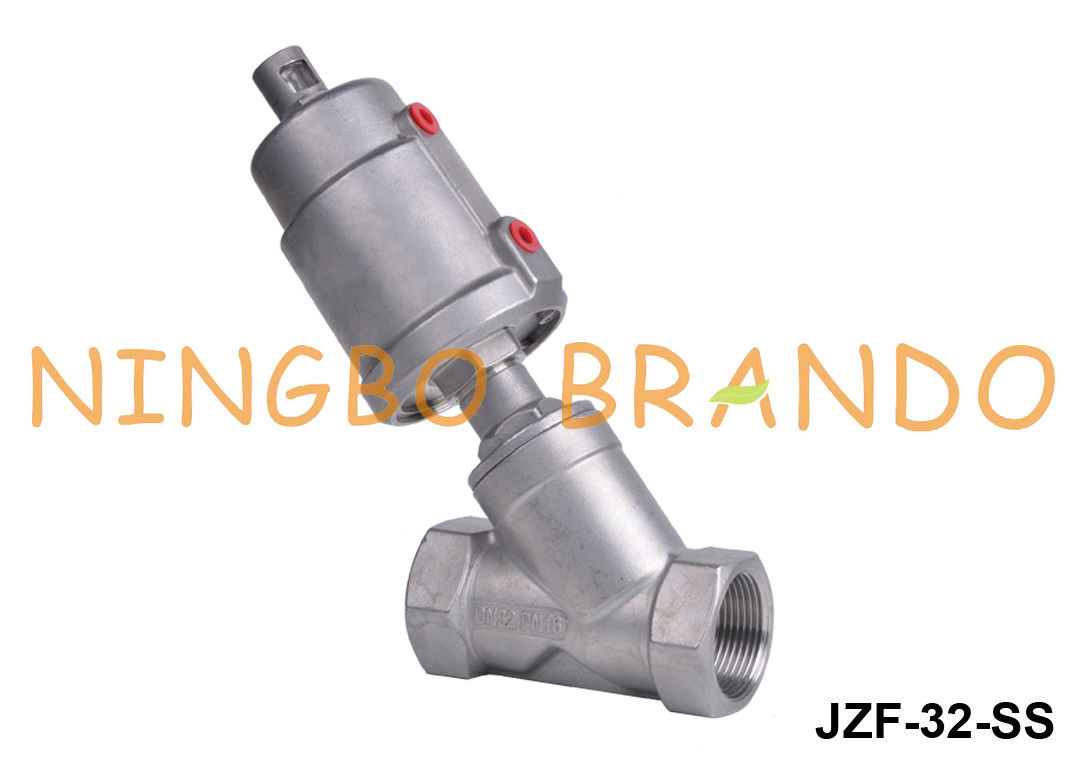

1 1/4'' Threaded 2/2 Way Pneumatic Angle Seat Valve Double Acting

1 1/4'' Threaded 2/2 Way Pneumatic Angle Seat Valve Double Acting

Angle Seat Valves have a robust construction similar to globe valves, but use a piston operated angle seat valve with a closure spring. The body is normally cast or die-forged in one piece. A plug is connected to the end of the piston which is seated on PTFE seats. The piston is designed to retract further from the seat, thereby providing maximum flow rate. They may be Normally Closed (NC), Normally Open (NO) or Double Acting. The piston actuator comes with threaded ports or with NAMUR ports which allows for direct mounting of NAMUR style solenoid valves.

Often, the actuator head can be rotated 360° to allow optimum position of air and electric lines in tight locations. The valve body is generally made of brass or stainless steel. Connection types include threaded, clamped or welded. Typically, a visual indicator on the top of the piston shows whether the valve is open or closed.

Main Dimension of Angle Seat Valve:

Stainless Steel Body With Stainless Steel Actuator

Technical Data of Angle Seat Valve:

Angle Seat Valve Disassembly Display:

Brando Factory Valve Production:

More Angle Seat Valves for you to choose:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
