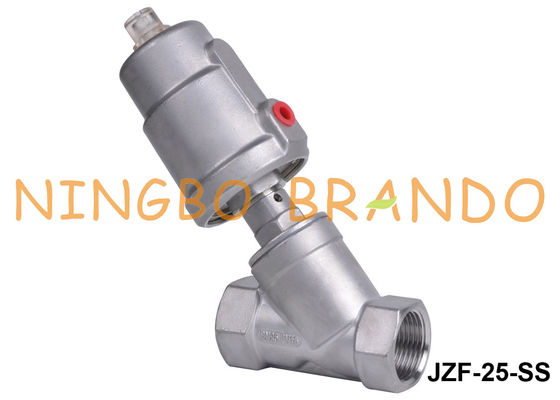

1'' Threaded DN25 Stainless Steel Head Angle Seat Valve Pneumatic

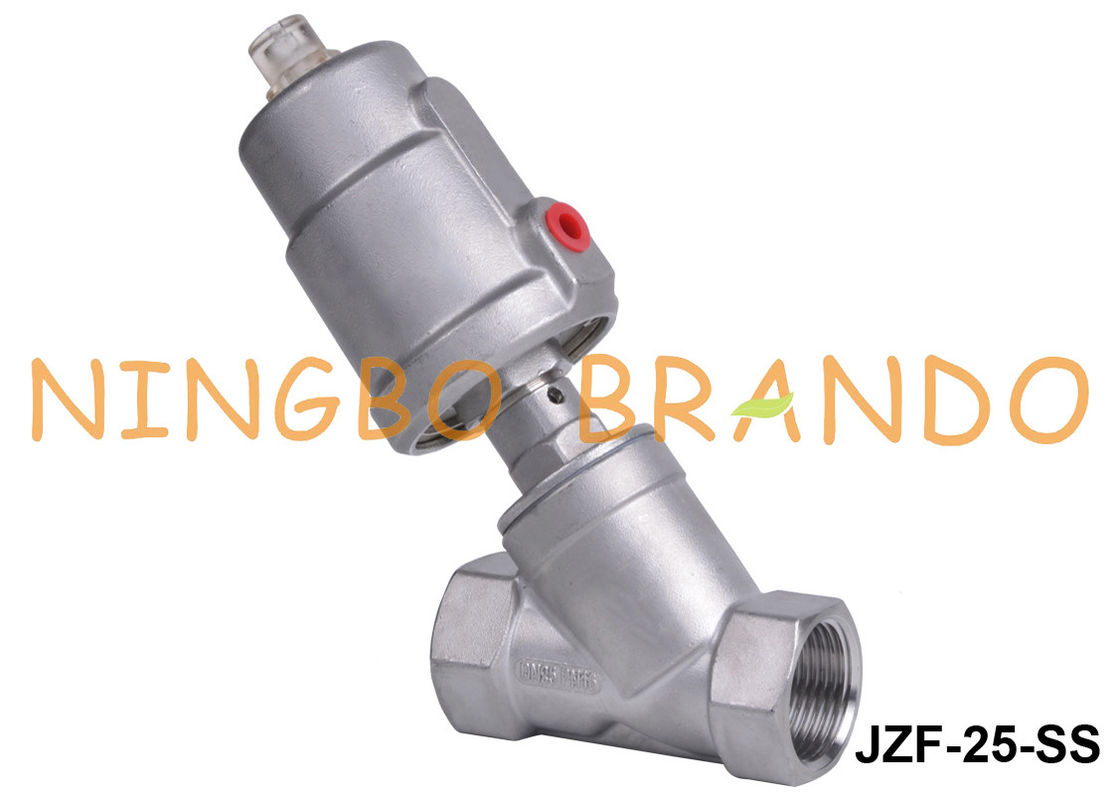

1'' Threaded DN25 Stainless Steel Head Angle Seat Valve Pneumatic

  • 1'' Threaded DN25 Stainless Steel Head Angle Seat Valve Pneumatic
1'' Threaded DN25 Stainless Steel Head Angle Seat Valve Pneumatic
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: JZF-DN25-SS
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 1'' Port Connections: Threaded
Orifice Size: 25mm Working Fluids: Netral And Aggressive Liquid, Gas
Body Material: SS304, SS316 Seal Material: PTFE
Working Pressure Range: 0.4 To 0.8 MPa Max. Working Pressure Range: 1.6 MPa
High Light:

Angle Seat Valve Pneumatic

,

Threaded Angle Seat Valve

,

Angle Seat Valve Stainless Steel

1'' Threaded DN25 Stainless Steel Head Angle Seat Valve Pneumatic



Angle seat valves are 2/2-way pneumatically actuated piston valves. The piston actuator provides a linear motion to lift the seal off its seat. Because the seat is positioned under an angle, the flow is minimally impeded in the open position, resulting in an excellent flow rate and a low pressure loss. They are used to regulate the flow of liquids, gases, steam, vacuum and even aggressive fluids. They can also operate with high temperatures and high viscosity media, even under zero differential pressures. The robust design makes angle seat valves a popular choice for harsh applications and they have very high cycle lives. Therefore, they are excellent long-life alternatives to ball valves. These valves are also suitable alternatives for solenoid valves, especially with contaminated, viscous media where typical solenoid valves would fail. They may be operated using a single acting or double acting configuration, which has an influence on its pressure rating. They can also be designed as manually operated or electrically operated.



Main Dimension of Angle Seat Valve:



Stainless Steel Body With Stainless Steel Actuator

                                             1'' Threaded DN25 Stainless Steel Head Angle Seat Valve Pneumatic 0

Nominal Diameter
Actuator
(mm)
D
R
P
G
H
L
L1
T
DN15
50
62
33.5
1/8''
1/2''
126
137
68
13
DN20
50
62
33.5
3/4''
138
144
75
16
DN25
50
62
33.5
1''
148
156
90
16
DN32
63
76
42
1 1/4''
182
188
110
21
DN40
63
76
42
1 1/2''
182
190
116
21
DN50
63
76
42
2''
195
205
136
22
DN65
80
96
52
2 1/2''
280
252
185
30
DN80
100
114
63
3''
320
280
220
33
DN100
100
114
63
4''
350
300
235
35



Technical Data of Angle Seat Valve:

Medium Temperature
-10 to +180℃
Ambient Temperature
-10 to +60℃
Max. Working Pressure Range
1.6 MPa
Working Medium
Netral and Aggressive Liquid, Gas
Working Pressure
0.4 to 0.8 MPa
Body Material
SS304, SS316
Seal Material
PTFE
Connection Size
1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections
Threaded, Flanged, Welded, Clamp
Nominal Diameter
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure
Normally Closed, Normally Open
