| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | Q22HD-35 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Port Size: | 1 1/4'' | Orifice Size: | 35mm |
|---|---|---|---|
| Action: | Double Acting, Single Acting | Working Fluids: | Air, Water, Oil, Gas |
| Body Material: | Brass | Seal Material: | NBR, EPDM, FKM |
| Pressure Range: | 0 To 1 MPa | Temperature Range: | NBR: -5 To +80℃, EPDM, FKM: -5 To +150℃ |
| High Light: | Air Operated Piston Valve,Air Actuated Piston Valve,Pneumatic Operated Piston Valve |
||

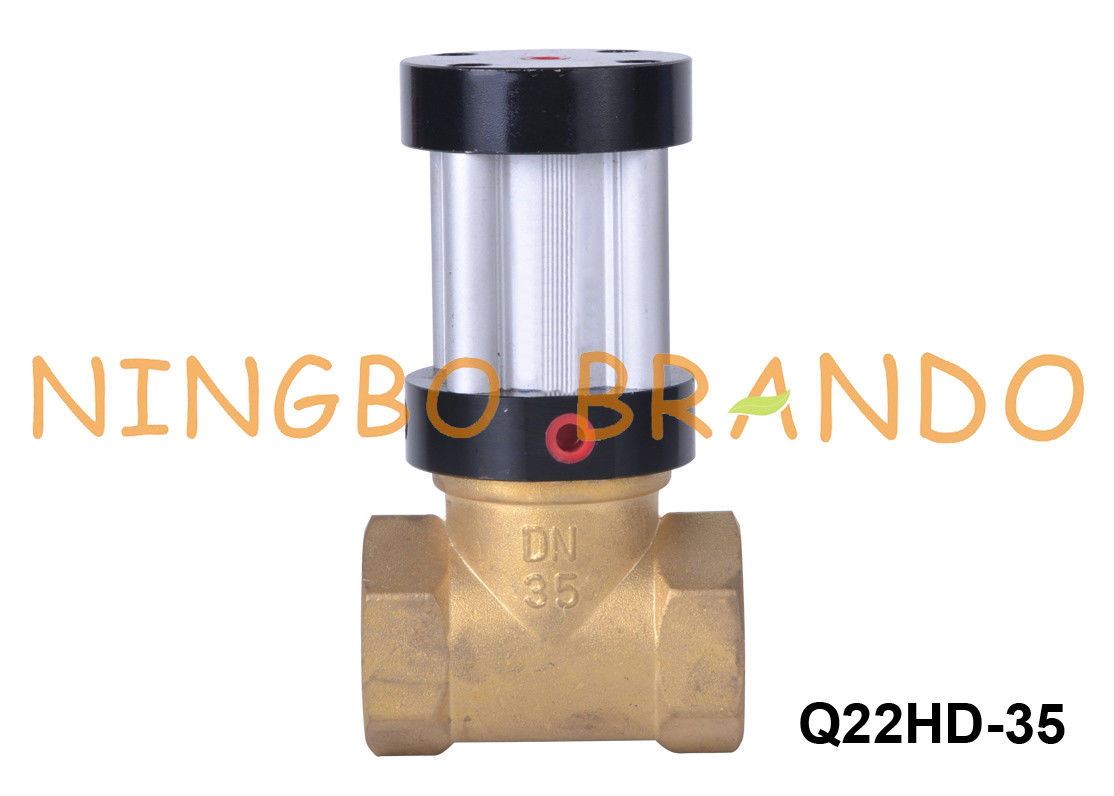

Q22HD-35 1 1/4'' DN35 2 Way Brass Body Air Operated Piston Valve
Air operated valves, also known as pneumatic piston valves or air operated piston valves are designed to function effectively in a wide range of high demanding industry applications. Often used in applications where there is excess ambient temperature or high-pressure steam duty, air operated valves are multifunctional and can be used with varying media, including: air, water, hydraulic oil and steam.
In order to allow the valves to operate effectively with dangerous media, the piston valve material has to be durable. Air operated valves from BRANDO are manufactured from only the most hard-wearing and robust material selection, including bronze, brass and stainless steel. These materials are recognised for their ability to operate in hazardous environments without damaging the service life of the valve.
Main Dimension of Pneumatic Control Piston Valve:
|
Model
|
A
|
B
|
C
|
D
|
H
|
M
|
|
Q22HD-15
|
48
|
26
|
30
|
1/2''
|
96
|
1/8''
|
|
Q22HD-20
|
55
|
32
|
37
|
3/4''
|
107
|
|
|
Q22HD-25
|
66
|
38
|
37
|
1''
|
118
|
|
|
Q22HD-35
|
84
|
49
|
66
|
1 1/4''
|
162
|
|
|
Q22HD-40
|
84
|
54
|
66
|
1 1/2''
|
162
|
|
|
Q22HD-50
|
102
|
66
|
80
|
2''
|
180
|
Technical Data of Pneumatic Control Piston Valve:
|
Model
|
Q22HD-15
|
Q22HD-20
|
Q22HD-25
|
Q22HD-35
|
Q22HD-40
|
Q22HD-50
|
|
Port Size
|
1/2''
|
3/4''
|
1''
|
1 1/4''
|
1 1/2''
|
2''
|
|
Orifice Size
|
15mm
|
20mm
|
25mm
|
35mm
|
40mm
|
50mm
|
|
Body Material
|
Brass
|
|||||
|
Working Medium
|
Air, Water, Oil, Liquefied Gas, Free-runing Viscosity Liquid
|
|||||
|
Action
|
Double Acting, Single Acting
|
|||||
|
Pressure Range
|
0 to 1 MPa
|
|||||
|
Meidum Temperature
|
NBR: -5 to +80℃, EPDM, FKM: -5 to +150℃
|
|||||
|
Kv Value
|
4
|
5
|
10
|
25
|
25
|
40
|
