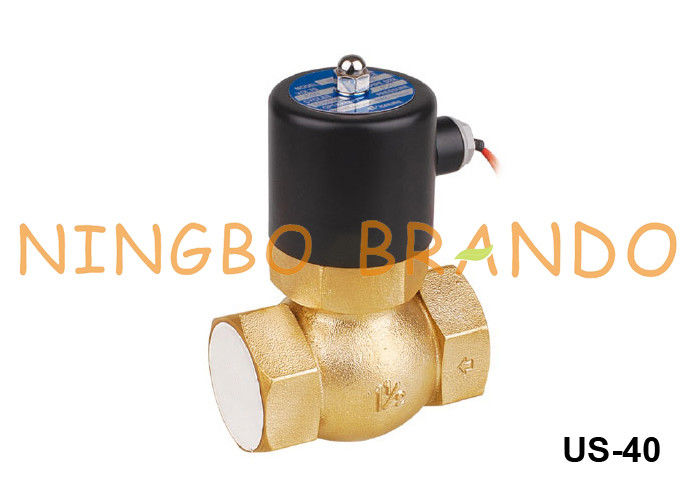

Name: 2L-40 US-40 Uni-D Type Steam Brass Solenoid Valve 1 1/2'' 24V 220V
Brand: Brando
SKU: US-40
Rating: 4.8 (198 reviews)

Home Products Brass Solenoid Valve

2L-40 US-40 Uni-D Type Steam Brass Solenoid Valve 1 1/2'' 24V 220V

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	US-40

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner boxes, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	1 1/2''	Orifice Size:	30mm
Operation Mode:	2 Way, Normally Closed	Action:	Piston Piloted Operated
Working Fluids:	Hot Water, Steam	Body Material:	Brass, Stainless Steel
Seal Material:	PTFE	Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Pressure Range:	0.1 To 1.5 MPa	Temperature Range:	-20 To +185 ℃
High Light:	2L-40 Solenoid Valve , Steam Solenoid Valve 1 1/2'' , Uni-D US-40

2L-40 US-40 Uni-D Type Steam Brass Solenoid Valve 1 1/2'' 24V 220V

2L / US series high temperature hot water and steam solenoid valves are generally either Brass or Stainless Steel body with PTFE seals suitable for temperatures up to +180℃ or a maximum steam pressure or 8 Bar. High temperature solenoid valves are controlled by a solenoid coil which is basically an electric magnet or copper wire wound around a bobine (a bit like a cotton reel) so when electricity is passed along the wire it generates a magnetic field. This in turn can lift or move an internal armature (typically magnetic stainless steel 430F) within the valve to either expose a pilot hole, lift a plunger or piston assembly so the media being controlled can pass through the main valve body.

Main Dimension of Steam Solenoid Valve:

2L-40 US-40 Uni-D Type Steam Brass Solenoid Valve 1 1/2'' 24V 220V 0

US Series	2L Series	A	B	C	Port Size
US-10	2L-10	82	42	146	3/8''
US-15	2L-15				1/2''
US-20	2L-20				3/4''
US-25	2L-25	90	54	162	1''
US-35	2L-35	110	75	185	1 1/4''
US-40	2L-40	110	75	185	1 1/2''
US-50	2L-50	120	77	195	2''

Technical Data of Steam Solenoid Valve:

2L Series	2L-10	2L-15	2L-20	2L-25	2L-35	2L-40	2L-50
US Series	US-10	US-15	US-20	US-25	US-35	US-40	US-50
Orifice Size	17	17	17	22	30	30	50
Port Size	3/8''	1/2''	3/4''	1''	1-1/4''	1-1/2''	2''
Medium	Hot Water, Steam
Action	Direct Acting, Servo Pilot Operated
Function	2 Way, Normally Closed
Body Material	Brass, Stainless Steel
Seal Material	PTFE, FKM
Pressure Range	0.1 to 1.5 MPa
Temp. Range	PTFE: -20 to +185℃, FKM: -10 to +150℃
Coil Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
