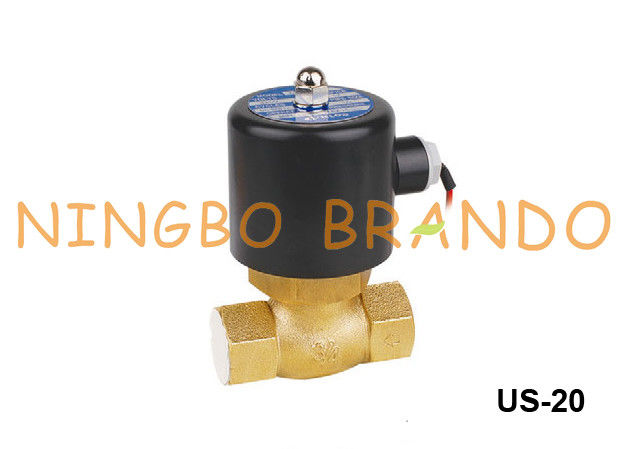

2L-20 US-20 Uni-D Type Hot Water And Steam Solenoid Valve 3/4'' 24V 220V

2L-20 US-20 Uni-D Type Hot Water And Steam Solenoid Valve 3/4'' 24V 220V

2L series piston pilot operated steam solenoid valve, it is 2 way normally closed. It is high temperature can up to -5 to 185° C, so mostly for steam medium, we also call it steam valve. It is designed correspondingly to support higher pressure of 1.5MPa, the orifice also will be bigger than normal valve for same thread size to make larger flow rate. It can change the solenoid coils to be as explosion-proof solenoid valve.

1) Port size: 1/2'' to 2''

2) Working Medium: Steam, air, water

3) Action Type: Pilot operated

4) Valve Body: Brass or Stainless Steel

5) Valve Control Style: NC (normally closed)

6) Orifice Size: 17, 22, 30, 50

7) Working Pressure: 0~1.5MPa

8) Max. Proof Pressure: 1.5MPa

9) Seal Material: PTFE

10) Working Temperature: -5~185° C

11) Wiring Form: Lead wire type, DIN connector, explosion-proof coil
12) Voltage: DC12V, DC24V, AC24V, AC110V, AC220V, AC380V 50/60Hz

Main Dimension of Steam Solenoid Valve:

Technical Data of Steam Solenoid Valve:

Brando Factory Production of Brass Solenoid Valves:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
