Home ProductsPneumatic Hose Fittings

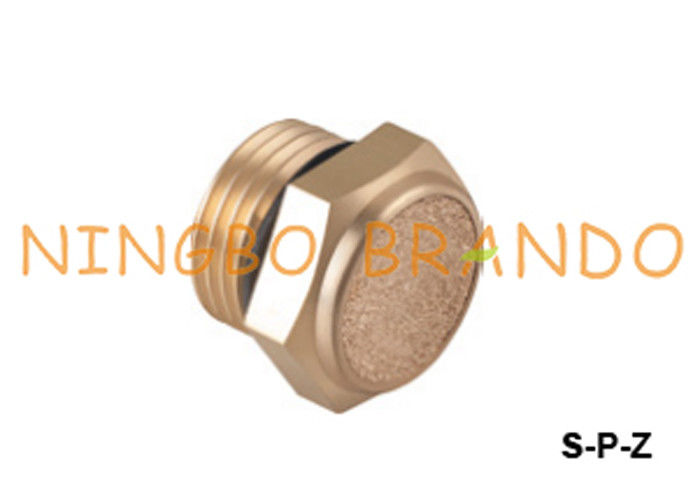

Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4''

Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4''

  • Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4''
Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4''
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: S-P-Z
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: PVC bag, then inner box, then carton, then pallet
Delivery Time: 1 week after payment
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 10000000pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Silencer Muffler Tube OD (Inch): 1/8", 1/4'', 3/8'', 1/2'', 3/4'', 1''
Material: Brass Working Pressure Range: 0 To 0.8MPa
Working Temperature: -10 To +250℃ Working Medium: Compressed Air
High Light:

Solenoid Valve Silencer

,

Solenoid Valve Muffler

,

Pneumatic Silencer 1/4''

Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4''



The three most common designs of pneumatic mufflers you could encounter are:



1. Cone-shaped pneumatic silencers
2. Flat-shaped pneumatic silencers
3. Cylindrical pneumatic silencers



Each design suits a different application as working temperature ranges and pressure ranges can affect suitability. There are also connection options to consider, such as threaded or push-in connectors, and housing materials which can dictate what type of pneumatic silencer your system should be using.



Technical data of Pneumatic Silencer Muffler:

Model
Working Medium
Working Pressure
(MPa)
Working Temp
(℃)
Circulation Capacity
Noise Effect
"S" data
Nominal Flux
-2.5
Compressed Air
0 to 0.8
-10 to +250
5
200L/Min
≥20dB
-6
20
960L/Min
-8
40
1920L/Min
-10
60
2880L/Min
-15
110
5280L/Min
-20
190
9120L/Min
-25
300
10000L/Min
-32
400
19200L/Min
≥25dB
-40
650
31200L/Min
-55
700
33600L/Min


Dimension of Pneumatic Silencer Muffler:

                                   Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 0

Model No
φD
M
L1
L
S-P-Z2.5
M6x1
6
10
10
S-P-Z4
M8x1
7
11
13
S-P-Z6
M10x1
7
12
14
G1/8''
7
12
14
S-P-Z8
M12x1.25
9
15
16
G1/4''
9
15
16
S-P-Z10
M16x1.5
10
17
19
G3/8''
10
17
19
S-P-Z15
M20x1.5
11
18
27
G1/2''
11
18
27
S-P-Z20
M27x2
13
23
32
G3/4''
13
23
32
S-P-Z25
M33x2
15
25
36
G1''
15
25
36



List of other Brass Pneumatic Air Muffler:

Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 1 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 2 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 3 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 4
Throttle Valve C Type Throttle Valve PTV Throttle Valve SD Timing Muffler
Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 5 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 6 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 7 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 8
Muffler (Sintered) Muffler (Flat Head) LM Aluminous Muffler G Type Muffler
Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 9 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 10 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 11 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 12
D Type Muffler E Type Muffler PSU Plastic Muffler SU Plastic Muffler



More Pneumatic Products for you to choose:



2/2 Way Pneumatic Valve 3/2 Way Pneumatic Valve 5/2 Way Pneumatic Valve 5/3 Way Pneumatic Valve
1/4'' NPT AFC2000 Airtac Type Air Filter Regulator And Lubricator 4 1/4'' NPT AFC2000 Airtac Type Air Filter Regulator And Lubricator 5 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 15 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 16
Namur Solenoid Valve Air Filter Regulator Lubricator Pneumatic Cylinder Silcencers And Fittings
1/4'' NPT AFC2000 Airtac Type Air Filter Regulator And Lubricator 8 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 18 Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 19

Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 20

Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4'' 21



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
