| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | BCSM-J-Z-G |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PVC bag, then inner box, then carton, then pallet |
| Delivery Time: | 1 week after payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, MoneyGram |
| Supply Ability: | 10000000pcs per month |
| Product Name: | Pneumatic Hose Fittings | Type: | Male 90 Degree Elbow |
|---|---|---|---|
| Tube OD (Inch): | 1/8", 1/4", 3/8", 1/2" | Tube OD (Mertric): | 4mm, 6mm, 8mm, 10mm, 12mm |
| Material: | Brass | Working Pressure Range: | 0 To 0.8MPa |
| Working Temperature: | 0 To +60℃ | Connection: | Fast Twist |
| High Light: | Pneumatic Coupling Brass,Pneumatic Couplings Fittings,Pneumatic Hose Coupling |
||

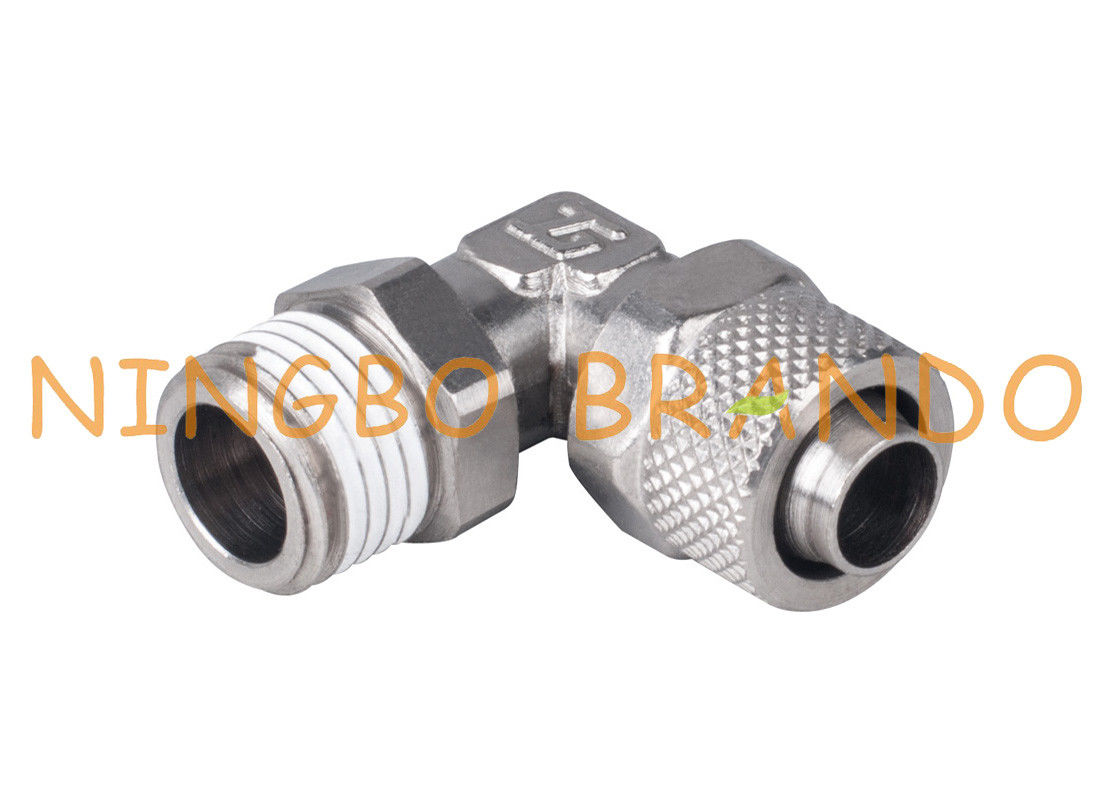

Fast Twist Pneumatic Hose Fittings Male 90 Degree Elbow 1/8'' 1/4''
Pneumatic fittings are ideally connectors; they provide the link between various pneumatic system components, including hoses, tubes, and pipes. pneumatic fittings.
They tend to resemble hydraulic fittings, but they are defined by tighter seals. They are also characterised by lower pressure requirements. In addition, they are available in multiple connector types and help to control or stop air flow pressure.
These components are often available in various sizes and can be configured to match multiple tubing and connector requirements. Being able to identify and distinguish the different types of vessels connected to the system is important because it could help to determine the type of fittings considered to be appropriate.
Technical data of Pneumatic Hose Fittings:
Specifications of Male Elbow Fast Twist Pneumatic Hose Fittings:
|
Model No
|
D
|
M
|
L1
|
L
|
L'
|
S
|
S1
|
|
BCSM-J-Z2.5-G
|
4
|
M5X0.8
|
4
|
17
|
20
|
10
|
8
|
|
M6X1
|
4
|
20
|
10
|
||||
|
BCSM-J-Z4-G
|
6
|
G1/8''
|
5
|
19
|
19
|
12
|
10
|
|
G1/4''
|
6
|
21
|
12
|
||||
|
G3/8''
|
7
|
23
|
14
|
||||
|
G1/2''
|
9
|
25
|
17
|
||||
|
BCSM-J-Z6-G
|
8
|
G1/8''
|
5
|
22
|
19
|
12
|
13
|
|
G1/4''
|
6
|
21
|
12
|
||||
|
G3/8''
|
7
|
23
|
14
|
||||
|
G1/2''
|
9
|
25
|
17
|
||||
|
BCSM-J-Z8-G
|
10
|
G1/8''
|
5
|
24
|
21
|
12
|
15
|
|
G1/4''
|
6
|
22
|
12
|
||||
|
G3/8''
|
7
|
24
|
14
|
||||
|
G1/2''
|
9
|
26
|
17
|
||||
|
BCSM-J-Z10-G
|
12
|
G1/8''
|
5
|
25
|
21
|
14
|
17
|
|
G1/4''
|
6
|
23
|
14
|
||||
|
G3/8''
|
7
|
25
|
14
|
||||
|
G1/2''
|
9
|
27
|
17
|
Product Video of BRANDO Fast Twist Pneumatic Hose Fittings:
List of All Quick Twist Brass Pneumatic Hose Fittings:
Choosing the Right Fittings for Your Pneumatic System:
Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.
Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
