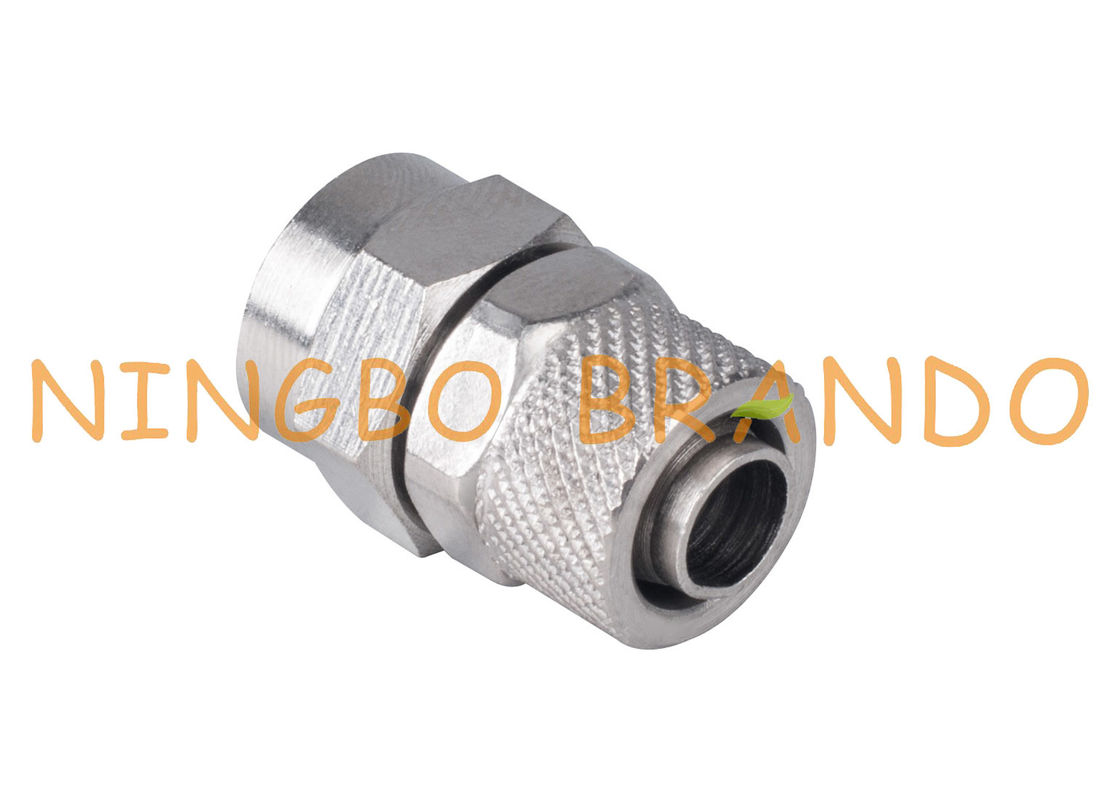

Fast Twist Pneumatic Fitting Female Straight 1/8'' 1/4'' 3/8'' 1/2''

Fast Twist Pneumatic Fitting Female Straight 1/8'' 1/4'' 3/8'' 1/2''

  • Fast Twist Pneumatic Fitting Female Straight 1/8'' 1/4'' 3/8'' 1/2''
Fast Twist Pneumatic Fitting Female Straight 1/8'' 1/4'' 3/8'' 1/2''
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: BCSM-B
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: PVC bag, then inner box, then carton, then pallet
Delivery Time: 1 week after payment
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 10000000pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Hose Fittings Type: Female Straight
Tube OD (Inch): 1/8", 1/4", 3/8", 1/2" Tube OD (Mertric): 4mm, 6mm, 8mm, 10mm, 12mm
Material: Brass Working Pressure Range: 0 To 0.8MPa
Working Temperature: 0 To +60℃ Connection: Fast Twist
High Light:

Fast Twist Pneumatic Fitting

,

Quick Twist Pneumatic Fitting

,

Pneumatic Straight Fittings

Fast Twist Pneumatic Fitting Female Straight 1/8'' 1/4'' 3/8'' 1/2''



Pneumatic Fitting is also referred to as Pneumatic Adaptors & Couplings or Air Fittings & Connectors, which is one type of Pneumatic accessories be used to connect pneumatic tube, pipe or hose and each connection requires specific fittings in pneumatic system. Pneumatic fitting system is a specialized technology that uses compressed air as a medium to drive and control machinery.



To perform different functions, there are vast number of types of Pneumatic Pipe Fittings, containing Adapter, Coupling, Union, Cap, Plug, Elbow, Tee, Cross, Reducer, Nipple, Valve and more. With the advantages of energy saving, pollution-free, high efficiency, low cost, safety and reliability, and simple structure, CNC Machining Pneumatic Fittings is widely used in various machinery and production lines. Pneumatic connectors, adaptors and fittings, as important pneumatic components, must have reliable performance, because low-quality pneumatic fittings can cause huge losses to the mechanical industry.



Technical data of Pneumatic Hose Fittings:

Material
Plastic / Brass
Threaded Connection
BSP
BSPP
Metric Thread
NPT
Working Pressure
0 to 0.8MPa
Connecting Tube
PA
PU
Connecting Diameter Tube
3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm (Outer Diameter)
Medium
Compressed Air
Working Temperature
~60℃



Specifications of Female Straight Fast Twist Pneumatic Hose Fittings:

                              Fast Twist Pneumatic Fitting Female Straight 1/8'' 1/4'' 3/8'' 1/2'' 0

Model No
D
M
L1
L
S
S1
BCSM-B-2.5
4
G1/8''
7
19
13
8
G1/4''
9
21
16
G3/8''
10
22
19
G1/2''
11
23
24
BCSM-B-4
6
G1/8''
7
20
13
10
G1/4''
9
22
16
G3/8''
10
23
19
G1/2''
11
24
24
BCSM-B-6
8
G1/8''
7
22
14
13
G1/4''
9
24
16
G3/8''
10
25
19
G1/2''
11
26
24
BCSM-B-8
10
G1/8''
7
24
16
15
G1/4''
9
26
16
G3/8''
10
27
19
G1/2''
11
28
24
BCSM-B-10
12
G1/8''
7
24
19
17
G1/4''
9
26
19
G3/8''
10
27
19
G1/2''
11
28
24


Product Video of BRANDO Fast Twist Pneumatic Hose Fittings:



List of All Quick Twist Brass Pneumatic Hose Fittings:

all list



Choosing the Right Fittings for Your Pneumatic System:



Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing
