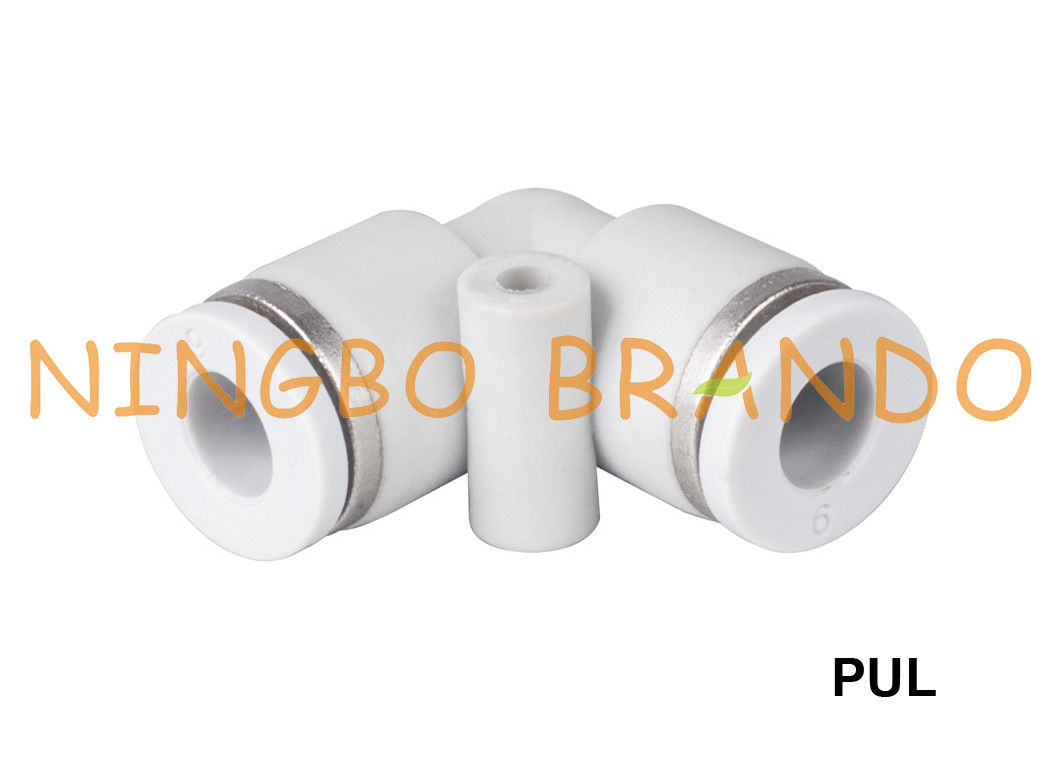

PUL Union Elbow Plastic Pneumatic Quick Fitting 1/8'' 1/4'' 3/8'' 1/2''

PUL Union Elbow Plastic Pneumatic Quick Fitting 1/8'' 1/4'' 3/8'' 1/2''

PUL Union Elbow Plastic Pneumatic Quick Fitting 1/8'' 1/4'' 3/8'' 1/2''
video
PUL Union Elbow Plastic Pneumatic Quick Fitting 1/8'' 1/4'' 3/8'' 1/2''
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: PUL
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: PVC bag, then inner box, then carton, then pallet
Delivery Time: 1 week after payment
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 10000000pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Hose Fittings Type: Union Elbow
Tube OD (Inch): 1/8", 1/4", 3/8", 1/2" Tube OD (Mertric): 4mm, 6mm, 8mm, 10mm, 12mm
Color: Blue, Black, Gray Material: Plastic
Working Pressure Range: 0 To 0.8MPa Working Temperature Range: 0 To +60℃
High Light:

1/4'' Pneumatic Quick Fitting

,

Plastic Pneumatic Quick Fitting

,

Pneumatic Quick Coupler

1/8'' PUL Union Elbow Pneumatic Quick Fitting Push To Connect


The shown Union elbow fittings connect two hoses and has a 90-degree bend to it. Each port has a push-in type connection. BRANDO’s push to connect fittings (or push-in fittings) are a quick and convenient method of connecting components in a pneumatic system. Designed for use with polyurethane, polyethylene, and nylon tubing, our composite push-in fittings are available in a variety of sizes to accommodate tubing ranging from 1/8 inch OD to 1/2 inch OD. Numerous configurations are available to meet your connection requirements.



Technical data of Pneumatic Hose Fittings:

Material
Plastic / Brass
Threaded Connection
BSP
BSPP
Metric Thread
NPT
Working Pressure
0 to 0.8MPa
Connecting Tube
PA
PU
Connecting Diameter Tube
3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm (Outer Diameter)
Medium
Compressed Air
Working Temperature
~60℃



Specifications of PUL Union Elbow Pneumatic Hose Fittings:

                                             PUL Union Elbow Plastic Pneumatic Quick Fitting 1/8'' 1/4'' 3/8'' 1/2'' 0

Model No
φD
φD1
L
PUL4
4
11
19
PUL6
6
13
20
PUL8
8
14
23
PUL10
10
18
27
PUL12
12
21
30


List of All Push To Connect Pneumatic Hose Fittings:

PL Male 90 Degree Elbow Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2'' 1



Choosing the Right Fittings for Your Pneumatic System:



Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing
