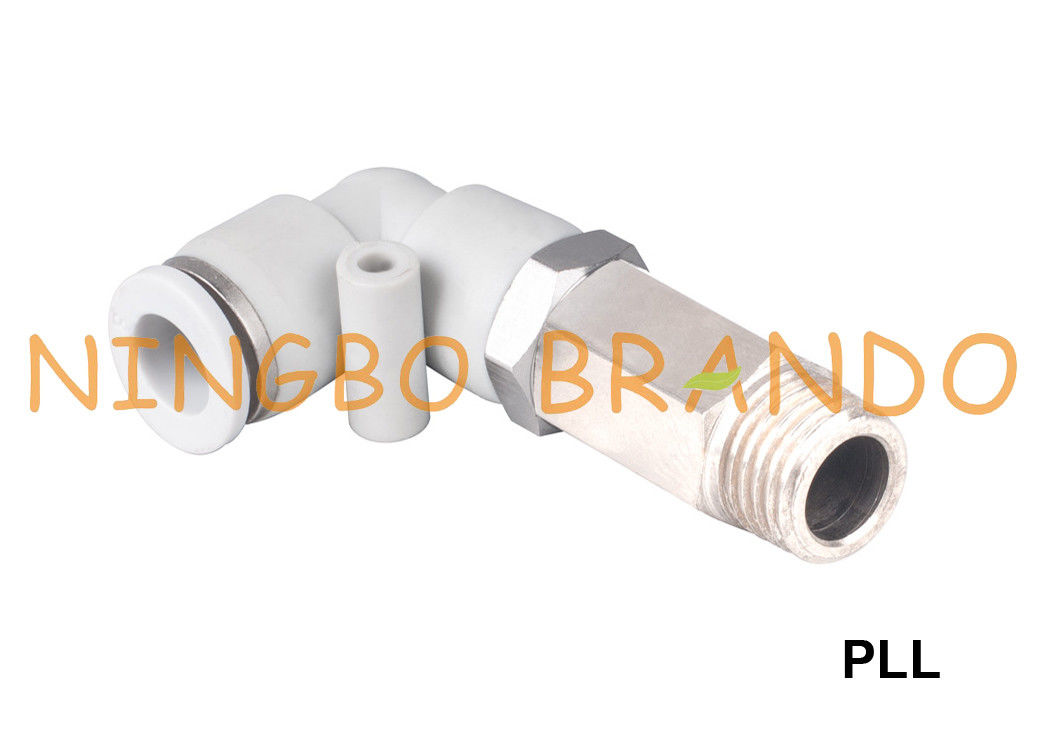

PLL Extended Male Elbow Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''

PLL Extended Male Elbow Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''

Elbow fittings connect hoses at 90 or 45-degrees to change the direction of air flow. They have a male or female threaded secondary port. Normal elbows have arms that are the same length, whereas long elbows will have one longer arm.

Pneumatic fittings are predominantly made from three different types of material; plastic, stainless steel and polymer. Pneumatic fittings are used to connect lengths of tubing, pipes and hose in pressurised pneumatic systems. They typically have tighter seals and lower pressure requirements compared to hydraulic fittings and can be commonly found in robotics within production lines as well as products we use within our daily lives such as vacuums and tyre pressure gauges.

Technical data of Pneumatic Hose Fittings:

Specifications of PLL Extended Male Elbow Pneumatic Hose Fittings:

List of All Push To Connect Pneumatic Hose Fittings:

Choosing the Right Fittings for Your Pneumatic System:

Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting
