| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 2W500-50 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Valve Series: | 2W Series | Ref. Number: | UNI-D Type UW-50 |
|---|---|---|---|
| Voltage: | AC110V AV220V DC24V | Action: | Pilot Diaphragm Drive |
| Port Size: | 2' Inch | Media: | Water Air Gas |
| Fluid Viscossity: | Below 20 CST | Power: | Solenoid |
| Body Material: | Brass | Diaphragm Material: | NBR, FKM And EPDM |
| High Light: | UW Series 2'' Brass Solenoid Valve,2'' Inch UW-50 Brass Solenoid Valve,Uni-D Type UW-50 |
||

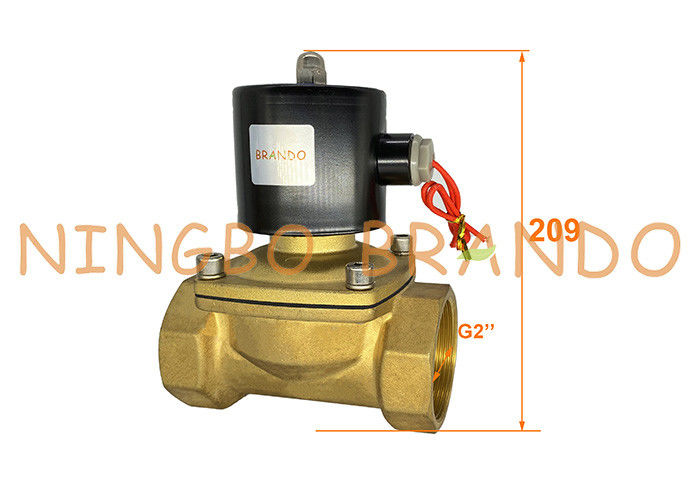

UNI-D Type UW Series 2'' Inch UW-50 2W500-50 Water Solenoid Valve
Technical Data of 2W & 2S Solenoid Valve:
|
2W Series
|
2W025-08
|
2W040-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
2S Series
|
2S025-08
|
2S040-10
|
2S160-15
|
2S200-20
|
2S250-25
|
2S350-35
|
2S400-40
|
2S500-50
|
|
Orifice Size
|
2.5
|
4
|
15
|
20
|
25
|
35
|
40
|
50
|
|
Port Size
|
1/4''
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
|
Medium
|
Water, Air, Gas, Oil
|
|||||||
|
Action
|
Direct Acting
|
Semi-Direct Diaphragm Operated
|
||||||
|
Function
|
2 Way, Normally Closed
|
|||||||
|
Fluid Viscosity
|
20 CST below
|
|||||||
|
Pressure
Range
|
0 to 1.0 Mpa
|
|||||||
|
Temp. Range
|
-5 to +85℃
|
|||||||
Main dimension of 2W & 2S Series Solenoid Valves:
|
2S Series
|
2W Series
|
A
|
B
|
C
|
D
|
E
|
|
2S025-06
|
2W025-06
|
64.5
|
30
|
75
|
43
|
1/8''
|
|
2S025-08
|
2W025-08
|
64.5
|
30
|
75
|
43
|
1/4''
|
|
2S040-10
|
2W040-10
|
70.6
|
32
|
82.4
|
53
|
3/8''
|
|
2S160-10
|
2W160-10
|
101.5
|
57
|
117
|
69
|
3/8''
|
|
2S160-15
|
2W160-15
|
101.5
|
57
|
117
|
69
|
1/2''
|
|
2S200-20
|
2W200-20
|
107
|
57
|
123.5
|
73
|
3/4''
|
|
2S250-25
|
2W250-25
|
111.5
|
73.5
|
134.5
|
99
|
1''
|
|
2S350-35
|
2W350-35
|
142
|
95
|
172
|
123
|
1-1/4''
|
|
2S400-40
|
2W400-40
|
142
|
95
|
172
|
123
|
1-1/2''
|
|
2S500-50
|
2W500-50
|
172
|
123
|
209
|
168
|
2''
|
UW Series is pilot diaphragm , normally closed, with 2'' Inch port .UW series can be operated directly without pressure.
