| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 2W250-25 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Valve Series: | 2W Series | Ref. Number: | UNI-D Type UW-25 |
|---|---|---|---|
| Voltage: | AC110V AV220V DC24V | Action: | Pilot Diaphragm Drive |
| Port Size: | 1'' | Media: | Water Air Gas |
| Fluid Viscossity: | Below 20 CST | Power: | Solenoid |
| Body Material: | Brass | Diaphragm Material: | NBR, FKM And EPDM |
| High Light: | 2W250-25 Brass Solenoid Valve,2W Series Brass Solenoid Valve,UW-25 Solenoid Valve |
||

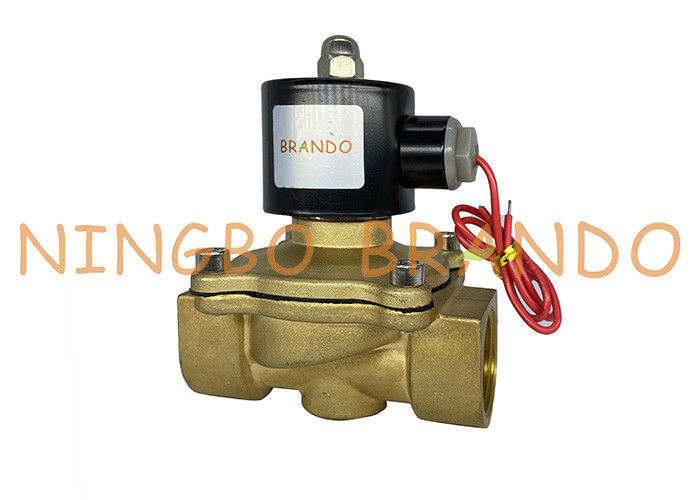

2W250-25 2W Series 1 inch Pilot Diaphragm Drive Brass Solenoid Valve
Technical Data of 2W & 2S Solenoid Valve:
|
2W Series
|
2W025-08
|
2W040-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
2S Series
|
2S025-08
|
2S040-10
|
2S160-15
|
2S200-20
|
2S250-25
|
2S350-35
|
2S400-40
|
2S500-50
|
|
Orifice Size
|
2.5
|
4
|
15
|
20
|
25
|
35
|
40
|
50
|
|
Port Size
|
1/4''
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
|
Medium
|
Water, Air, Gas, Oil
|
|||||||
|
Action
|
Direct Acting
|
Semi-Direct Diaphragm Operated
|
||||||
|
Function
|
2 Way, Normally Closed
|
|||||||
|
Fluid Viscosity
|
20 CST below
|
|||||||
|
Pressure
Range
|
0 to 1.0 Mpa
|
|||||||
|
Temp. Range
|
-5 to +85℃
|
|||||||
Main dimension of 2W & 2S Series Solenoid Valves:
|
2S Series
|
2W Series
|
A
|
B
|
C
|
D
|
E
|
|
2S025-06
|
2W025-06
|
64.5
|
30
|
75
|
43
|
1/8''
|
|
2S025-08
|
2W025-08
|
64.5
|
30
|
75
|
43
|
1/4''
|
|
2S040-10
|
2W040-10
|
70.6
|
32
|
82.4
|
53
|
3/8''
|
|
2S160-10
|
2W160-10
|
101.5
|
57
|
117
|
69
|
3/8''
|
|
2S160-15
|
2W160-15
|
101.5
|
57
|
117
|
69
|
1/2''
|
|
2S200-20
|
2W200-20
|
107
|
57
|
123.5
|
73
|
3/4''
|
|
2S250-25
|
2W250-25
|
111.5
|
73.5
|
134.5
|
99
|
1''
|
|
2S350-35
|
2W350-35
|
142
|
95
|
172
|
123
|
1-1/4''
|
|
2S400-40
|
2W400-40
|
142
|
95
|
172
|
123
|
1-1/2''
|
|
2S500-50
|
2W500-50
|
172
|
123
|
209
|
168
|
2''
|
Seal Material:
EPDM
EPDM rubber represents ethylene propylene diene monomer, and because EPDM has excellent heat resistance, its solenoid valve seals are recommended for use over NBR temperature ranges such as hot water and low pressure steam. The maximum service temperature of EPDM is about 120 c, and it has good tolerance to acid, base and salt.
VITON
VITON (FKM) is the brand name for the synthetic rubber and fluoropolymer elastomers in DuPont. It is usually used for o-rings and other molded or extruded products. They can be used in automobile and petroleum exploration applications because of their excellent heat resistance, which can make the working temperature close to 150 degrees Celsius.
