| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 5404-04 |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | $27 to $ 40 per pc |
| Packaging Details: | Individual Boxes, Carton, Pallet |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Power: | Solenoid | Seals Material: | NBR, FKM, PTFE |
|---|---|---|---|
| Port Size: | 1/4'' | Structure: | Plunger |
| Orifice Size: | DN 12mm | ACtion Type: | Direct Acting |
| Body Material: | Brass | Medium: | Compressed Air, Town Gas, Natural Gas, Water, Hydraulic Oil, Petrol |
| Operating Voltage: | 24V DC, 24V/50 Hz, 230V/50 Hz | Medium Temperature: | -10° To +100 °C |
| High Light: | 1/2'' 5404 Brass Solenoid Valve,High Pressure Brass Solenoid Valve,Servo-assisted Piston Valve |
||

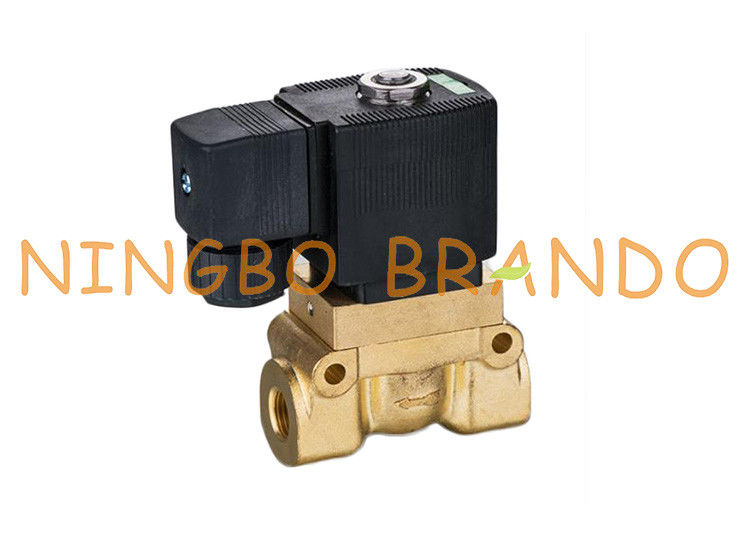

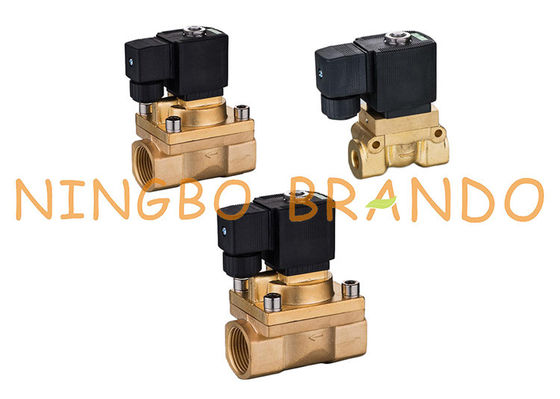

Type 1/2'' 5404 High Pressure Servo-assisted 2/2-way Piston Brass Solenoid Valve
The 5404 valve is a servo-assisted piston valve available in NC and NO versions. A minimum differential pressure is required for the valve switching function. The solenoid coils are moulded with high-quality epoxy resin. In combination with a plug to DIN EN 175301-803 Form A, the valves satisfy degree of protection IP65.
Servo-assisted piston valve with an orifice up to DN50
Explosion proof versions for Cat. 2
Suitable for gas and steam applications up to 160°C
Relief valves for compressors
For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.
Dimension:
Brando supply:
1. Replacement Solenoid Valve: Pneumatic Solenoid Valve; Refrigeration Solenoid Valve; Dust Collector Valve; RO Water Solenoid Valve
2. Repair Kits: Diaphragm(Goyen, ASCO, Mecair, Turbo, AUTEL, Norgren, Joil, SBFEC); Solenoid Coil; Solenoid Armature
3. Pulse Controller; Pneumatic Fitting; Connector
|
|
|
|
| 6213 Series | 5404 Series | 6013&6014 | ADK11 Series |
|
|
|
|
| UniBody Type | Split Type | 0927&0955 Series | 2W&2S Series |
Incorrect use of the solenoid valve Type 5404 can be dangerous to people, nearby equipment and the environment.
1. The device is designed to control, shut off and meter neutral media up to a viscosity of 21 mm²/s.
2. In areas at risk of explosion, only use devices approved for use in those areas. These devices are labeled with a separate Ex type label. For use in areas at risk of explosion, note the information provided on the separate Ex type label and the separate explosion-related operating instructions included in the scope of supply.
3. Provided the cable plug is connected and installed correctly, the device satisfies protection class IP65 in accordance with DIN EN 60529 / IEC 60529.
4. Use according to the permitted data, operating conditions and conditions of use specified in the contract documents and operating instructions.
5. Correct transportation, correct storage and installation and careful use and maintenance are essential for reliable and problem-free operation.
6. Use the device only as intended.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
