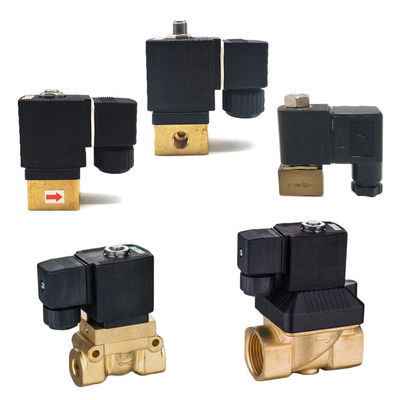

Name: 6013 Type 1/4'' NPT 2/2 Way Direct Acting Plunger Operated Brass Solenoid Valve
Brand: Brando
SKU: 6013
Rating: 4.7 (112 reviews)

Home Products Brass Solenoid Valve

6013 Type 1/4'' NPT 2/2 Way Direct Acting Plunger Operated Brass Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	6013

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Packaging Details:	Individual Boxes, Carton, Pallet
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Power:	Solenoid	Media:	Water
Port Size:	1/4''	Structure:	Plunger
Orifice Size:	DN 2.0mm	ACtion Type:	Direct Acting
Body Material:	Brass	Medium:	Compressed Air, Town Gas, Natural Gas, Water, Hydraulic Oil, Petrol
Operating Voltage:	24V DC, 24V/50 Hz, 230V/50 Hz	Medium Temperature:	-10° To +100 °C
High Light:	6013 Type Brass Solenoid Valve , Plunger Operated Brass Solenoid Valve , fluid control shut-off valve

6013 Type 1/4'' NPT 2/2 Way Direct Acting Plunger Operated Brass Solenoid Valve

Valve 6013 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application.

• Direct-acting and compact valve up to diameter of DN 6.0
• Vibration-proof, bolted coil system
• Increased leak-tightness with welded plunger guide tube
• Explosion proof versions
• Energy-saving pulse versions

Technical Data:

Orifice (mm)	Port Size (Inch)	Value water (m³/h)	Opening response times (ms)	Closed response times (ms)
2.0	G1/8''	0.12	20	30
2.0	G1/4''	0.12	20	30
2.5	G1/8''	0.16	20	30
2.5	G1/4''	0.16	20	30
3.0	G1/8''	0.23	20	30
3.0	G1/4''	0.23	20	30
3.0	G3/8''	0.23	20	30
4.0	G1/4''	0.30	20	30
4.0	G3/8''	0.30	20	30
6.0	G1/4''	0.55	20	30
6.0	G3/8''	0.55	20	30

Main Dimension:

6013 Type 1/4'' NPT 2/2 Way Direct Acting Plunger Operated Brass Solenoid Valve 0

Brando supply:
1. Replacement Solenoid Valve: Pneumatic Solenoid Valve; Refrigeration Solenoid Valve; Dust Collector Valve; RO Water Solenoid Valve
2. Repair Kits: Diaphragm(Goyen, ASCO, Mecair, Turbo, AUTEL, Norgren, Joil, SBFEC); Solenoid Coil; Solenoid Armature
3. Pulse Controller; Pneumatic Fitting; Connector


6213 Series	5404 Series	6013&6014	ADK11 Series

UniBody Type	Split Type	0927&0955 Series	2W&2S Series
