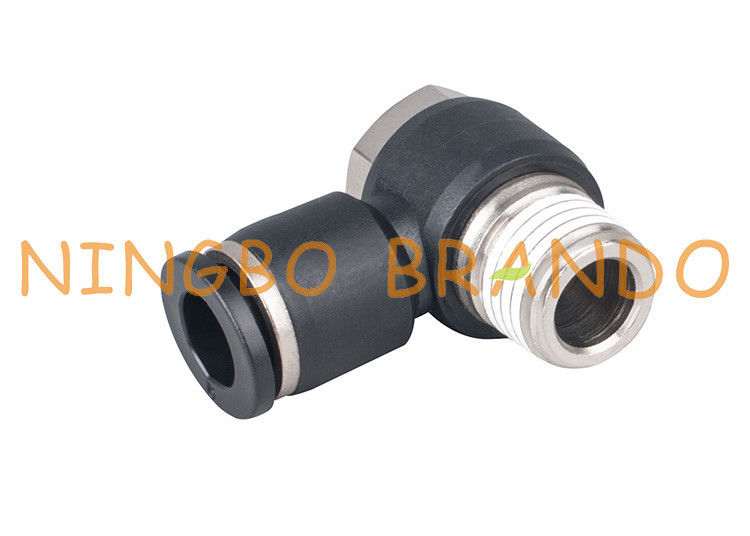

1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings

1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings

1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings
video
1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: PH
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: PVC bag, then inner box, then carton, then pallet
Delivery Time: 1 week after payment
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 10000000pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Hose Fittings Material: Plastic
Threaded Connection: G, NPT Wokring Pressure: 0-0.8MPa
Connecting Tube Material: PA, PU Connecting Tube OD: 3, 4, 6, 8, 10, 12, 16
Medium: Compressed Air Working Temperature: 0-60℃
High Light:

1/4'' Pneumatic Hose Fittings

,

8mm Pneumatic Hose Fittings

,

Pneumatic Banjo Fittings

1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings



Selection criteria
Pneumatic fittings should be incorporated into a system that requires connection hoses together. It is advised to keep things simple to ensure no significant pressure drop is induced. For example, don’t use a 90-degree elbow if a straight fitting is possible because the elbow will create an unnecessary pressure loss. Other considerations include:



1. Operating pressure: Most fittings have a maximum operating pressure of 1.0MPa, but the pressure should be kept below this level to ensure safe operation.



2. Operating temperature: Fittings contain o-rings and plastic parts that may become ineffective if using hot air or if the system is placed in a hot environment.



3. Special environments: medical and food industries may require fittings with a special rating or material classification.



Dimension & Order Code of Pneumatic Hose Fittings:



Extended Male Elbow Fitting:

Picture Dimension Part No. R D D1 L1 L L' S
1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings 0 1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings 1
PLL4 M5X0.8 4 11 6 19 38 10
M6X1 4 11 6 19 38 10
R1/8" 4 11 8 19 30 12
R1/4" 4 11 9 19 41 13
R3/8" 4 11 10 19 43 17
R1/2" 4 11 11 19 44 21
PLL6 M5X0.8 6 13 6 20 41 12
M6X1 6 13 6 20 41 12
R1/8" 6 13 8 20 43 12
R1/4" 6 13 9 20 44 13
R3/8" 6 13 10 20 46 17
R1/2" 6 13 11 20 47 21
PLL8 R1/8" 8 14 8 23 47 14
R1/4" 8 14 9 23 48 14
R3/8" 8 14 10 23 50 17
R1/2" 8 14 11 23 51 21
PLL10 R1/8" 10 18 8 27 56 27
R1/4" 10 18 9 27 57 17
R3/8" 10 18 10 27 58 17
R1/2" 10 18 11 27 59 21
PLL12 R1/8" 12 21 8 30 56 19
R1/4" 12 21 9 30 57 19
R3/8" 12 21 10 30 57 19
R1/2" 12 21 11 30 60 21



Male Banjo Fitting:

Picture Dimension Part No. R D D1 L1 L L' S
1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings 2 1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings 3
PH4 M5X0.8 4 11 6 19 38 10
M6X1 4 11 6 19 38 10
R1/8" 4 11 8 19 30 12
R1/4" 4 11 9 19 41 13
PH6 M5X0.8 6 13 6 20 41 12
M6X1 6 13 6 20 41 12
R1/8" 6 13 8 20 43 12
R1/4" 6 13 9 20 44 13
R3/8" 6 13 10 20 46 17
PH8 R1/8" 8 14 8 23 47 14
R1/4" 8 14 9 23 48 14
R3/8" 8 14 10 23 50 17
R1/2" 8 14 11 23 51 21
PH10 R1/8" 10 18 8 27 56 27
R1/4" 10 18 9 27 57 17
R3/8" 10 18 10 27 58 17
R1/2" 10 18 11 27 59 21
PH12 R1/4'' 12 21 10 33 28 15
R3/8'' 12 21 12 35 34 19
R1/2'' 12 21 13 37 37 24



Rhabditiform of Through Fitting:

Picture Dimension Part No. D D1 L1 L G
1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings 4 1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings 5
PGJ4 4 11 17 35 4
4 13 18 36 6
PGJ6 6 13 20 38 4
6 13 18 36 6
6 13 21 38 8
PGJ8 8 15 20 42 4
8 15 21 42 6
8 15 21 41 8
8 17 23 43 10
PGJ10 10 15 20 42 4
10 15 21 45 6
10 15 24 47 8
10 17 23 45 10
10 21 24 46 12
PGJ12 12 21 20 44 6
12 24 20 49 8
12 26 20 50 10
12 24 21 47 12



List of All Plastic Pneumatic Hose Fittings:

1/4'' 8mm Male Banjo Push In To Quick Connect Pneumatic Hose Fittings 6



FAQ:



1. How to install pneumatic push-in fittings?
The hose is easy to install by pushing it into the release ring-end of the fitting until it stops. The internal lock claws will automatically clamp around the hose for an immediate and secure connection.



2. How to uninstall pneumatic push-in fittings?
Push the release ring inward towards the fitting to disengage the lock claws and pull back on the tubing to remove it. The opposite end may be another push to connect fitting, threaded male, threaded female or a threaded male with an inner hex-type connection. The threaded connections usually have a pre-applied thread lock coating.
