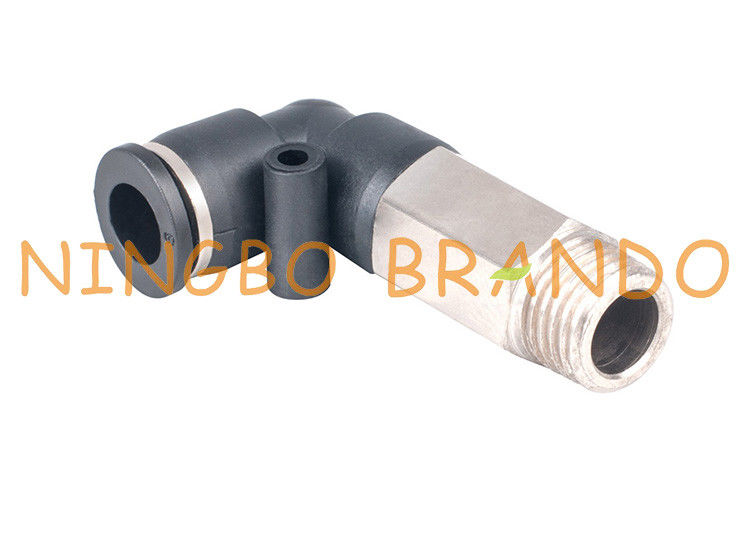

1/2'' 12mm Push To Connect Extended Male Elbow Pneumatic Hose Fittings

1/2'' 12mm Push To Connect Extended Male Elbow Pneumatic Hose Fittings

Brando's push in fittings (or push to connect fittings) provide easy connection and disconnection tube without causing damage to the tube. Composite push in fittings become essential parts in pneumatic and fluid system. Brando's push in fittings are available in a variety of types, moulds, sizes and thread types to satisfy various metric and inch tube demands. Our composite push in fittings could accommodate both metric size tubing and inch size tubing that are made from polyurethane, polyethylene and nylon. Composite push-in fittings are ideal for general pneumatic industrial applications.

Brando's Push-In Fitting Features:
1. Optional shapes of Release Sleeve: As a manufacturer, Brando can provide Oval and Round Release Sleeve
2. Multiple colors of Release Sleeve: Blue, Black, Orange, Red, Orange, Gray
3. Accommodate kinds of connection thread type: R (PT, BSPT), G (BSPP), NPT, UNF, UNC, Metric
4. Accommodate metric size tubing O.D: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm
5. Accommodate inch size tubing O.D: 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8"

Dimension & Order Code of Pneumatic Hose Fittings:

Extended Male Elbow Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PLL4	M5X0.8	4	11	6	19	38	10
			M6X1	4	11	6	19	38	10
			R1/8"	4	11	8	19	30	12
			R1/4"	4	11	9	19	41	13
			R3/8"	4	11	10	19	43	17
			R1/2"	4	11	11	19	44	21
		PLL6	M5X0.8	6	13	6	20	41	12
			M6X1	6	13	6	20	41	12
			R1/8"	6	13	8	20	43	12
			R1/4"	6	13	9	20	44	13
			R3/8"	6	13	10	20	46	17
			R1/2"	6	13	11	20	47	21
		PLL8	R1/8"	8	14	8	23	47	14
			R1/4"	8	14	9	23	48	14
			R3/8"	8	14	10	23	50	17
			R1/2"	8	14	11	23	51	21
		PLL10	R1/8"	10	18	8	27	56	27
			R1/4"	10	18	9	27	57	17
			R3/8"	10	18	10	27	58	17
			R1/2"	10	18	11	27	59	21
		PLL12	R1/8"	12	21	8	30	56	19
			R1/4"	12	21	9	30	57	19
			R3/8"	12	21	10	30	57	19
			R1/2"	12	21	11	30	60	21

Male Banjo Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PH4	M5X0.8	4	11	6	19	38	10
			M6X1	4	11	6	19	38	10
			R1/8"	4	11	8	19	30	12
			R1/4"	4	11	9	19	41	13
		PH6	M5X0.8	6	13	6	20	41	12
			M6X1	6	13	6	20	41	12
			R1/8"	6	13	8	20	43	12
			R1/4"	6	13	9	20	44	13
			R3/8"	6	13	10	20	46	17
		PH8	R1/8"	8	14	8	23	47	14
			R1/4"	8	14	9	23	48	14
			R3/8"	8	14	10	23	50	17
			R1/2"	8	14	11	23	51	21
		PH10	R1/8"	10	18	8	27	56	27
			R1/4"	10	18	9	27	57	17
			R3/8"	10	18	10	27	58	17
			R1/2"	10	18	11	27	59	21
		PH12	R1/4''	12	21	10	33	28	15
			R3/8''	12	21	12	35	34	19
			R1/2''	12	21	13	37	37	24

Rhabditiform of Through Fitting:

Picture	Dimension	Part No.	D	D1	L1	L	G
		PGJ4	4	11	17	35	4
			4	13	18	36	6
		PGJ6	6	13	20	38	4
			6	13	18	36	6
			6	13	21	38	8
		PGJ8	8	15	20	42	4
			8	15	21	42	6
			8	15	21	41	8
			8	17	23	43	10
		PGJ10	10	15	20	42	4
			10	15	21	45	6
			10	15	24	47	8
			10	17	23	45	10
			10	21	24	46	12
		PGJ12	12	21	20	44	6
			12	24	20	49	8
			12	26	20	50	10
			12	24	21	47	12

List of All Plastic Pneumatic Hose Fittings:

FAQ:

1. How to install pneumatic push-in fittings?
The hose is easy to install by pushing it into the release ring-end of the fitting until it stops. The internal lock claws will automatically clamp around the hose for an immediate and secure connection.

2. How to uninstall pneumatic push-in fittings?
Push the release ring inward towards the fitting to disengage the lock claws and pull back on the tubing to remove it. The opposite end may be another push to connect fitting, threaded male, threaded female or a threaded male with an inner hex-type connection. The threaded connections usually have a pre-applied thread lock coating.
