Product Name: | Pneumatic Hose Fittings | Material: | Plastic |
---|---|---|---|
Threaded Connection: | G, NPT | Wokring Pressure: | 0-0.8MPa |
Connecting Tube Material: | PA, PU | Connecting Tube OD: | 3, 4, 6, 8, 10, 12, 16 |
Medium: | Compressed Air | Working Temperature: | 0-60℃ |
Highlight: | 1/4'' Pneumatic Hose Fittings,8mm Pneumatic Hose Fittings,Pneumatic Hose Coupling |

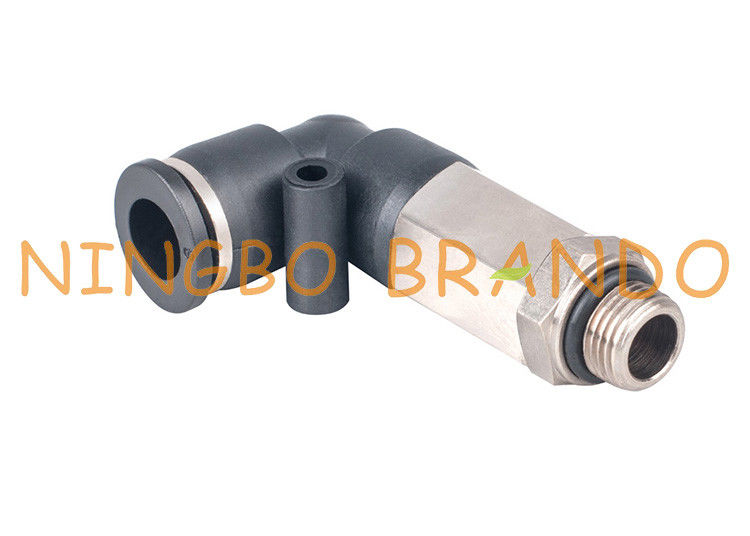

1/4'' 8mm Extended Male Elbow Quick Connect Pneumatic Hose Fittings
Brando push in fittings (pneumatic fittings, push to connect fittings, one touch fittings) are made of nickel plated brass (thread) and PBT (body), stainless steel tube gripping claws, collars and POM release sleeves offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing. To assemble the tube, simply insert the tube into the fitting until it bottoms. To release the tube, press the release sleeve ring and the tube can be easily pulled out. Push in fittings (pneumatic push to connect fittings, one touch tube fittings) come in a variety of types, models and sizes to satisfy various tubes demands and provide essential links between components in pneumatic systems. Threaded Elbow and Tee fitting bodies can be rotated after installation to allow for variations in piping direction. Accommodate metric tubing O.D ranging from 4 mm to 16 mm, inch tube ranging from 1/8" to 1/2"; thread sizes range is from R, PT, BSPT 1/8 to R, PT, BSPT 1/2 and metric thread from M5 to M20. Shape of Release Sleeve: Oval and Round. Colors of Release Sleeve: Blue, Red, Black, Grey or Custom Color.
* Perfect air tightness thanks to the lip seal
* Safe coupling on any type of tube
* Perfect coupling even in the presence of pipes with diagonal cuts
* Made with virgin material
Dimension & Order Code of Pneumatic Hose Fittings:
Extended Male Elbow Fitting:
Picture | Dimension | Part No. | R | D | D1 | L1 | L | L' | S |
![]() |
![]() |
||||||||
PLL4 | M5X0.8 | 4 | 11 | 6 | 19 | 38 | 10 | ||
M6X1 | 4 | 11 | 6 | 19 | 38 | 10 | |||
R1/8" | 4 | 11 | 8 | 19 | 30 | 12 | |||
R1/4" | 4 | 11 | 9 | 19 | 41 | 13 | |||
R3/8" | 4 | 11 | 10 | 19 | 43 | 17 | |||
R1/2" | 4 | 11 | 11 | 19 | 44 | 21 | |||
PLL6 | M5X0.8 | 6 | 13 | 6 | 20 | 41 | 12 | ||
M6X1 | 6 | 13 | 6 | 20 | 41 | 12 | |||
R1/8" | 6 | 13 | 8 | 20 | 43 | 12 | |||
R1/4" | 6 | 13 | 9 | 20 | 44 | 13 | |||
R3/8" | 6 | 13 | 10 | 20 | 46 | 17 | |||
R1/2" | 6 | 13 | 11 | 20 | 47 | 21 | |||
PLL8 | R1/8" | 8 | 14 | 8 | 23 | 47 | 14 | ||
R1/4" | 8 | 14 | 9 | 23 | 48 | 14 | |||
R3/8" | 8 | 14 | 10 | 23 | 50 | 17 | |||
R1/2" | 8 | 14 | 11 | 23 | 51 | 21 | |||
PLL10 | R1/8" | 10 | 18 | 8 | 27 | 56 | 27 | ||
R1/4" | 10 | 18 | 9 | 27 | 57 | 17 | |||
R3/8" | 10 | 18 | 10 | 27 | 58 | 17 | |||
R1/2" | 10 | 18 | 11 | 27 | 59 | 21 | |||
PLL12 | R1/8" | 12 | 21 | 8 | 30 | 56 | 19 | ||
R1/4" | 12 | 21 | 9 | 30 | 57 | 19 | |||
R3/8" | 12 | 21 | 10 | 30 | 57 | 19 | |||
R1/2" | 12 | 21 | 11 | 30 | 60 | 21 |
Male Banjo Fitting:
Picture | Dimension | Part No. | R | D | D1 | L1 | L | L' | S |
![]() |
![]() |
||||||||
PH4 | M5X0.8 | 4 | 11 | 6 | 19 | 38 | 10 | ||
M6X1 | 4 | 11 | 6 | 19 | 38 | 10 | |||
R1/8" | 4 | 11 | 8 | 19 | 30 | 12 | |||
R1/4" | 4 | 11 | 9 | 19 | 41 | 13 | |||
PH6 | M5X0.8 | 6 | 13 | 6 | 20 | 41 | 12 | ||
M6X1 | 6 | 13 | 6 | 20 | 41 | 12 | |||
R1/8" | 6 | 13 | 8 | 20 | 43 | 12 | |||
R1/4" | 6 | 13 | 9 | 20 | 44 | 13 | |||
R3/8" | 6 | 13 | 10 | 20 | 46 | 17 | |||
PH8 | R1/8" | 8 | 14 | 8 | 23 | 47 | 14 | ||
R1/4" | 8 | 14 | 9 | 23 | 48 | 14 | |||
R3/8" | 8 | 14 | 10 | 23 | 50 | 17 | |||
R1/2" | 8 | 14 | 11 | 23 | 51 | 21 | |||
PH10 | R1/8" | 10 | 18 | 8 | 27 | 56 | 27 | ||
R1/4" | 10 | 18 | 9 | 27 | 57 | 17 | |||
R3/8" | 10 | 18 | 10 | 27 | 58 | 17 | |||
R1/2" | 10 | 18 | 11 | 27 | 59 | 21 | |||
PH12 | R1/4'' | 12 | 21 | 10 | 33 | 28 | 15 | ||
R3/8'' | 12 | 21 | 12 | 35 | 34 | 19 | |||
R1/2'' | 12 | 21 | 13 | 37 | 37 | 24 |
Rhabditiform of Through Fitting:
Picture | Dimension | Part No. | D | D1 | L1 | L | G |
![]() |
![]() |
||||||
PGJ4 | 4 | 11 | 17 | 35 | 4 | ||
4 | 13 | 18 | 36 | 6 | |||
PGJ6 | 6 | 13 | 20 | 38 | 4 | ||
6 | 13 | 18 | 36 | 6 | |||
6 | 13 | 21 | 38 | 8 | |||
PGJ8 | 8 | 15 | 20 | 42 | 4 | ||
8 | 15 | 21 | 42 | 6 | |||
8 | 15 | 21 | 41 | 8 | |||
8 | 17 | 23 | 43 | 10 | |||
PGJ10 | 10 | 15 | 20 | 42 | 4 | ||
10 | 15 | 21 | 45 | 6 | |||
10 | 15 | 24 | 47 | 8 | |||
10 | 17 | 23 | 45 | 10 | |||
10 | 21 | 24 | 46 | 12 | |||
PGJ12 | 12 | 21 | 20 | 44 | 6 | ||
12 | 24 | 20 | 49 | 8 | |||
12 | 26 | 20 | 50 | 10 | |||
12 | 24 | 21 | 47 | 12 |
List of All Plastic Pneumatic Hose Fittings:
Choosing the Right Fittings for Your Pneumatic System:
Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.
Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
