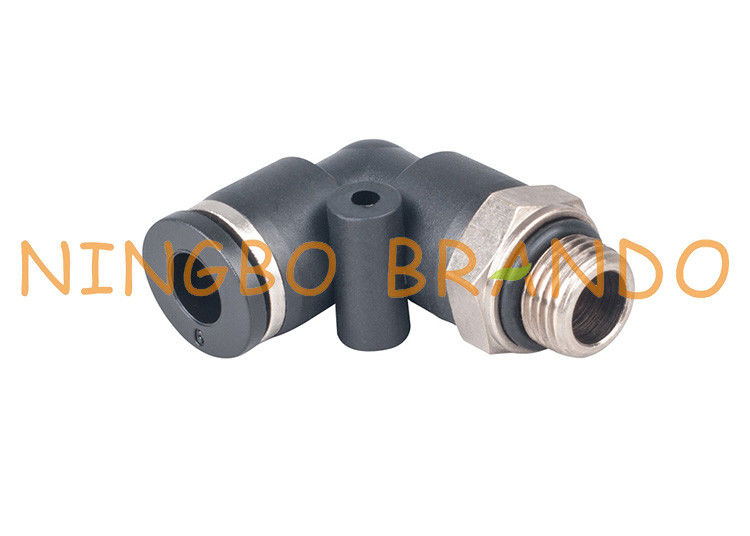

1/8'' 6mm Male Elbow Push In Quick Connect Pneumatic Hose Fittings

1/8'' 6mm Male Elbow Push In Quick Connect Pneumatic Hose Fittings

Pneumatic push-in fittings, also called push to connect fittings, provide a leak-free means of easily connecting hoses in your compressed air system. Fittings can have between 1-6 inlet/outlet ports or may have additional functionality such as an integrated pressure gauge or silencer.

Product Features:

1. High Strength, Wear Resistance, Corrosion Resistance, High Density, Not Easy to Burst.

2. The Product is Sturdy and Durable and Has a Long Service Life.

3. Easy Installation and Disassembly, Good Sealing Performance.

4. It Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.

5. You Can Easily Insert or Pull out the Trachea Without Any Tools

6. The Clip of Connecting Air Pipe is Made of Strong Plastic Material, Which is Not Easy to Fall off After Connection Adopt Sealing Component, Keep Good Sealing, Not Easy to Leak.

7.Freely Change Pipeline Direction After Installation, Easy to Insert or Pull Trachea Manually Without Tools.

Dimension & Order Code of Pneumatic Hose Fittings:

Straight Male Fitting:

Picture	Dimension	Part No.	R	D	L1	L	S	Inner Hex
		PC4	M5X0.8	4	6	22	10	3
			M6X1	4	6	22	10	3
			R1/8"	4	8	21	12	3
			R1/4"	4	9	18	13	3
			R3/8"	4	10	20	17	3
			R1/2"	4	11	22	21	3
		PC6	M5X0.8	6	6	23	12	4
			M6X1	6	6	23	12	4
			R1/8"	6	8	22	12	4
			R1/4"	6	9	22	13	4
			R3/8"	6	10	21	17	4
			R1/2"	6	11	23	21	4
		PC8	R1/8"	8	8	27	14	4
			R1/4"	8	9	24	14	6
			R3/8"	8	10	22	17	6
			R1/2"	8	11	23	21	6
		PC10	R1/8"	10	8	29	27	4
			R1/4"	10	9	30	17	6
			R3/8"	10	10	28	17	8
			R1/2"	10	11	24	21	8
		PC12	R1/8"	12	8	31	19	4
			R1/2"	12	9	32	19	6
			R3/8"	12	10	29	19	10
			R1/2"	12	11	31	21	10

Elbow Push Male Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PL4	M5X0.8	4	11	6	19	25	10
			M6X1	4	11	6	19	25	10
			R1/8"	4	11	8	19	27	12
			R1/4"	4	11	9	19	28	13
			R3/8"	4	11	10	19	30	17
			R1/2"	4	11	11	19	31	21
		PL6	M5X0.8	6	13	6	20	26	12
			M6X1	6	13	6	20	26	12
			R1/8"	6	13	8	20	28	12
			R1/4"	6	13	9	20	29	13
			R3/8"	6	13	10	20	31	17
			R1/2"	6	13	11	20	32	21
		PL8	R1/8"	8	14	8	23	31	14
			R1/4"	8	14	9	23	32	14
			R3/8"	8	14	10	23	33	17
			R1/2"	8	14	11	23	35	21
		PL10	R1/8"	10	18	8	27	35	27
			R1/4"	10	18	9	27	36	17
			R3/8"	10	18	10	27	37	17
			R1/2"	10	18	11	27	39	21
		PL12	R1/8"	12	21	8	30	37	19
			R1/2"	12	21	9	30	38	19
			R3/8"	12	21	10	30	39	19
			R1/2"	12	21	11	30	41	21

Branch Tee Male Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PT4	M5X0.8	4	11	6	19	25	10
			M6X1	4	11	6	19	25	10
			R1/8"	4	11	8	19	27	12
			R1/4"	4	11	9	19	28	13
			R3/8"	4	11	10	19	30	17
			R1/2"	4	11	11	19	31	21
		PT6	M5X0.8	6	13	6	20	26	12
			M6X1	6	13	6	20	26	12
			R1/8"	6	13	8	20	28	12
			R1/4"	6	13	9	20	29	13
			R3/8"	6	13	10	20	31	17
			R1/2"	6	13	11	20	32	21
		PT8	R1/8"	8	14	8	23	31	14
			R1/4"	8	14	9	23	32	14
			R3/8"	8	14	10	23	33	17
			R1/2"	8	14	11	23	35	21
		PT10	R1/8"	10	18	8	27	35	27
			R1/4"	10	18	9	27	36	17
			R3/8"	10	18	10	27	37	17
			R1/2"	10	18	11	27	39	21
		PT12	R1/8"	12	21	8	30	37	19
			R1/2"	12	21	9	30	38	19
			R3/8"	12	21	10	30	39	19
			R1/2"	12	21	11	30	41	21

List of All Plastic Pneumatic Hose Fittings:

Choosing the Right Fittings for Your Pneumatic System:

Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
