Product Name: | Pneumatic Hose Fittings | Material: | Plastic / Brass |
---|---|---|---|
Threaded Connection: | G, NPT | Wokring Pressure: | 0-0.8MPa |
Connecting Tube Material: | PA, PU | Connecting Tube OD: | 3, 4, 6, 8, 10, 12, 16 |
Medium: | Compressed Air | Working Temperature: | 0-60℃ |
Highlight: | 1/4'' Pneumatic Hose Fittings,8mm Pneumatic Hose Fittings,Push To Connect Pneumatic Fittings |

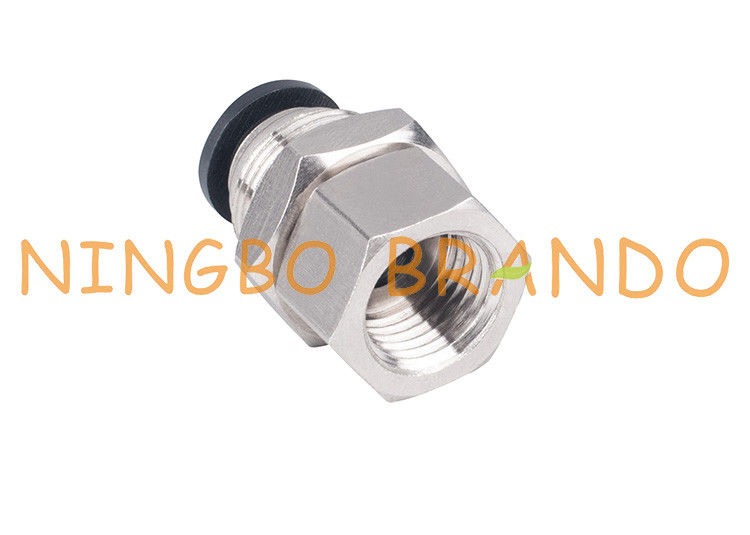

1/4'' 8mm Quick Connect Bulkhead Female Straight Pneumatic Hose Fittings
Brando's push to connect pneumatic hose fittings (or push-in pneumatic hose fittings) are a quick and convenient method of connecting components in a pneumatic system. Designed for use with polyurethane, polyethylene, and nylon tubing, our composite push-in fittings are available in a variety of sizes to accommodate tubing ranging from 1/8 OD to 1/2 OD. Numerous configurations are available to meet your connection requirements.
Product Features:
1. High Strength, Wear Resistance, Corrosion Resistance, High Density, Not Easy to Burst.
2. The Product is Sturdy and Durable and Has a Long Service Life.
3. Easy Installation and Disassembly, Good Sealing Performance.
4. It Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.
5. You Can Easily Insert or Pull out the Trachea Without Any Tools
6. The Clip of Connecting Air Pipe is Made of Strong Plastic Material, Which is Not Easy to Fall off After Connection Adopt Sealing Component, Keep Good Sealing, Not Easy to Leak.
7. Freely Change Pipeline Direction After Installation, Easy to Insert or Pull Trachea Manually Without Tools.
Dimension & Order Code of Pneumatic Hose Fittings:
Straight Male Fitting:
Picture | Dimension | Part No. | R | D | L1 | L | S | Inner Hex |
![]() |
![]() |
|||||||
PC4 | M5X0.8 | 4 | 6 | 22 | 10 | 3 | ||
M6X1 | 4 | 6 | 22 | 10 | 3 | |||
R1/8" | 4 | 8 | 21 | 12 | 3 | |||
R1/4" | 4 | 9 | 18 | 13 | 3 | |||
R3/8" | 4 | 10 | 20 | 17 | 3 | |||
R1/2" | 4 | 11 | 22 | 21 | 3 | |||
PC6 | M5X0.8 | 6 | 6 | 23 | 12 | 4 | ||
M6X1 | 6 | 6 | 23 | 12 | 4 | |||
R1/8" | 6 | 8 | 22 | 12 | 4 | |||
R1/4" | 6 | 9 | 22 | 13 | 4 | |||
R3/8" | 6 | 10 | 21 | 17 | 4 | |||
R1/2" | 6 | 11 | 23 | 21 | 4 | |||
PC8 | R1/8" | 8 | 8 | 27 | 14 | 4 | ||
R1/4" | 8 | 9 | 24 | 14 | 6 | |||
R3/8" | 8 | 10 | 22 | 17 | 6 | |||
R1/2" | 8 | 11 | 23 | 21 | 6 | |||
PC10 | R1/8" | 10 | 8 | 29 | 27 | 4 | ||
R1/4" | 10 | 9 | 30 | 17 | 6 | |||
R3/8" | 10 | 10 | 28 | 17 | 8 | |||
R1/2" | 10 | 11 | 24 | 21 | 8 | |||
PC12 | R1/8" | 12 | 8 | 31 | 19 | 4 | ||
R1/2" | 12 | 9 | 32 | 19 | 6 | |||
R3/8" | 12 | 10 | 29 | 19 | 10 | |||
R1/2" | 12 | 11 | 31 | 21 | 10 |
Elbow Push Male Fitting:
Picture | Dimension | Part No. | R | D | D1 | L1 | L | L' | S |
![]() |
![]() |
||||||||
PL4 | M5X0.8 | 4 | 11 | 6 | 19 | 25 | 10 | ||
M6X1 | 4 | 11 | 6 | 19 | 25 | 10 | |||
R1/8" | 4 | 11 | 8 | 19 | 27 | 12 | |||
R1/4" | 4 | 11 | 9 | 19 | 28 | 13 | |||
R3/8" | 4 | 11 | 10 | 19 | 30 | 17 | |||
R1/2" | 4 | 11 | 11 | 19 | 31 | 21 | |||
PL6 | M5X0.8 | 6 | 13 | 6 | 20 | 26 | 12 | ||
M6X1 | 6 | 13 | 6 | 20 | 26 | 12 | |||
R1/8" | 6 | 13 | 8 | 20 | 28 | 12 | |||
R1/4" | 6 | 13 | 9 | 20 | 29 | 13 | |||
R3/8" | 6 | 13 | 10 | 20 | 31 | 17 | |||
R1/2" | 6 | 13 | 11 | 20 | 32 | 21 | |||
PL8 | R1/8" | 8 | 14 | 8 | 23 | 31 | 14 | ||
R1/4" | 8 | 14 | 9 | 23 | 32 | 14 | |||
R3/8" | 8 | 14 | 10 | 23 | 33 | 17 | |||
R1/2" | 8 | 14 | 11 | 23 | 35 | 21 | |||
PL10 | R1/8" | 10 | 18 | 8 | 27 | 35 | 27 | ||
R1/4" | 10 | 18 | 9 | 27 | 36 | 17 | |||
R3/8" | 10 | 18 | 10 | 27 | 37 | 17 | |||
R1/2" | 10 | 18 | 11 | 27 | 39 | 21 | |||
PL12 | R1/8" | 12 | 21 | 8 | 30 | 37 | 19 | ||
R1/2" | 12 | 21 | 9 | 30 | 38 | 19 | |||
R3/8" | 12 | 21 | 10 | 30 | 39 | 19 | |||
R1/2" | 12 | 21 | 11 | 30 | 41 | 21 |
Branch Tee Male Fitting:
Picture | Dimension | Part No. | R | D | D1 | L1 | L | L' | S |
![]() |
![]() |
||||||||
PT4 | M5X0.8 | 4 | 11 | 6 | 19 | 25 | 10 | ||
M6X1 | 4 | 11 | 6 | 19 | 25 | 10 | |||
R1/8" | 4 | 11 | 8 | 19 | 27 | 12 | |||
R1/4" | 4 | 11 | 9 | 19 | 28 | 13 | |||
R3/8" | 4 | 11 | 10 | 19 | 30 | 17 | |||
R1/2" | 4 | 11 | 11 | 19 | 31 | 21 | |||
PT6 | M5X0.8 | 6 | 13 | 6 | 20 | 26 | 12 | ||
M6X1 | 6 | 13 | 6 | 20 | 26 | 12 | |||
R1/8" | 6 | 13 | 8 | 20 | 28 | 12 | |||
R1/4" | 6 | 13 | 9 | 20 | 29 | 13 | |||
R3/8" | 6 | 13 | 10 | 20 | 31 | 17 | |||
R1/2" | 6 | 13 | 11 | 20 | 32 | 21 | |||
PT8 | R1/8" | 8 | 14 | 8 | 23 | 31 | 14 | ||
R1/4" | 8 | 14 | 9 | 23 | 32 | 14 | |||
R3/8" | 8 | 14 | 10 | 23 | 33 | 17 | |||
R1/2" | 8 | 14 | 11 | 23 | 35 | 21 | |||
PT10 | R1/8" | 10 | 18 | 8 | 27 | 35 | 27 | ||
R1/4" | 10 | 18 | 9 | 27 | 36 | 17 | |||
R3/8" | 10 | 18 | 10 | 27 | 37 | 17 | |||
R1/2" | 10 | 18 | 11 | 27 | 39 | 21 | |||
PT12 | R1/8" | 12 | 21 | 8 | 30 | 37 | 19 | ||
R1/2" | 12 | 21 | 9 | 30 | 38 | 19 | |||
R3/8" | 12 | 21 | 10 | 30 | 39 | 19 | |||
R1/2" | 12 | 21 | 11 | 30 | 41 | 21 |
List of All Plastic Pneumatic Hose Fittings:
Choosing the Right Fittings for Your Pneumatic System:
Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.
Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon Bao
Tel: 86-13454729544
Fax: 86-574-83879820
