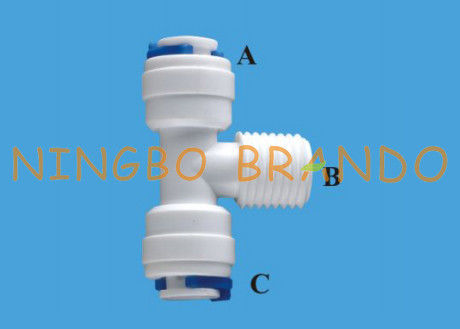

1/4 Inch POM T Type Pipe Push In To Connect RO Quick Fitting

1/4 Inch POM T Type Pipe Push In To Connect RO Quick Fitting

Description of RO quick fittings:
1. This replacement combo kit is suitable for use in hot and cold water applications.
2. It adopts push-fit technology, which allows users to connect and disconnect quick and easy without the need of any other tools.
3. Operated by hand, it replaces threaded or flanged connections, which require wrenches.
4. It is used to branch off to different outlets for your RO unit.
5. This kit fits for most RO systems.
6. Applications include RO system, beverage dispensing, refrigerator ice maker, coffee machine, etc.

Union Tee RO Fittings Each Port Size Option:

Picture	Union tee adapter made of food grade pom material, and assembled with EPDM orings
	Part No.	Tube OD (A)	Tube OD (B)	Tube OD (C)
	BF009-A	1/4	1/4	1/4
	BF009-B	1/4	1/4	3/8
	BF009-C	1/4	3/8	1/4
	BF009-D	1/4	3/8	3/8
	BF009-E	3/8	3/8	3/8
	BF009-F	3/8	1/4	3/8
	BF009-G	5/16	5/16	5/16
	BF009-H	5/16	1/4	1/4
	BF009-I	5/16	1/4	5/16
	BF009-J	5/16	5/16	1/4
	BF009-L	1/4	5/16	1/4

Straight Push in Fit RO Fittings Each Port Size Option:

Picture	Push in fit straight adapter
	Part No.	Tube OD (A)	Tube OD (B)
	BF006-A	1/4	1/4
	BF006-B	1/4	3/8
	BF006-C	3/8	3/8
	BF006-D	5/16	5/16
	BF006-E	5/16	1/4
	BF006-F	5/16	3/8

L Shape Push In Fit RO Fittings Each Port Size Option:

Picture	L shape push fit elbow plastic fast fitting
	Part No.	Tube OD (A)	Tube OD (B)
	BF004-A	1/4	1/4
	BF004-B	1/4	3/8
	BF004-C	3/8	3/8
	BF004-D	5/16	5/16
	BF004-E	5/16	5/16
	BF004-F	5/16	5/16

Male Tee RO Fittings Each Port Size Option:

Picture	Male Tee Adapter for reverse osmosis water treatment system
	Part No.	Tube OD (A)	Tube OD (B)	Tube OD (C)
	BF007-A	1/4	1/4	1/4
	BF007-B	1/4	3/8	1/4
	BF007-C	1/4	1/4	3/8
	BF007-D	1/4	3/8	3/8
	BF007-E	3/8	3/8	3/8
	BF007-F	3/8	1/4	3/8

Picture	Water Pipe Fitting Male Thread to Fast Fitting Straight Plastic Adapter
	Part No.	Tube OD (A)	Tube OD (B)
	BF012-A	1/4	1/4
	BF012-B	1/4	3/8
	BF012-C	3/8	3/8
	BF012-D	3/8	1/4
	BF012-E	5/16	1/4

Two Way Splitter RO Fittings Each Port Size Option:

Picture	Two Way Splitter
	Part No.	Tube OD (A) (Inlet tube)	Tube OD (B) (Outlet tube)	Tube OD (C) (Outlet tube)
	BF017-A	1/4	1/4	1/4
	BF017-B	3/8	3/8	3/8
	BF017-C	3/8	1/4	1/4

Benefits of RO Quick Fittings:
1. Quick-Connect collet locking system provides a reliable connection in moments, without the use of tools
2. Faster system assembly time
3. Aids in easier replacement of membranes and filters
4. Quick disconnection without the need for tools
5. May be used in applications up to 150 psi

Applications for Quick-Connect Fittings:
1. Point of Use (POU) Drinking Water Systems
2. Home RO Systems
3. Commercial RO Systems
4. Point of Entry (POE) Water Filtration Systems
5. Office
6. Institutions
7. Lab
8. Water Purification
9. Ice Makers
10. Beverage Dispensing
11. Vending
12. R.V.
