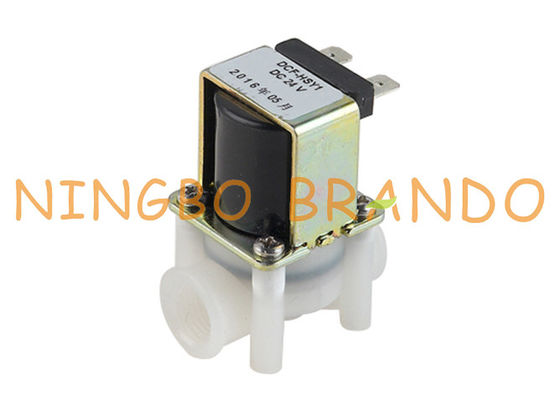

Domestic Water Purifier Plastic RO Solenoid Valve 1/4'' 12V 24V

Domestic Water Purifier Plastic RO Solenoid Valve 1/4'' 12V 24V

  • Domestic Water Purifier Plastic RO Solenoid Valve 1/4'' 12V 24V
  • Domestic Water Purifier Plastic RO Solenoid Valve 1/4'' 12V 24V
Domestic Water Purifier Plastic RO Solenoid Valve 1/4'' 12V 24V
Product Details:
Place of Origin: Ningbo, China
Brand Name: Brando
Certification: CE, ISO9001
Model Number: BPV01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Inner box, then loaded into carton, then packed by pallet for sea shipment
Delivery Time: 7 working days after receive payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200000pcs per month
Contact Now
Detailed Product Description
Product Name: RO Solenoid Valve Operation: Direct Acting
Orifice Size: 1 To 5mm Port Size: 1/8'', 1/4'', 3/8''
Connection: Push In Fast Fit, Female Thread Body Material: PP, POM
Medium: Water, Air, Oil Working Pressure: 0 To 120psi
Seal Material: NBR, FKM, EPDM Voltage: 12VDC, 24VDC, 36VDC, 48VDC
High Light:

Domestic RO Solenoid Valve

,

RO Solenoid Valve 24VDC

,

RO Machine Solenoid Valve

Domestic Water Purifier Plastic RO Solenoid Valve 1/4'' 12V 24V



Product Application:
RO Solenoid Valve BPV01 , which is suitable for Water Purifier and Water Dispenser series.



Operating Principle:

1. Solenoid Valve (Solenoid Valve) is the basic component of the control of fluid on and off with electromagnetic control, which belongs to the actuator

2. The coil is energized to generate electromagnetic force, pushing the iron core to overcome the spring force to move, through the pilot structure or direct motion structure, realize the waterway on and off.When the coil loses power, the iron core returns to its original position under the action of spring force, and the solenoid valve is closed through the above structure.



Main Features:
1) Normally closed
2) 1/4'' female thread
3) One way Inlet solenoid water valve
4) Water inlet valve: it is mainly used to control water inlet, water cut-off, power valve opening, Power valve close, most widely used.(normally closed valve)



Dimension & Data of RO Solenoid Valves:

Domestic Water Purifier Plastic RO Solenoid Valve 1/4'' 12V 24V 0

Model
BPV01
Medium
Water, Air, Oil, etc
Medium Temperature Range
-10 to +80℃
Body Material
PP, POM
Working Pressure Range
0-120psi
Conection Type
Female Thread
Port Size
1/4'' NPT
Voltage
12VDC, 24VDC, 36VDC, 48VDC
Seal Material
NBR, FKM, EPDM

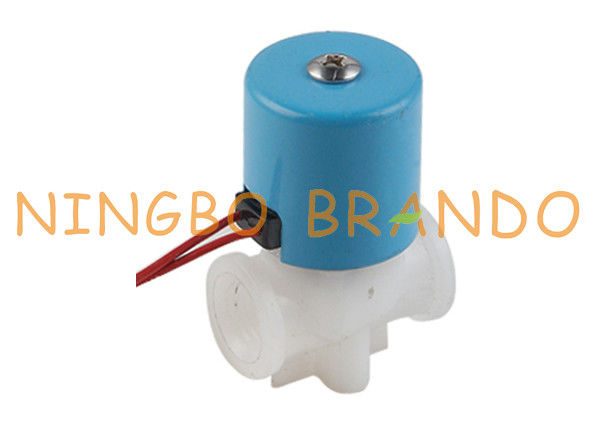

Domestic Water Purifier Plastic RO Solenoid Valve 1/4'' 12V 24V 1

Model
BPV02
Medium
Water, Air, Oil, etc
Medium Temperature Range
-10 to +80℃
Body Material
PP, POM
Working Pressure Range
0-120psi
Conection Type
Fast Fitting,
Tube OD 6.35mm
Voltage
12VDC, 24VDC, 36VDC, 48VDC
Seal Material
NBR, FKM, EPDM



Applications for RO Solenoid Valves:
1. Point of Use (POU) Drinking Water Systems
2. Home RO Systems
3. Commercial RO Systems
4. Point of Entry (POE) Water Filtration Systems
5. Office
6. Institutions
7. Lab
8. Water Purification
9. Ice Makers
10. Beverage Dispensing
11. Vending
12. R.V.
