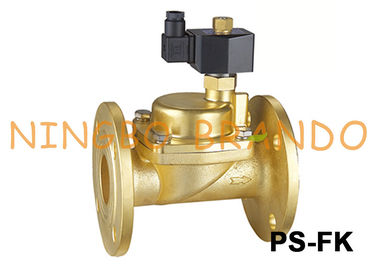

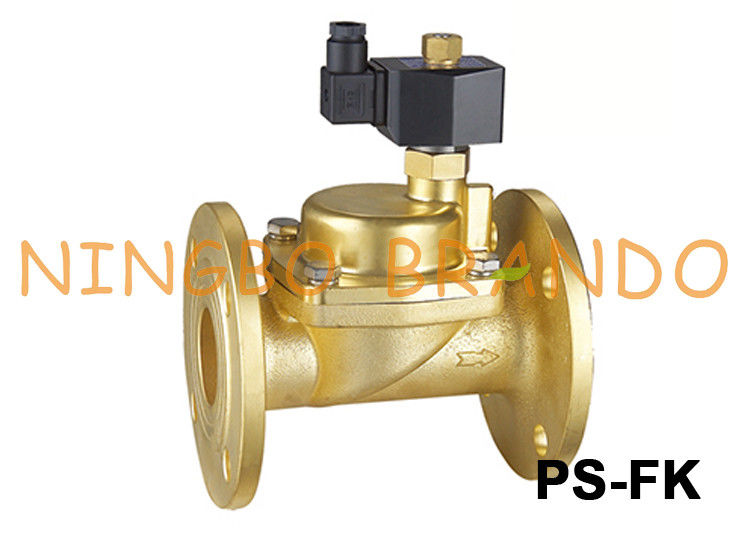

1-1/4" PS-32FK Flanged Piston Pilot Operated Brass Steam Solenoid Valve 24VDC 220VAC

1-1/4" PS-32FK Flanged Piston Pilot Operated Brass Steam Solenoid Valve 24VDC 220VAC

1-1/4" PS-32FK Flanged Piston Pilot Operated Brass Steam Solenoid Valve 24VDC 220VAC
video
1-1/4" PS-32FK Flanged Piston Pilot Operated Brass Steam Solenoid Valve 24VDC 220VAC
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: PS-32FK
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Power: Solenoid Media: Stem, Hot Water, Oil
Port Size: 1-1/4'' Structure: Piston Pilot Operated
Function: 2/2Way Normally Closed Valve Body Material: Brass
Diaphragm Material: PTFE Pressure Range: 0.1 To 16 Bar
Temperature Range: 0to +180℃ Voltage: 24V DC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC
High Light:

High Temperature Solenoid Valve

,

Steam Solenoid Valve

,

Hot Water Solenoid Valve

1-1/4'' PS-32FK Flanged Piston Pilot Operated Brass Steam Solenoid Valve 24VDC 220VAC​Model Number:PS
Power:Solenoid
Media:Steam, Hot Water, Oil
Port Size:1-1/4''
Function:2/2 Way Normally Closed
Operation Type:Piston Pilot Operated
Valve Body Material:Brass, Stainless Steel
Diaphragm Material:PTFE
Pressure Range:0.1 to 16 bar
Temperature Range:0 to +180 ℃
Voltages:24V DC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC
PS Threaded Series:PS-10, PS-15, PS-20, PS-25, PS-32, PS-40, PS-50

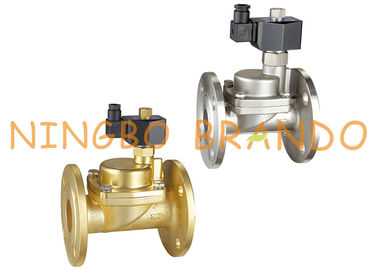

PS Flanged Series (Brass):PS-15JF, PS-20JF, PS-25JF, PS-32JF, PS-40JF, PS-50JF, PS-80JF
PS Flanged Series (SS304):PS-25F, PS-32F, PS-40F, PS-50F, PS-65F



Dimension of PS Series Brass Solenoid Valve:

Dimension of PS Series Brass Solenoid Valve:

Model
A
B
C
D
PS-10
70
53
135
122.5
PS-15
70
53
135
122.5
PS--20
74
57
142
125.5
PS-25
92
69
150
130
PS-32
110
85
164
139
PS-40
122
90
168
140
PS-50
160
117
190
155





Technical Data:

PS Series
PS-10
PS-15
PS-20
PS-25
PS-32
PS-40
PS-50
Orifice Size
15
15
20
25
32
40
50
Port Size
3/8''
1/2''
3/4''
1''
1-1/4''
1-1/2''
2''
Connection Type
Threaded (G, NPT), Flanged
Medium
Hot Fluids, Steam
Action
Piston Pilot Operated
Function
2 Way, (Normally Closed/Normally Open)
Body Material
Brass, Stainless Steel
Seal Material
PTFE
Pressure
Range
0. to 16 bar
Temp. Range
0 to +180℃





Brando Factory Production of Brass Solenoid Valves:



1-1/4" PS-32FK Flanged Piston Pilot Operated Brass Steam Solenoid Valve 24VDC 220VAC 1



Quick Details

Standard or Nonstandard: Standard
Structure: Pilot
Pressure: High Pressure
Power: Solenoid
Material: Brass
Temperature of Media: High Temperature
Media: Base
Port Size: 1/2"~2"
Function: an electromechanical valve for use with liquid or gas
certificate passed: CE, ISO, ROHS
Export Area: ALL OVER THE WORLD



Media: Steam, hot water, air, oil (below 20cst)
Sealing material: PTFE

Media: Steam,water, hot water, air, oil (below 20cst)

Function type: Normally Closed (N/C), Normally Open (N/O)

Pressure Normally Closed 16 bar, Normally Open: 10 bar

Temperature: -5 ÷180

Mode of action: Pilot operated

Body material: Brass

Sealing material: PTFE

Protection class: IP54
