3/8" X 1/2" Flare R22 s Type 068Z3206 TX 2 THERM EXP Thermal Expansion Valve

3/8" X 1/2" Flare R22 s Type 068Z3206 TX 2 THERM EXP Thermal Expansion Valve

    • 3/8" X 1/2" Flare R22 s Type 068Z3206 TX 2 THERM EXP Thermal Expansion Valve
    • 3/8" X 1/2" Flare R22 s Type 068Z3206 TX 2 THERM EXP Thermal Expansion Valve
    • 3/8" X 1/2" Flare R22 s Type 068Z3206 TX 2 THERM EXP Thermal Expansion Valve
    • 3/8" X 1/2" Flare R22 s Type 068Z3206 TX 2 THERM EXP Thermal Expansion Valve
  • 3/8" X 1/2" Flare R22 s Type 068Z3206 TX 2 THERM EXP Thermal Expansion Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: 068Z3206

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-8 days
    Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability: 200000 sets per month
    Contact Now
    Detailed Product Description
    Product Name: S Type TX 2 Thermostatic Expansion Valve Inlet Port Size: 3/8'' Flare
    Outlet Port Size: 1/2'' Flare Refrigerants: R22, R407C
    Capillary Tube Length: 1500mm Pressure Equalization: Internally Equalized
    Temperature Range: -40°C To 10 °C Direction: Angleway
    Connection & Body Material: Brass Application: Freezing, Refrigeration And Air Conditioning System

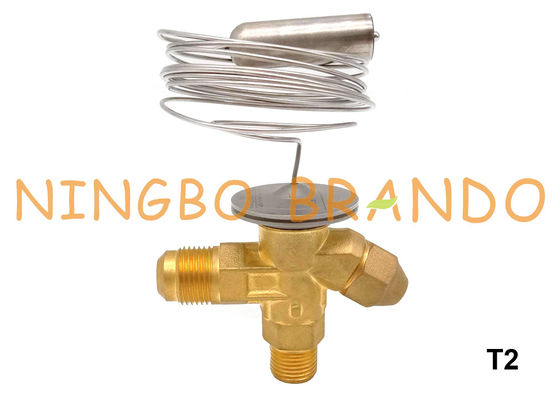

    3/8'' x 1/2'' Flare R22 s Type 068Z3206 TX 2 THERM. EXP. Thermal Expansion Valve



    The introduced following is s type TX 2 068Z3206 thermostatic expansion valve, 3/8'' x 1/2'' flare connection, R22 / R407C refrigerants, internally equalized, 1500mm capillary tube length.


    Thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators. Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in dry evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.


    1. Large temperature range Equally applicable to freezing, refrigeration and air conditioning applications.
    2. Rated capacities from 0.5 to 15.5 kW (0.15 to 4.5 TR) for R22.
    3. Can be supplied with MOP (Max. Operating Pressure) Protects the compressor motor against excessive evaporating pressure during normal operation.



    Main dimension of s Type 068Z3206 TX 2 Thermostatic Expansion Valve:

    3/8" X 1/2" Flare R22 s Type 068Z3206 TX 2 THERM EXP Thermal Expansion Valve



    Technical data of s Type THERM. EXP. VALVE / Thermostatic Expansion Valve:

    Refrigerants Model Pressure equalization Capillary tube length Connection

    Equalizing port

    (Inch/mm)

    Inlet (Inch/mm)

    Outlet

    (Inch/mm)

    R22 R22N-H TX 2 Internally equalized 1500mm 3/8'' / 9.52 1/2'' / 12.7
    R22W-H TEX 2 Externally equalized 3/8'' / 9.52 1/2'' / 12.7 1/4'' / 6..35
    R407C R407CN-H TZ 2 Internally equalized 3/8'' / 9.52 1/2'' / 12.7
    R407CW-H TEZ 2 Externally equalized 3/8'' / 9.52 1/2'' / 12.7 1/4'' / 6..35
    R134a R134aN-H TN 2 Internally equalized 3/8'' / 9.52 1/2'' / 12.7
    R134aW-H TEN 2 Externally equalized 3/8'' / 9.52 1/2'' / 12.7 1/4'' / 6..35
    R404A/R507 R404A/R507N-H TS 2 Internally equalized 3/8'' / 9.52 1/2'' / 12.7
    R404A/R507W-H TES 2 Externally equalized 3/8'' / 9.52 1/2'' / 12.7 1/4'' / 6..35



    Details enlargement of TX 2 068Z3206 R22 3/8'' x 1/2'' Flare sType Expansion Valve:

    3/8" X 1/2" Flare R22 s Type 068Z3206 TX 2 THERM EXP Thermal Expansion Valve



    Application examples of s Type TX 2 068Z3206 Thermostatic Expansion Valve:

    3/8" X 1/2" Flare R22 s Type 068Z3206 TX 2 THERM EXP Thermal Expansion Valve



    Youtube video of s Type 068Z3206 TX 2 3/8'' x 1/2'' Flare R22 THERM. EXP. VALVE:



    Selection and Installation Instructions of s Type Thermostatic Expansion Valves:

    1. Select Valve Body
    Select the valve body based on refrigerant and need for internal or external equalization using the table on the previous page under [Select Valve Body."

    2. Select Orifice
    T2/TE2 valve capacities are based on the installed orifice. To select the correct size orifice, use one of the two methods using the [Select Orifice" section on the previous page.

    3) Assemble Valve and Install into System
    1. Slide the orifice into the valve body and secure using liquid line flare nut
    2. Attach evaporator inlet or distributor assembly to valve outlet flare nut
    3. Tighten both flare nuts

    • Specification for inlet is 26–33 ft.-lbs
    • Specification for outlet is 37–52 ft.-lbs

    4. Secure sensing bulb with enclosed bulb strap to suction line. Bulb should
    be located between 1:00 and 4:00 on the tube, and the strap should be tight
    enough that no bulb movement is possible.
    5. Wrap included insulation tape beginning one inch before the bulb and overlapping each wrap, finishing one inch beyond the bulb on the other end.

    4) Adjust Superheat
    1. Remove the cap
    2. Make superheat adjustments ¼ turn at a time (¼ turn ≈ 1.75 °F).

    • Turning clockwise increases superheat.
    • Turning counter-clockwise decreases superheat.

    3. Reinstall the cap
