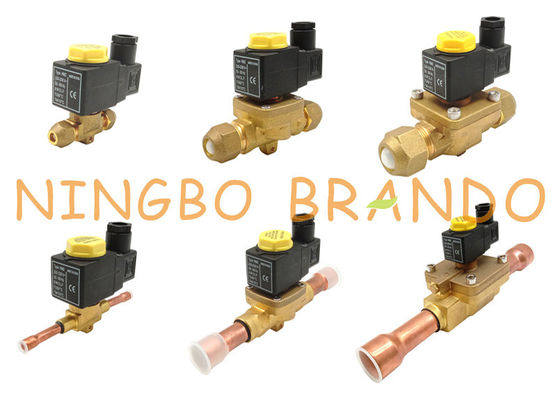

Castel Type Refrigeration Solenoid Valve

Castel Type Refrigeration Solenoid Valve

  • Castel Type Refrigeration Solenoid Valve
Castel Type Refrigeration Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: HM2, HM3
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 4-7 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: Refrigeration Solenoid Valve Ordering Codes: 1020/2, 1020/3, 1064/3, 1064/4, 1070/4, 1070/5, 1070/6, 1090/5, 1090/6, 1028/2, 1028/3, 1068/3, 1068/4, 1078/4, 1078/5, 1079/7, 1078/9, 1079/11, 1079/7, 1099/11, 1078/11, 1079/13
Pipe Size: 1/4'' To 1 3/8'' Connection: SAE (Flare), ODF (Solder)
Valve Operation: Direct Acting, Diaphragm Pilot Operated, Piston Pilot Operated Valve Function: 2 Way Normally Closed
Coil Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC Coil Options: HM2, HM3
High Light:

Castel Refrigeration Solenoid Valve

,

Castel Solenoid Valve HM2

,

Castel Solenoid Valve HM3

Castel Type Refrigeration Solenoid Valve



Brando produces a complete range of castel type solenoid valves for commercial refrigeration system. Model numbers are as follow: 1020/2, 1020/3, 1064/3, 1064/4, 1070/4, 1070/5, 1070/6, 1090/5, 1090/6, 1028/2, 1028/3, 1068/3, 1068/4, 1078/4, 1078/5, 1079/7, 1078/9, 1079/11, 1079/7, 1099/11, 1078/11, 1079/13.



Product features and benefits:


1. Three Operation: Direct Acting, Diaphragm Pilot Operated, Piston Pilot Operated;
2. Wide choice of coils for AC and DC;
3. Suitable for all fluorinated refrigerants;
4. Easy installation with either flare or solder connections.



Dimension of Castel Type Solenoid Valves:

castel solenoid valve

Operation
Model No
Connection
Dimension (mm)
Flare
(SAE)
Solder (ODS)
H1
H2
H3
L1
L2
Q
Direct
Acting
1020/2
1/4''

75
62.5
34
58
50
-
1020/3
3/8''

65
1028/2

1/4''
125
1028/2E

1/4''
125
1028/3

3/8''
125
1028/M10

10mm
125
Diaphragm
Pilot
Operated
1064/3
3/8''

82
69.5
40
68
50
-
1064/4
1/2''

72
1068/3

3/8''
111
1068/M10

10mm
111
1068/M12

12mm
127
1068/4

1/2''
127
1070/4
1/2''

91
75
47
100
45
1070/5
5/8''

106
1078/M12

12mm
127
1078/4

1/2''
127
1078/5

5/8''
175
1079/7

7/8''
190
1090/5
5/8''

106
78
50
120
57
1090/6
3/4''

124
1098/5

5/8''
175
1098/6

3/4''
175
1098/7

7/8''
180
1099/9

1 1/8''
216
1078/9

1 1/8''
115
96
72
250
80
1079/11

1 3/8''
292
Piston
Pilot
Operated
1034/3
3/8''

92.5
80
50.5
68
50
-
1034/4
1/2''

72
1038/3

3/8''
111
1038/M10

10mm
111
1038/M12

12mm
127
1038/4

1/2''
127
1040/4
1/2''

100.5
84.5
56.5
100
45
1040/5
5/8''

106
1048/M12

12mm
127
1048/4

1/2''
127
1048/5

5/8''
175
1049/7

7/8''
190
1050/5
5/8''

121
93
65
120
57
1050/6
3/4''

124
1058/5

5/8''
175
1058/6

3/4''
175
1058/7

7/8''
180
1059/9

1 1/8''
216
1098/9

1 1/8''
157
127
99
235
60
1099/11

1 3/8''
277
1078/11

1 3/8''
175
141
113
278
68
1079/13

1 5/8''
1079/M42

42mm
1078/13

1 5/8''
190
153
125
280
68
1078/M42

42mm
1079/17

2 1/8''
