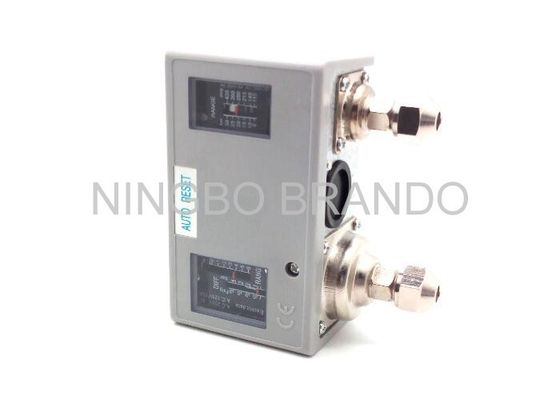

Ressure Control Auto Format Form Air Compressor Pressure Switch High Pressure

Ressure Control Auto Format Form Air Compressor Pressure Switch High Pressure

  • Ressure Control  Auto Format Form Air Compressor Pressure Switch High Pressure
  • Ressure Control  Auto Format Form Air Compressor Pressure Switch High Pressure
  • Ressure Control  Auto Format Form Air Compressor Pressure Switch High Pressure
  • Ressure Control  Auto Format Form Air Compressor Pressure Switch High Pressure
Ressure Control  Auto Format Form Air Compressor Pressure Switch High Pressure
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE ISO
Model Number: MLSP1245
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: Inner box, carton, then packed by pallet
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200000PCS PER MONTH
Contact Now
Detailed Product Description
Part Name: High Pressure Ressure Control Low Pressure Range: 2~12 Bar
High Maximum Pressure: 20 Bar Certification: CE, ISO9001:2000
Reset: AUTO Inductive Current: 64A
High Light:

Pressure Control Switch

,

Compressed Air Pressure Switch

High Pressure Ressure Control Auto Format Form Air Pressure Switch

MLSP high pressure series pressure control is to accept the pressure signal and the action of the automatic controllr, in R410A refrigeration device for medium, when the compressor discharge pressure exceeds the set valve or the suction pressure is lower than the settt valve, the pressure control will automatically cut off the circuit, to protect the compressor.

The Application of Switch:
1. MLSP Series pressure control used in refrigeration and compressor air system, adjust the equipment is high, low limit control and avoid the over-low suction pressure and over-high exhaust pressure.
2. MLSP Series pressure control can be used in Pneumatic, boiler, fire protection, ironing, hydraulic, pumps and other equipment.3. MLSP Series pressure control with copper air-box connector, suitable for freon, air, liquid and other non-corrosive media; with stainless steel air-box connector, it can be used with liquid ammonia etc corrosive gas or liquid system.
4. MLSP Series pressure control can start and stop refrigeration compressors and fans of condensers.



Introduction:
1, P series pressure controls are fitted with 3 kinds of changeover switch: a single pole double throw (SPDT), a double pole single throw(DPST) and a double pole double throw(DPDT). The position of the switch is determined by the pressure control setting and the pressure at the connector.
2, P series pressure control can protect compressors in refrigeration and air-condition plant, and keep them from over-low pressure or over-high suction pressure.
3, P series pressure controls can start and stop refrigeration compressors and fans of air condensers.
4, P series pressure controls can be used not only in fluoride refrigeration, but also in air and liquid.

Specification of Pressure Switch:


Model Low pressure High Pressure Low pressure High Pressure Low pressure High Pressure
Pressure Range(bar)

Differential

Pressure(bar)

Pressure Range(bar)

Differential

Pressure(bar)

Format Form
Maximum Pressure
MLSP545 - - 5~45 4~5 - Auto - 48
MLSP545D - - 5~45 5~45 - Auto - 48
MLSP1245 2~12 1~5 12~45 4~6 Auto Auto 20 48
MLSP1245HM 2~12 1~5 12~45 4~6 Auto Manual 20 48
MLSP1245HLM 2~12 ≤5 12~45 4~6 Manual Manual 20 48




Rated Voltage(v) 125V 250V 24V
Rated Amps A.C. A.C. D.C.
Non-Inductive Current 20A 10A 10A
Inductive Current Full Load Current 15A 8A 8A
Locked Roter 72A 64A



The Structure Diagram:
Ressure Control  Auto Format Form Air Compressor Pressure Switch High Pressure 0
The Connection of the Switch

Ressure Control  Auto Format Form Air Compressor Pressure Switch High Pressure 1
The Drawing of the Switch
Ressure Control  Auto Format Form Air Compressor Pressure Switch High Pressure 2

The Switch Contact Form


About Service:
1. We offer professional order operation service: Same sales person follows the order from discussing step to the end of you get the goods of order
2. If any problem occur during production or you meet quality problem when you are using our goods, inform us at once, we will offer you best solution
3. Contact us via email, phone calling, skype, or other chatting methods, we will response at once


The pictures:

Ressure Control  Auto Format Form Air Compressor Pressure Switch High Pressure 3


Ressure Control  Auto Format Form Air Compressor Pressure Switch High Pressure 4
We also produce other kind switch



Welcome your any question, we will response at once. We also can produce as customized.
Welcome your drawing or sample.
