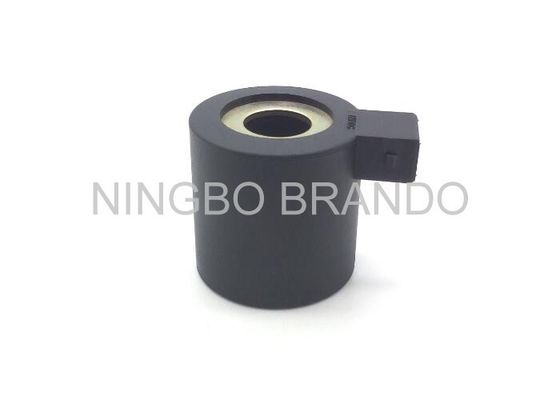

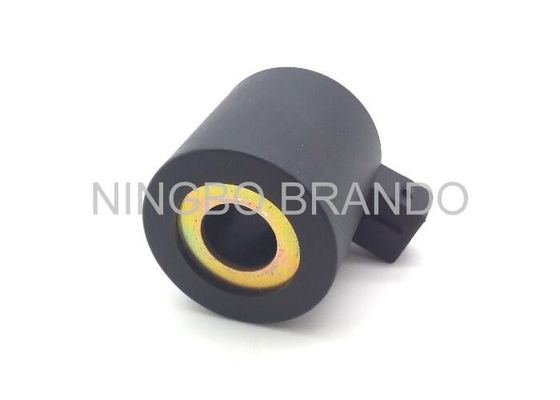

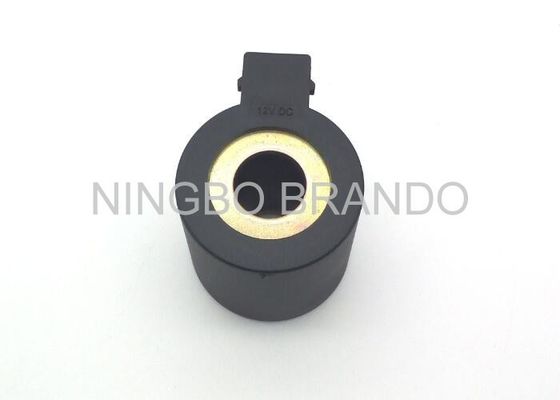

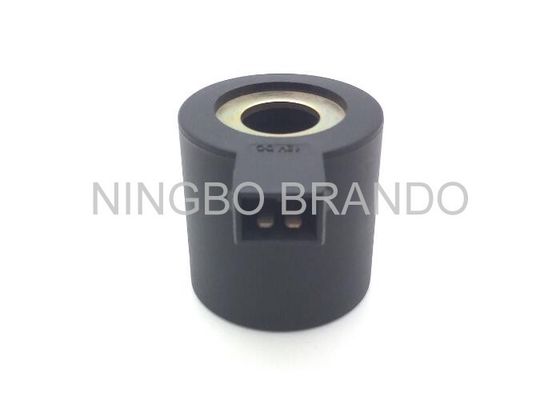

DC 12V H Insulation Class Black Pneumatic Solenoid Coil For Pulse Jet Valve

DC 12V H Insulation Class Black Pneumatic Solenoid Coil For Pulse Jet Valve

  • DC 12V H Insulation Class  Black Pneumatic Solenoid Coil For Pulse Jet Valve
  • DC 12V H Insulation Class  Black Pneumatic Solenoid Coil For Pulse Jet Valve
  • DC 12V H Insulation Class  Black Pneumatic Solenoid Coil For Pulse Jet Valve
  • DC 12V H Insulation Class  Black Pneumatic Solenoid Coil For Pulse Jet Valve
DC 12V H Insulation Class  Black Pneumatic Solenoid Coil For Pulse Jet Valve
Product Details:
Place of Origin: China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: BB17244002
Payment & Shipping Terms:
Minimum Order Quantity: 3pcs
Price: negotiation
Packaging Details: Inner box, carton, and pallet
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200000pcs per month
Contact Now
Detailed Product Description
Part Name: Pneumatic Solenoid Coil Color: Black, Green, Blue, Red, All Is Available
Normal Power: DC 18W Electrical Entry: Terminal ,Grommet
High Light:

Solenoid Valve Coils

,

Electric Solenoid Coil

DC 12V H Insulation Class Black Pneumatic Solenoid Coil For Pulse Jet Valve



The principle of coil:

When the coil is energized, the electromagnet force is generated, so that the moving iron core overcomes the spring force and attracts the direct opening of the valve with the static core. The medium shows the passage; when the coil is de-energized, the electromagnetic force disappears, Core in the spring force under the action of reset, directly close the valve port, the media barrier. Simple structure, reliable, zero pressure and micro-vacuum under normal work.



Advantages of our pneumatic solenoid valve coil:

1. We use heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material

2. The yoke for leading magnetic field we chosen as low carbon iron

3. Encapsulation with high quality specially designed glass filled nylon

4. For use in special ambients with high humidity, please do not hesitate to contact with us.



Detailed parameter and specifications of pulse solenoid valve coil:

Part No. BB17244002
Part Name Pneumatic solenoid coil for pulse jet valve
Color Black, Green, Blue, red, all other color can be customized
Voltage 12V DC, 24V DC, 110V AC, 220V AC
Core Material Thermoplastic
Yoke Material Low carbon iron, then nickle plated or powder coated
Winding High quanlity, high temperature resistant enameled copper wire
Insulation Class H
Other Installation size Can be customized as per your drawing
Quality Control All goods will be 100% inspected and tested before dispatching
Delivery Time One week after payment
Application Solenoid valve
Solenoid coil inner hole diamter 17.2mm
Solenoid coil height 44.0mm



The Drawing of the Coil:

DC 12V H Insulation Class  Black Pneumatic Solenoid Coil For Pulse Jet Valve 0
How we control solenoid coil quality during production:

1, Inspect raw material of enameled copper wire and thermoplastic or thermosetting plastic by mesure and testing

2, Set up parameters on coil winding machines, then manual inspect one by one after winding

3, After welded electrial terminations then tested by testing machines one by one to ensure all coils is workable

4, After moulded with thermoplastic or thermosetting plastic will be tested 100% again, and also will select 10% by random and assembled with solenoid valve then let it work for testing life.

5, After selected out some failed pneumatic solenoid coil, we will put them with stickers and marked failed reason on paper then destroy to avoid mixed into bulk order goods.



Pictures about pneumatic valve solenoid coil:

DC 12V H Insulation Class  Black Pneumatic Solenoid Coil For Pulse Jet Valve 1





DC 12V H Insulation Class  Black Pneumatic Solenoid Coil For Pulse Jet Valve 2

We also produce other kind coil



The Company Working Environment and Equipment:



DC 12V H Insulation Class  Black Pneumatic Solenoid Coil For Pulse Jet Valve 3

The Payment Method:
DC 12V H Insulation Class  Black Pneumatic Solenoid Coil For Pulse Jet Valve 4

Welcome your any question, we will response at once. We also can produce as customized.

Welcome your drawing or sample.
