|Place of Origin:||Ningbo, China|
|Minimum Order Quantity:||2pcs|
|Packaging Details:||Inner box, carton, then packed by pallet|
|Delivery Time:||15 Working Days|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||200000PCS PER MONTH|
|Part Name:||4.5VA Power Consumption Pneumatic Cylinder Valve||Working Pressure:||0.15-0.8MPa|
|Power Consumption:||AV 4.5VA DC 3W||Working Medium:||40 Micron Filtered Air|
cylinder operated valve,
cylinder solenoid valve
4.5VA Power Consumption Two-position Five-way Pneumatic Cylinder Valve
The wiring form of 4.5VA Power Consumption Two-position Five-way Pneumatic Cylinder Valve can be lead wire and connector type. The motion pattern is inner guide type. The heighest action frequency is 5 cycle/sec and the shortest excitation time is 0.05 second. Our products are all good quality, don't miss us.
The Structure Diagram:
Specification of 4V210-08 Pneumatic Cylinder Valve:
|Position and Way No.||Two-position Five-way|
|Port Size||Air Inlet=Air Outlet=G1/4" Exhaust=G1/8"|
|Working Mdium||40 Micron Filtered Air|
|Max. Pressure Resistance||1.0MPa|
|Motion Pattern||Inner Guide Type|
|Power Consumption||AC 4.5VA DC 3W|
|Insulation and Protection Class||F Class. IP65|
|Wiring Form||Lead Wire or Connector Type|
|Highest Action Frequency||5 Cycle/Sec|
|Shortest Excitation Time||0.05 Second|
Functions and Advantages:
1. Wide application.
2. Special technology for bore, low friction force, low start pressure.
3. Quicky directional changing, fast speed.
4. Low power, only 3W.
5. Excellent material, precise process, fine shape.
6. A little bit dustproof
More details for you know us more:
Q1: Where is your factory located?
A1: Our factory is located in Ningbo. Nearby Ningbo port, the second largest port in China, convenient transportation and low cost, and close to Shanghai
Q2: Is availabe to get sample, and how can I get some samples?
A2: We are honored to offer samples to you when the prices are confirmed. Samples are free, however, the freight cost should be collected by customer. If sample quantity is more than our regular one, we will extra collect sample cost.
Q3: What is your payment term?
A3: 30% TT in advance, the balance payment 70% against copy of b/l.
Q4: What’s your delivery time?
A4: Normally, we keep stocks, if to produce, normally around 2 weeks. If you are in urget to get, we will speed up to satisfy you as much as we can.
Q5: How does your factory do regarding quality control?
A5: We control strictly in every step: choosing best material for our products, such as HP59-1 for our brass fitting, Automatic CNC manufacturing, and 100% test for air pressure and inspection for product appearance.
Q6: Have you exported to other countries?
A6: Yes, we have about 10 years experience of exporting to abroad, we have customer in America, USA, Europe, Mid East and so on. We have experience to pack goods well to avoid any mistake on sea shipment.

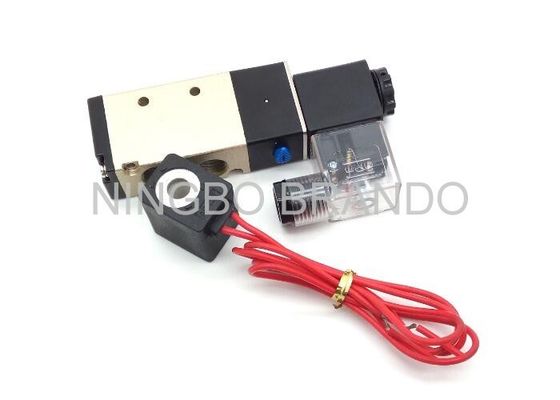

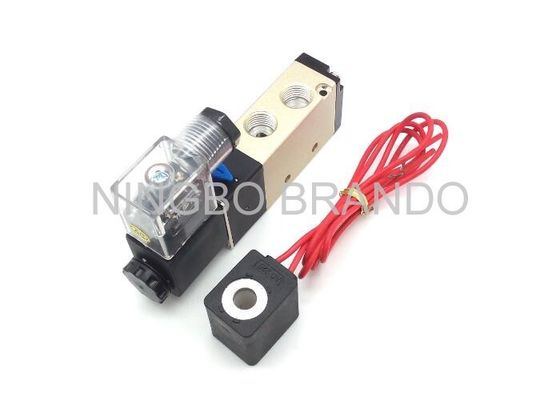

Some pictures to show by different way:
Welcome your any question, we will response at once. We also can produce as customized.
Welcome your drawing or sample.
