| Place of Origin: | China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | N600 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 sets per month |
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | TPE |
|---|---|---|---|
| Fitted Valve Port: | 1 1/2'' | Fitted Valve Model: | 8296600.8171, 8297600.8171 |
| High Light: | 8296600.8171 Pulse Valve Diaphragm,8297600.8171 Pulse Valve Diaphragm,Norgren Pulse Valve Diaphragm |
||

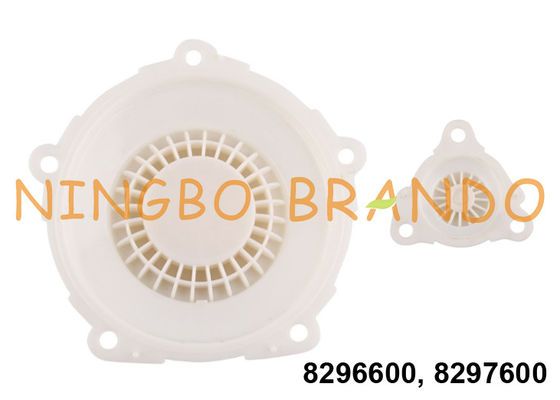

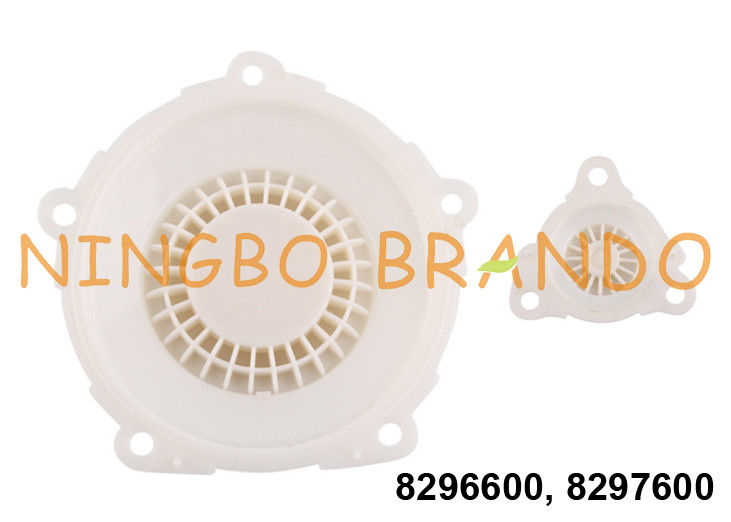

Diaphragm For Norgren Pulse Jet Valve 8296600.8171 8297600.8171
1261402 Diaphragm (Membrane) for 1 1/2'' Norgren Buschjost pulse valve 8296600.8171, 8297600.8171; TPE material; Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.
Ordering Code of Diaphragm For Norgren Buschjost Pulse Valve:
|
Ordering Code
|
Fitted Valve Code
|
Valve Port Size
|
Material
|
|
1261253 (N300)
|
8296300.8171, 8297300.8171
|
3/4''
|
TPE
|
|
1261253 (N400)
|
8296400.8171, 8297400.8171
|
1''
|
TPE
|
|
1261402 (N600)
|
8296600.8171, 8297600.8171
|
1-1/2''
|
TPE
|
|
1268274 (N700)
|
8296700.8171, 8297700.8171
|
2''
|
TPE
|
|
8296800.8171, 8297800.8171
|
2-1/2''
|
TPE
|
|
|
1271526 (N900)
|
8296900.8171, 8297900.8171
|
3''
|
TPE
|
Main Dimension of 1.5'' Pulse Valve Diaphragm:
Main Diaphragm:
Secondary Diaphragm:
Video of 1.5'' Pulse Valve Membrane:
Pictures of Solenoid Valve Membrane Production:
More Products For Norgren Buschjost Pulse Valve for you to choose:
|
|
|
| Valve Diaphragm | Solenoid Coil, Solenoid Armature | Pulse Controller |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
