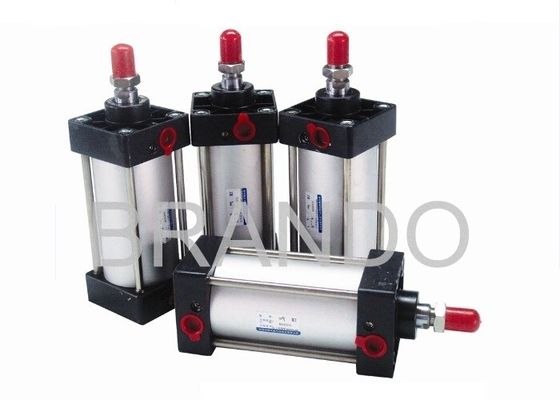

Festo DNC Dual Action Pneumatic Air Cylinder Low Start Pressure With Square Tube

Festo DNC Dual Action Pneumatic Air Cylinder Low Start Pressure With Square Tube

  • Festo DNC Dual Action Pneumatic Air Cylinder Low Start Pressure With Square Tube
  • Festo DNC Dual Action Pneumatic Air Cylinder Low Start Pressure With Square Tube
Festo DNC Dual Action Pneumatic Air Cylinder Low Start Pressure With Square Tube
Product Details:
Place of Origin: NINGBO, CHINA
Brand Name: BRANDO or OEM
Certification: CE, ISO
Model Number: DNC
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiation
Packaging Details: Bubble bga, carton, pallet
Delivery Time: 7 WORKING DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS PER MONTH
Contact Now
Detailed Product Description
Part Name: DNC Series Pneumatic Air Cylinder Material: SUS304, Aluminum, Carbon Steel
Standard: ISO6431, VDMA24562 Acting Type: Double Acting
Bore Diameter: 32, 40, 50, 63, 80, 100, 125 Power: Pneumatic
High Light:

double action air cylinder

,

small air cylinders


Festo DNC Dual Action Pneumatic Air Cylinder Low Start Pressure With Square Tube


Attention points:
1, In order to remove the iron rust, water in the tube, please fix the filter as near the direction control valve as possible
2, Please use the tube, which material contains corrosion resistance performance, like nickle plated tube, nylon tube, and rubber tube etc
3, As to the tube between cylinder and direction control valve, pls confirm whether the cross section has the valid section which is stipulated by the stated piston speed
4, In order to remove the iron rust, smear metal etc, please confirm the tube by compressed air before fixing it
5, When connecting with the components, please avoid the sealing belt, sticking agent etc
6, Please keep the load which is added on the piston rod acting on the axial state all the time


Installation and use of pneumatic cylinder
1, Check the component before using to see if any damage in transportation
2, Choose pneumatic cylinder with suffcient output force if the loader is same
3, Choose pneumatic cylinder supporting for high temperature if it's required, take anti-frozen measures to avoid water frozen in system in cold enviroment
4, Clean sundries in tubing before connection to pneumatic cylinder and the working medium should be treated by 25um filteration
5, Try to avoid any possibility to work with lateral loader, this could elongate life cycle of the pneumatic air cylinder
6, Protect the pneumatic cylinder with anti-rust measures if it's in long time free condition, and cover the air ports with anti-dust cap


DNC pneumatic cylinder features:
1, ISO6431, VDMA24562 standard
2, Piston seal form is double Y shape single direction seal, with good performance of supply, long working life and low start pressure
3, Square shape aluminum tube
4, Adjustable cushing on both end covers to make sure the cylinder works very smoothly safely and with low noise
5, Magnet and sufficient fixing styles are available

Main Dimensions:
Festo DNC Dual Action Pneumatic Air Cylinder Low Start Pressure With Square Tube 0

Bore
/Sign

ABCDEFGHIJKLNOPQRSTVWXZ
32142489430291927.522176M10X1.25M613.5PT1/85.866.346.532.51210330
40159541053533213224177M12X1.25M617.5PT1/465.59543816133.535
50175691064042273132238M16X1.5M814PT1/48510.56446.520173.540
63190691214542273332238M16X1.5M817PT3/88610.57556.52017445
802148612845533333402610M20X1.5M1016.5PT3/888.512.593722522445
1002299113855553637402610M20X1.5M1019.5PT1/210712110892522455
12527911916060604546544113.5M27X2M1223PT1/211121113411032274125


Internal Structure
Festo DNC Dual Action Pneumatic Air Cylinder Low Start Pressure With Square Tube 1

No.Part NameMaterial
1NutCarbon Steel/ SUS304
2Piston RodS45C Chrom plated
3Piston Rod SealEU
4Self Lubricating BearingPTFE+BRASS
5Head CoverAluminium
6O-ringNBR
7Cushion SealNBR
8BarrelAluminum
9PistonAluminum
10Y Shape RingNBR
11MagnetRbFeB
12Wear RingPA66
13Rear CoverAluminum


Specifications

Bore Diameter3240506380100120
Acting TypeDouble acting
Working Mediumclean air (25um filteration)
Mounting TypeSEFA FB CA CB CR LB TC FTC TF TM
Mounting TypeSEDFA LB TC FTC TF TM
Mounting TypeSEJFA LB TC FTC TF TM
Range of working pressure (Bar)0.1--1.0MPa (14--145PSI)
Guaranteed pressure (Bar)1.5MPa (215PSI)
Working temperature(℃)-20 -- +80℃
Speed range (mm/s)30--80030--500
Range of stroke tolerance0--250(+1.0 -0) 251--1000(+1.4 -0) 1001--1500(+1.4 -0)
Cushion typeAdjustable cushion
Cushion stroke (mm)27303640
Port SizePT1/8PT1/4PT3/8PT1/2


Stroke


Bore DiameterStandard StrokeMaximum StrokeAllow Stroke
3225 50 75 80 100 125 150 160 175 200 250 300 350 400 450 50010001800
4025 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 80012001800
5025 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 100012001800
6325 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 100015001800
8025 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 100015001800
10025 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 100015001800
12525 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 100015001800


More details of DNC pneumatic air cylinder
Festo DNC Dual Action Pneumatic Air Cylinder Low Start Pressure With Square Tube 2
Welcome your any question of pneumati cair cylinder, we will response at once
