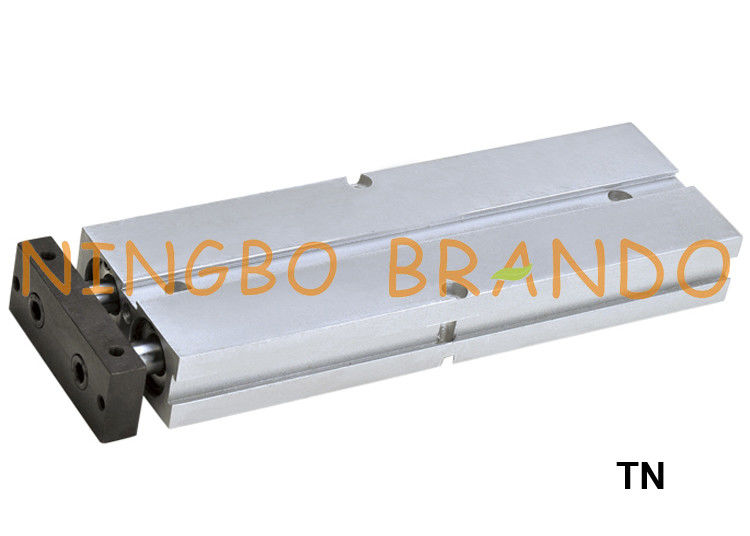

Airtac Type TN Series Twin Rod Pneumatic Air Cylinder Double Acting

Airtac Type TN Series Twin Rod Pneumatic Air Cylinder Double Acting

  • Airtac Type TN Series Twin Rod Pneumatic Air Cylinder Double Acting
Airtac Type TN Series Twin Rod Pneumatic Air Cylinder Double Acting
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: TN
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Series: Twin Rod Cylinder Body Material: Aluminum Alloy
Bore Size: 10mm, 16mm, 20mm, 25mm, 32mm Standard Stroke: 10mm To 200mm
Acting Type: Double Acting Operating Pressure Range: 0.1 To 1.0 MPa
Proof Pressure: 1.5 MPa
High Light:

Airtac TN Series

,

Airtac TN Cylinder

,

Airtac Twin Rod Cylinder

Airtac Type TN Series Twin Rod Pneumatic Air Cylinder Double Acting


Product Features of TN series Twin Rod Pneumatic Cylinder:

1. Embedded installation and fixation mode saves installation space.
2. It has good resistance to bending and twisting movements.
3. Mounting holes on three sides facilitates multi-position mounting.
4. Bumper in front of the barrel can adjust the stroke of cylinder and relieve impact.
5. Standard configuration of this series has magnet. Configuartion without magnet is not avaiable.


Specifications of TN Series Twin Rod Pneumatic Cylinder:

Airtac Type TN Series Twin Rod Pneumatic Air Cylinder Double Acting 0

Stroke of TN Series Twin Rod Pneumatic Cylinder:

Airtac Type TN Series Twin Rod Pneumatic Air Cylinder Double Acting 1


Ordering Code of TN Series Twin Rod Pneumatic Cylinder:
Airtac Type TN Series Twin Rod Pneumatic Air Cylinder Double Acting 2

Criteria for selection: Cylinder thrust:

Airtac Type TN Series Twin Rod Pneumatic Air Cylinder Double Acting 3



Inner Structure of TN Series Twin Rod Pneumatic Cylinder:

Airtac Type TN Series Twin Rod Pneumatic Air Cylinder Double Acting 4
