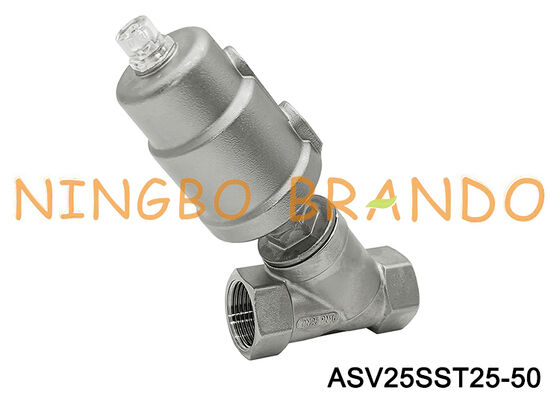

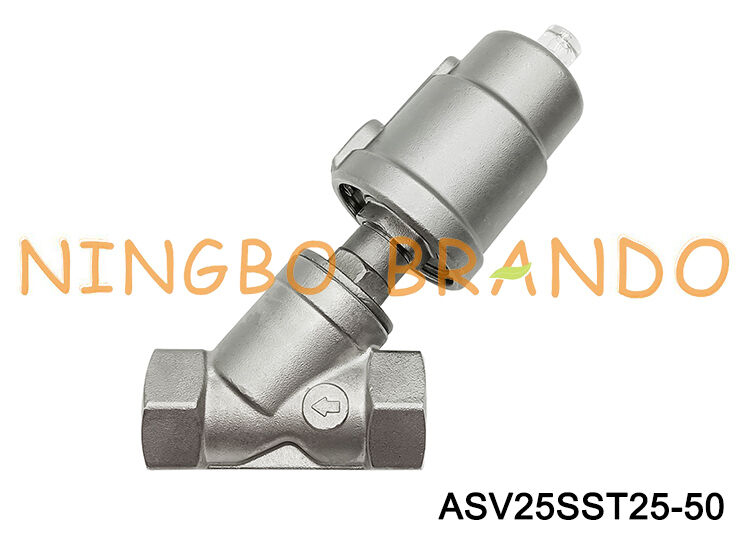

Name: 1'' Inch Threaded Pneumatic Angle Seat Valve DN25 Stainless Steel Process Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: ASV25SST25-50
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Cylinder Valve

1'' Inch Threaded Pneumatic Angle Seat Valve DN25 Stainless Steel Process Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	ASV25SST25-50

Payment & Shipping Terms:

Minimum Order Quantity:	20 pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,
Supply Ability:	50000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Angle Seat Valve	Port Connection:	Threaded
Port Size:	G1''	Body Material:	Stainless Steel 304
Seal Material:	PTFE	Actuator Material:	Stainless Steel
Actuator Size:	50mm Actuator	Medium Working Pressure:	0 To 1.6 MPa
Medium Working Temperature:	-10 To +180 ℃	Media Temperature:	Neutral Liquid And Gas
Highlight:	DN25 pneumatic angle seat valve , PTFE angle seat valve , 1'' threaded pneumatic angle seat valve

1'' Inch Threaded Pneumatic Angle Seat Valve DN25 Stainless Steel Process Valve

The 1'' Threaded Pneumatic Angle Seat Valve is a DN25, 2/2-way pneumatically actuated process valve designed for on/off control of water, air, steam, gas and compatible liquids. A representative BRANDO configuration is ASV25SST25, with a G1'' threaded connection, stainless-steel body and PTFE sealing.

Typical Applications

Steam control
Compressed-air systems
Water treatment
Industrial water systems
Gas control
Heating equipment
Chemical process equipment
Food and beverage machinery
General process automation

The 1'' size is also available in different connection forms, including threaded, flanged, welded and Tri-Clamp configurations, allowing the same basic angle-seat valve concept to be adapted to different piping systems.

Technical Data:

Product Name	Pneumatic Angle Seat Valve
Port Size	1/2'' to 4''
Orifice Size	DN10 to DN100
Port Connection	Threaded, Flanged, Welded, Tri Clamp
Body Material	Stainless Steel 304, Stainless Steel 316
Seal Material	PTFE
Actuator Material	Plastic, Stainless Steel
Function	Single Acting Normally Closed Double Acting Normally Closed Double Acting Normally Open
Working Medium	Water, Air, Steam, Gas, Liquid, etc
Medium Temperature	-10 to +180℃
Ambient Temperature	-10 to +60℃
Working Pressure	0 to 1.6 MPa

Main Dimension:

Port Size	L	L1	T	D	R	P	H	Actuator
G1/2''	137	68	13	62	33.5	G1/8''	140	50
G3/4''	144	75	16	62	33.5	G1/8''	145	50
G1''	156	90	16	62	33.5	G1/8''	175	50
G1-1/4''	188	110	21	76	42	G1/8''	185	63
G1-1/2''	190	116	21	76	42	G1/8''	185	63
G2''	205	136	22	76	42	G1/8''	220	63
G2-1/2''	252	185	30	96	52	G1/8''	300	80
G3''	280	220	33	114	63	G1/8''	340	100
G4''	300	235	35	114	63	G1/8''	395	100

Port Size	A	B	C	ΦE	F	G	H	Actuator
G1/2''	85	170	16	64	44	112	140	50
G3/4''	95	180	16	64	44	112	145	50
G1''	105	215	19	80	52	120	175	63
G1-1/4''	117	220	21	80	52	120	185	63
G1-1/2''	129	230	21	80	52	120	185	63
G2''	149	265	25	100	60	120	220	80
G2-1/2''	155	252	26	126	73	140	300	100
G3''	220	368	30	126	73	140	340	100
G4''	235	420	35	168	97	164	395	125

Our Production:

Pneumatic angle seat valve production

Related Products:


Limit Switch Box	Pneumatic Valve	Pneumatic FRL	Electro Pneumatic Positioner

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
