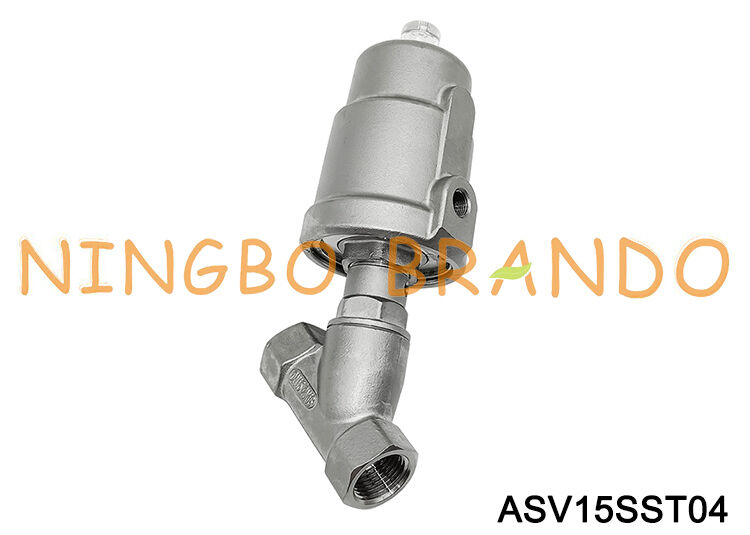

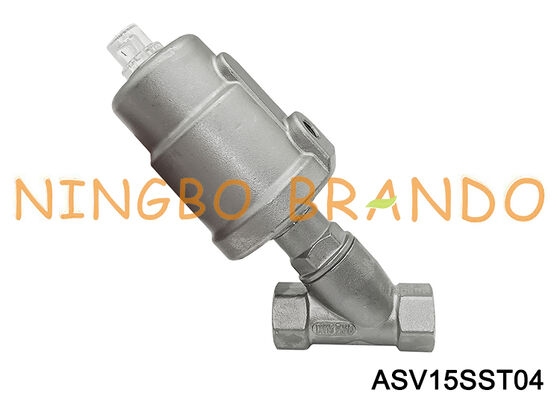

1/2'' Pneumatic Angle Seat Valve DN15 Stainless Steel NC Process Valve
A 1/2'' Pneumatic Angle Seat Valve is a pneumatically actuated 2/2-way process valve used for on/off control of liquids, gases, steam and other process media. The angled body creates a relatively direct flow path, making this valve type suitable for applications requiring good flow capacity and frequent switching.
For a representative 1/2'' / DN15 normally closed configuration, published specifications include a stainless-steel body, PTFE sealing, 15 mm orifice, and pneumatic spring-return actuation.
Working Principle
The valve uses compressed air to move a piston inside the actuator.
Air supplied → Valve opens
When pneumatic control air enters the actuator, the piston moves against the spring force and lifts the valve seat, allowing the process medium to flow.
Air removed → Valve closes
When the control air is exhausted, the internal spring returns the piston to its original position and closes the valve.
This makes the NC configuration fail-closed when pneumatic control air is lost, assuming the standard spring-return arrangement.
Advantages of the Angle Seat Design
The angle-seat construction provides several useful characteristics for industrial process control:
Relatively high flow capacity for its nominal pipe size
Suitable for frequent pneumatic switching
Can handle liquids, gases and steam, depending on seal and body configuration
Suitable for some higher-viscosity media
Stainless-steel construction is available for demanding process environments
Pneumatic actuation avoids installing an electrical actuator directly on the main valve mechanism
Technical Data:
|
Product Name
|
Pneumatic Angle Seat Valve
|
|
Port Size
|
|
|
Orifice Size
|
|
|
Port Connection
|
Threaded, Flanged, Welded, Tri Clamp
|
|
Body Material
|
Stainless Steel 304, Stainless Steel 316
|
|
Seal Material
|
|
|
Actuator Material
|
|
|
Function
|
Single Acting Normally Closed
Double Acting Normally Closed
Double Acting Normally Open
|
|
Working Medium
|
Water, Air, Steam, Gas, Liquid, etc
|
|
Medium Temperature
|
|
|
Ambient Temperature
|
|
|
Working Pressure
|
|
Main Dimension:
