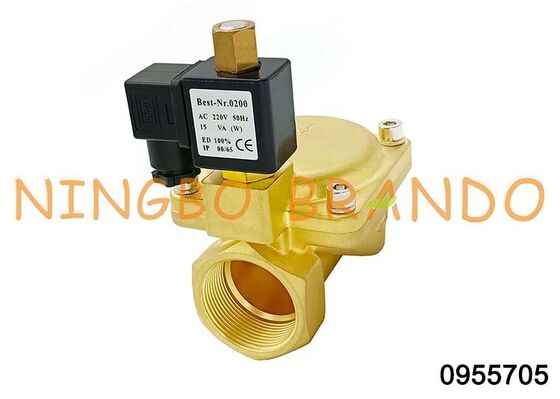

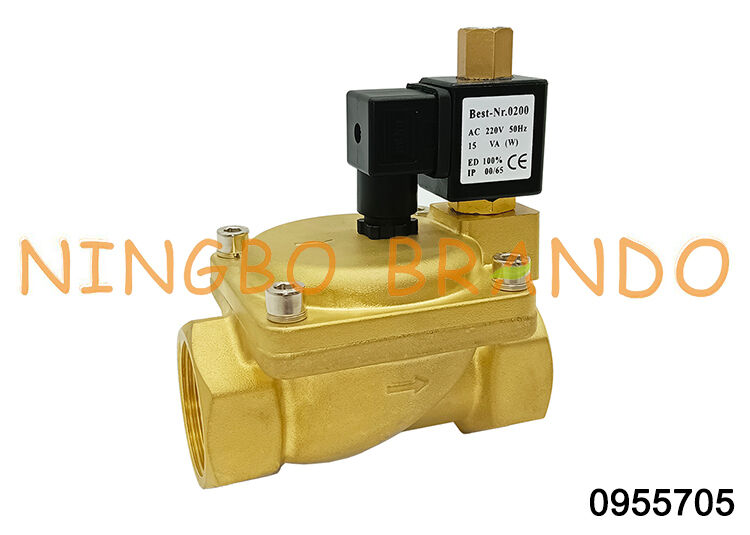

Solenoid Valve 0955705 G1-1/2'' 2 Way Normally Open DC24V AC220V AC110V DC12V

Solenoid Valve 0955705 G1-1/2'' 2 Way Normally Open DC24V AC220V AC110V DC12V

0955705 is a 2/2-way normally open (N.O.) pilot-operated diaphragm solenoid valve in the 0955 series. It is the G1-1/2" / 40 mm orifice version, designed for relatively high-flow control of air, water, gas, light oil, and other compatible media.

Working Principle

The 0955705 is normally open:

Coil de-energized: the main passage remains open.
Coil energized: the pilot mechanism changes the diaphragm pressure balance and closes the main flow passage.
Power failure: the valve returns to its normally open state.

As a pilot-operated diaphragm valve, it relies on differential pressure for normal operation, so pressure conditions should be checked before selecting it for low-pressure applications.

Typical Applications

The 40 mm orifice makes the 0955705 suitable for higher-flow fluid-control applications, including:

Industrial water systems
Compressed-air equipment
Air compressors
Gas-control pipelines
Light-oil systems
Automatic machinery
Process-control equipment
Industrial fluid pipelines

The applicable medium should always be checked against the selected diaphragm material. NBR, EPDM and FKM provide different temperature and chemical compatibility ranges.

Technical Data:

Main Dimension:
