0955 Normally Open Solenoid Valve 0955105 High Pressure Valve 1/4''

0955 Normally Open Solenoid Valve 0955105 High Pressure Valve 1/4''

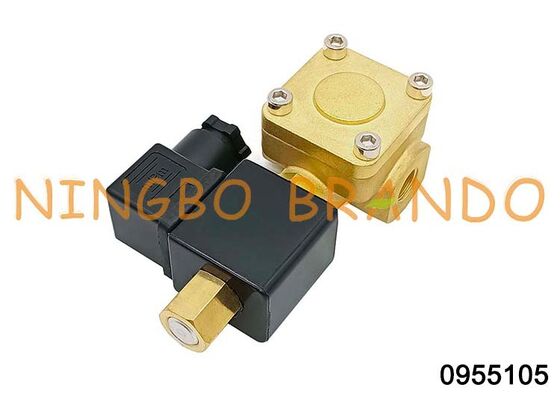

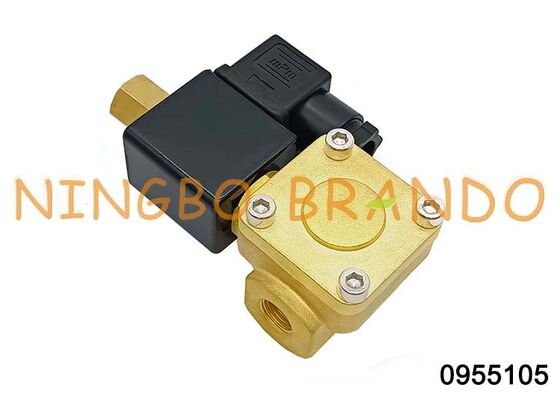

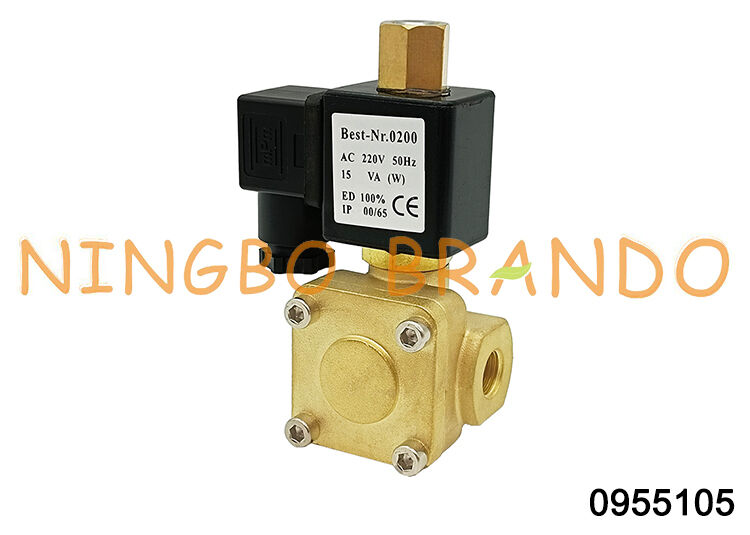

0955105 is a 2/2-way normally open (N.O.) pilot-operated diaphragm solenoid valve from the 0955 series. It has a 1/4" port and 8 mm orifice, making it the smallest standard size in this series.

Working Principle

The key feature of 0955105 is its normally open configuration.

Coil de-energized: the valve remains open, allowing the medium to pass.
Coil energized: the pilot diaphragm mechanism closes the main passage.
Power failure: the valve returns to its normal open state.

This makes the valve different from the 0927000, which has the same 1/4" port and 8 mm orifice but is normally closed.

Typical Applications

0955105 can be considered for:

Compressed-air systems
Water-control equipment
Gas-control systems
Light-oil applications
Automatic machinery
Compressor equipment
Process-control pipelines

Published specifications identify water, air, gas and light oil among applicable media, subject to seal compatibility.

Technical Data:

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.
