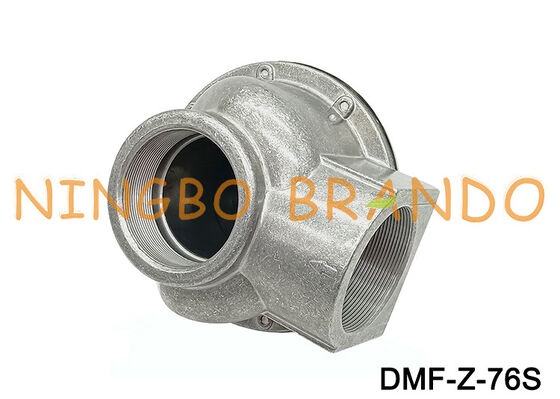

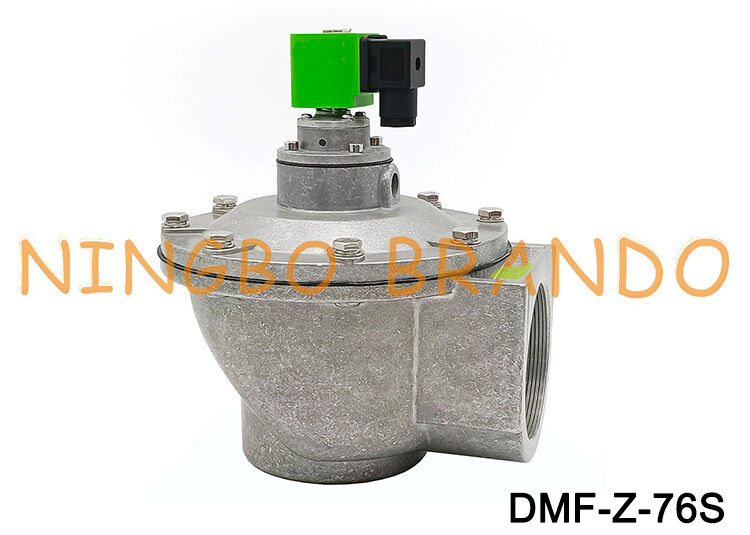

DMF-Z-76S G3'' Right Angle Diaphragm Valve AC220V DC24V Pulse Solenoid Valve

DMF-Z-76S G3'' Right Angle Diaphragm Valve AC220V DC24V Pulse Solenoid Valve

DMF-Z-76S is a 3-inch (DN76) right-angle electromagnetic pulse jet valve designed for reverse-pulse cleaning in industrial dust collectors, baghouses, and filtration systems. It uses an integrated solenoid pilot and two-diaphragm configuration, with the inlet and outlet arranged at 90°.

DMF-Z-76S Applications

The valve is commonly used in reverse-pulse cleaning systems for:

Baghouse dust collectors
Cartridge filters
Envelope filters
Ceramic filters
Sintered-metal-fiber filters
Industrial dust extraction
Cement and mineral processing
Metallurgy and power-generation filtration

The DMF-Z-76S is specifically described for reverse-jet dust-collector systems and clean compressed-air service.

For system selection, the 3-inch valve size should not be considered alone. Compressed-air pressure, reservoir volume, blow-tube diameter, filter media, pulse duration, and the number of valves operating on the same header all affect the actual cleaning result.

Technical Data of  Z Type Right Angle Pulse Jet Valves:

Dimension of DMF-Z-76S BFEC Pulse Jet Valve:

More BFEC Pulse Valve For You to Choose:

           Right Angle Type                         Quick Mount Type                         Submerged Type

            Diaphragm                     Solenoid Coil                  Armature Assembly            Pulse Controller
