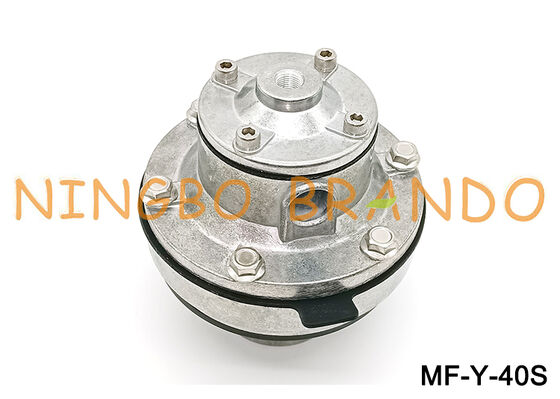

Name: DMF Submerged MF-Y-40S Pulse Valve 1-1/2 Inch Diaphragm Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: MF-Y-40S
Price: 49.10 USD
Availability: InStock

Home Products Pulse Jet Valve

DMF Submerged MF-Y-40S Pulse Valve 1-1/2 Inch Diaphragm Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	MF-Y-40S

Payment & Shipping Terms:

Minimum Order Quantity:	8pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	BFEC Pulse Jet Valve	Valve Type:	Full Immersion
Port Size:	1-1/2''	Diaphragm Material:	NBR
Working Pressure Range::	0.1 To 0.8 MPa	Body Material:	Aluminum Alloy
Structure:	Embedded	Working Temperature:	-5 To +80℃
Highlight:	1-1/2 inch pulse valve , MF-Y-40S pulse valve , MF-Y-40S remote pilot valve

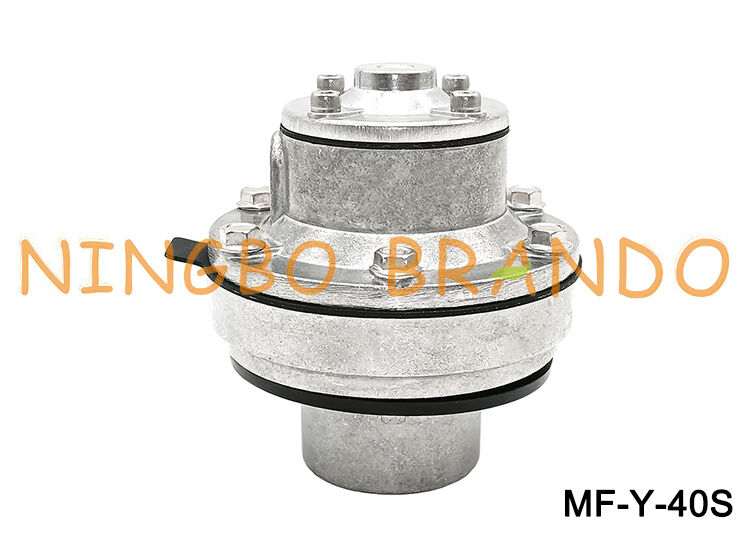

DMF Submerged MF-Y-40S Pulse Valve 1-1/2 Inch Diaphragm Valve

MF-Y-40S is a 1-1/2-inch (DN40) submerged/full-immersion pulse jet valve with a remote pilot for reverse-pulse cleaning in dust collector and baghouse systems. The key distinction from DMF-Y-40S is the pilot configuration: MF-Y-40S uses a remote solenoid pilot, while DMF-Y-40S uses an integral pilot.

MF-Y-40S uses a remote electromagnetic pilot valve to control the pressure above the two main diaphragms.

MF-Y-40S Applications

Typical applications include:

Baghouse dust collectors
Cartridge filter systems
Envelope filters
Ceramic filters
Sintered metal fiber filters
Industrial dust extraction
Gas-turbine filtration
Desulfurization equipment

Pulse jet valves act as the compressed-air switching element in reverse-pulse filter-cleaning systems.

Technical Data of SBFEC Type DMF Series Submerged Pulse Jet Valve:

Integral Pilot	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S
					DMF-YA-76S	DMF-Y-102SA
					DMF-YB-76S	DMF-Y-102SE
Remote Pilot	MF-Y-25	MF-Y-40S	MF-Y-50S	MF-Y-62S	MF-Y-76S	MF-Y-102S
					MF-YA-76S	MF-Y-102SA
					MF-YB-76S	MF-Y-102SE
Diameter (Inch)	1''	1-1/2''	2''	2-1/2''	3''	4''
Diaphragm Number	1	2
Diaphragm Material	NBR (Standard), FKM (Optional)
Body Material	Aluminum
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 24VAC, 110VAC, 220VAC

Main Dimension:

BFEC MF-Y-40S 1.5'' Embedded Remote Pilot Pulse Valve For Dust Collector 0

Related Products:


Fitting	Diaphragm	Remote Pilot Box	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
