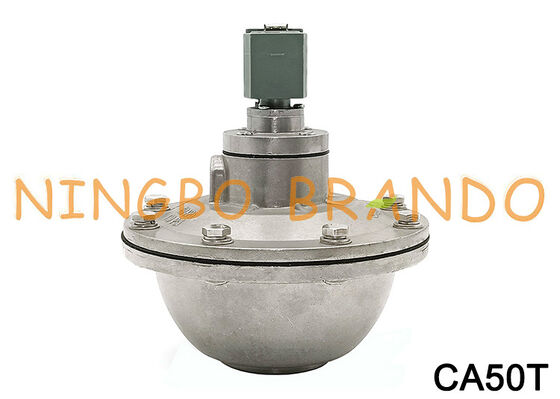

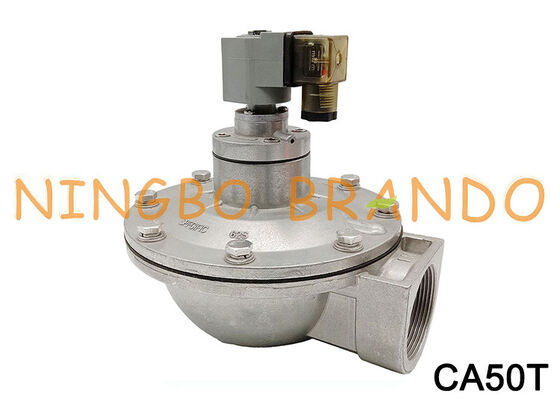

Goyen Type 2'' CA50T Diaphragm Pulse Jet Solenoid Valve for Dust Collector
The CA50T is a 2-inch (DN50) threaded, high-flow right-angle pulse jet valve. As a larger 2" valve, it is designed to clean long filter bags or large cartridge banks by delivering massive, rapid bursts of high-pressure air.
Key Specifications
Port Size: 2" (DN50) female threaded inlet and outlet (NPT or BSP threads).
Body Material: Die-cast aluminum alloy body and bonnet with stainless steel hardware.
Valve Structure: 90° right-angle double-diaphragm setup to ensure quick response times and high peak flow rates.
Actuation: Integrated solenoid pilot (CA prefix = direct-mounted solenoid coil; RCA prefix = remote pneumatic pilot).
Operating Pressure: 0.3 to 0.86 MPa / 5 to 125 PSI (3.5 to 8.6 bar).
Diaphragm Options:
NBR (Nitrile): Standard setup, -40°C to 82°C (-40°F to 180°F).
Viton (FKM): High-temperature/corrosive environment option, -29°C to 232°C (-20°F to 450°F).
Available Voltages: 24V DC, 110/120V AC, and 220/230V AC (50/60Hz).
Common Uses & Maintenance
Applications: Heavy-duty industrial dust collection systems including cement plant baghouses, steel production facilities, power generation plants, and bulk material handling systems.
Rebuild / Spare Parts: Uses replacement diaphragm kit K5004 (NBR standard) or K5005 (Viton high-temp), which includes the primary and secondary diaphragm assemblies, springs, and seals.
Technical data of Right Angle Pulse Jet Valves:
Integral Pilot Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Remote Pilot Model No
RCA15T
RCA20T
RCA25T
RCA35T
RCA45T
RCA50T
RCA62T
RCA76T
Orifice Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1-1/2''
1-1/2''
2''
2-1/2''
3''
Diaphragm Number
1
2
Working pressure
5 to 125 psi
Voltage
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Material
NBR(Standard), FKM(Option)
Body Material
Aluminum (diecast)
Valve Structure
Right Angle (Outlet is at 90° to Inlet)
Dimension of CA50T Goyen Type Pulse Jet Valve:
Video of CA50T Goyen Type Pulse Jet Valve:
Detail images of Goyen Type Pulse Jet Valves:
More Goyen Type Pulse Valve For You to Choose:
Threaded Type Immersion Type Dresser Nut Type Flanged Type
RCA Series Solenoid Coil Armature Assembly Pulse Controller
