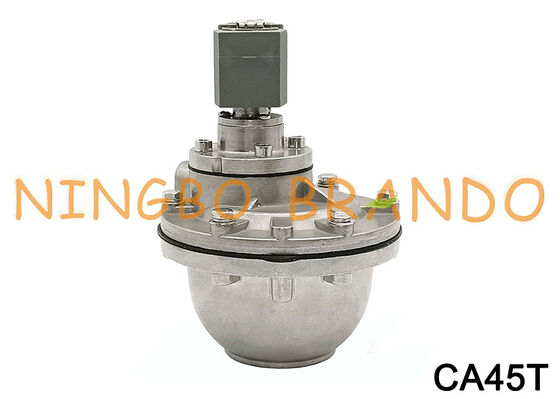

The CA45T is a 1.5-inch (1-1/2") threaded, right-angle pulse jet valve. While it shares the same nominal port size as the CA35T, the CA45T features a larger valve body casting and expanded internal flow channels, delivering higher peak flow for large-capacity reverse-pulse dust collection systems.
Key Specifications Port Size: 1-1/2" (DN40) female threaded inlet and outlet (NPT or BSP). Body Material: Die-cast aluminum body and cover with stainless steel fasteners. Valve Structure: Right-angle, high-flow double-diaphragm configuration. Actuation: Integrated solenoid pilot (CA prefix = direct-mounted solenoid coil; RCA prefix = remote air-pilot operated). Operating Pressure: 0.3 to 0.86 MPa / 5 to 125 PSI (3.5 to 8.6 bar). Diaphragm Options: NBR (Nitrile): Standard range, -40°C to 82°C (-40°F to 180°F). Viton (FKM): High-temperature/chemical option, -29°C to 232°C (-20°F to 450°F). Available Voltages: 24V DC, 110/120V AC, and 220/230V AC.
Common Uses & Maintenance Applications: Heavy industrial baghouses, cement plants, steel mills, foundry ventilation, and large pulse-jet dust filtration units.
Rebuild / Spare Parts: Uses replacement diaphragm kit K4502 (standard NBR) or K4503 (Viton high-temp). These kits include both the primary and secondary diaphragm assemblies, springs, and seals.
Technical data of Right Angle Pulse Jet Valves:
Integral Pilot Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Remote Pilot Model No
RCA15T
RCA20T
RCA25T
RCA35T
RCA45T
RCA50T
RCA62T
RCA76T
Orifice Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1-1/2''
1-1/2''
2''
2-1/2''
3''
Diaphragm Number
1
2
Working pressure
5 to 125 psi
Voltage
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Material
NBR(Standard), FKM(Option)
Body Material
Aluminum (diecast)
Valve Structure
Right Angle (Outlet is at 90° to Inlet)
Dimension of CA45T Goyen Type Pulse Jet Valve:
Video of CA45T Goyen Type Pulse Jet Valve:
Detail images of Goyen Type Pulse Jet Valves:
