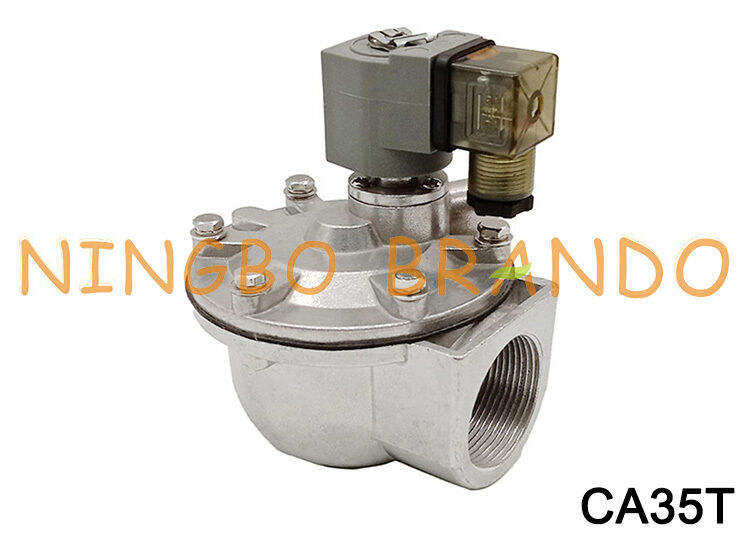

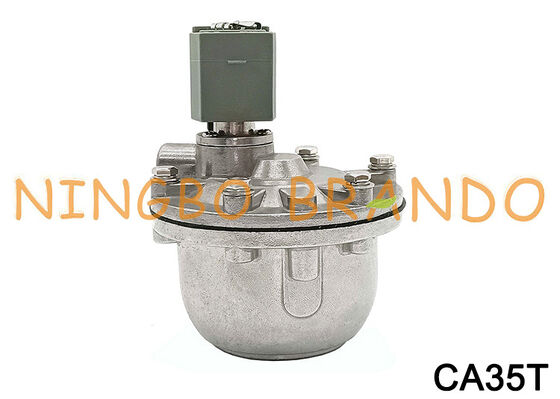

The CA35T is a 1.5-inch (1-1/2") threaded, high-performance right-angle pulse jet valve. It handles higher air volumes than the smaller CA20T and CA25T models, making it suitable for larger filter rows in industrial dust collection systems.
Key Specifications
Port Size: 1-1/2" (DN40) female threaded inlet and outlet (NPT or BSP threads).
Body Material: Die-cast aluminum alloy body and cover with stainless steel fasteners.
Valve Structure: 90° right-angle single-stage double-diaphragm design for rapid opening and closing cycles.
Actuation: Integrated solenoid pilot (CA prefix = direct-mounted solenoid coil; RCA prefix = remote air-pilot operated).
Operating Pressure: 0.3 to 0.86 MPa / 5 to 125 PSI (3.5 to 8.6 bar).
Diaphragm Options:
NBR (Nitrile): Standard range, -40°C to 82°C (-40°F to 180°F).
Viton (FKM): High-temperature/chemical option, -29°C to 232°C (-20°F to 450°F).
Solenoid Voltage Options: 24V DC, 110/120V AC, and 220/230V AC (50/60Hz).
Common Uses & Maintenance
Applications: Heavy-duty dust collector systems, asphalt plants, mining operations, power generation baghouses, and large cartridge collection setups.
Rebuild / Replacement Kits: The double-diaphragm assembly typically uses kit K3500 (NBR standard) or K3501 (Viton high-temp) containing both primary and secondary diaphragms, springs, and seals.
Technical data of Right Angle Pulse Jet Valves:
Integral Pilot Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Remote Pilot Model No
RCA15T
RCA20T
RCA25T
RCA35T
RCA45T
RCA50T
RCA62T
RCA76T
Orifice Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1-1/2''
1-1/2''
2''
2-1/2''
3''
Diaphragm Number
1
2
Working pressure
5 to 125 psi
Voltage
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Material
NBR(Standard), FKM(Option)
Body Material
Aluminum (diecast)
Valve Structure
Right Angle (Outlet is at 90° to Inlet)
Dimension of CA35T Goyen Type Pulse Jet Valve:
Video of CA35T Goyen Type Pulse Jet Valve:
Detail images of Goyen Type Pulse Jet Valves:
More Goyen Type Pulse Valve For You to Choose:
Threaded Type Immersion Type Dresser Nut Type Flanged Type
RCA Series Solenoid Coil Armature Assembly Pulse Controller
