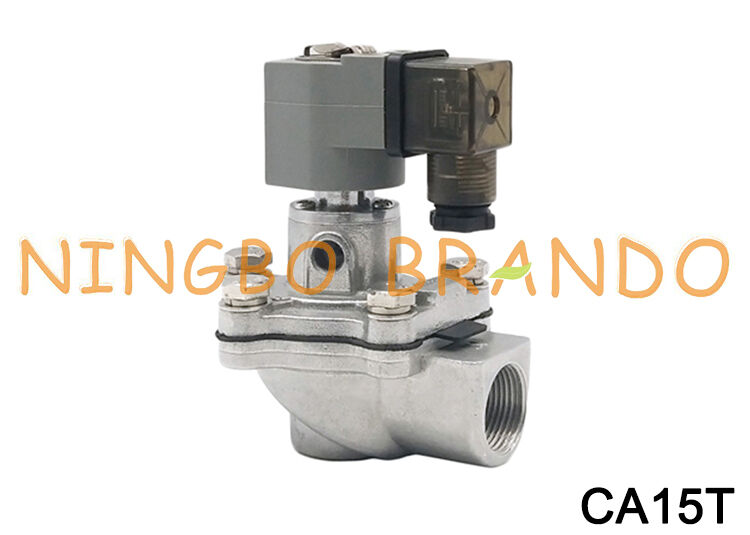

Goyen Type CA15T Pulse Jet Valves 1/2'' T series DC24V AC220V
The Goyen type CA15T is a 1/2-inch right-angle threaded pulse jet solenoid valve used in dust collector systems. It acts as an air switch to clean filter bags with a working pressure range of 0.3 to 0.8 MPa and available voltages including 24VDC and 220VAC.
Key Specifications
Port Size: 1/2 inch (15mm nominal)
Valve Type: Right-angle, threaded port
Pressure Range: 0.3 to 0.8 MPa
Voltage Options: 24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Materials: NBR, FKM, or EPDM
Dimension of CA15T Goyen Type Pulse Jet Valve:
Technical data of Right Angle Pulse Jet Valves:
Integral Pilot Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Remote Pilot Model No
RCA15T
RCA20T
RCA25T
RCA35T
RCA45T
RCA50T
RCA62T
RCA76T
Orifice Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1-1/2''
1-1/2''
2''
2-1/2''
3''
Diaphragm Number
1
2
Working pressure
5 to 125 psi
Voltage
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Material
NBR(Standard), FKM(Option)
Body Material
Aluminum (diecast)
Valve Structure
Right Angle (Outlet is at 90° to Inlet)
Video of CA15T Pulse Jet Valve:
More Goyen Type Pulse Valve For You to Choose:
Threaded Type Immersion Type Dresser Nut Type Flanged Type
RCA Series Solenoid Coil Armature Assembly Pulse Controller
Working Principles:
The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in “closed” position.
When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity.
The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.
When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.
The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.
