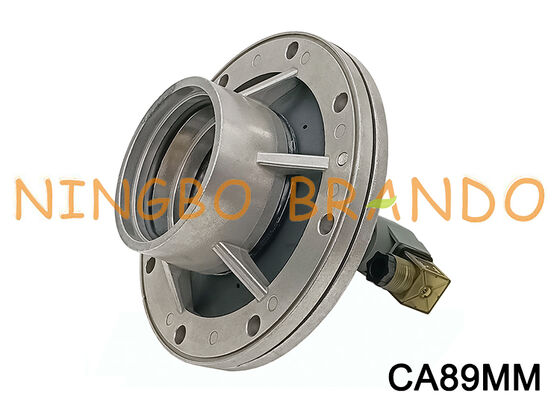

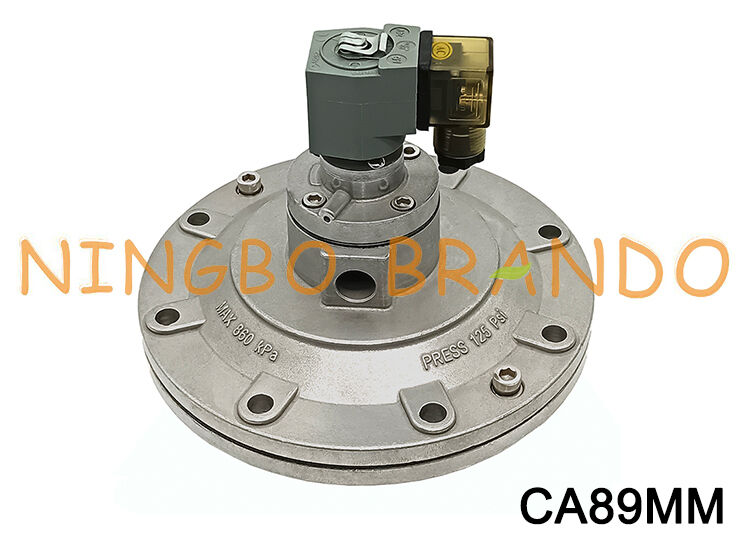

CA89MM Submerged Solenoid Valve 3.5'' 3-1/2'' Pulse valve AC110V AC220V DC24V

CA89MM Submerged Solenoid Valve 3.5'' 3-1/2'' Pulse valve AC110V AC220V DC24V

CA89MM refers to a 3.5-inch (~89 mm) submerged/full-immersion pulse jet valve (Goyen type MM series design). It is an ultra-high-flow diaphragm valve engineered for large-scale industrial dust collectors and baghouses requiring massive volumes of compressed air to clean filter bags.

Mounting directly inside or onto flat surfaces of square or rectangular air tanks/headers, it provides optimal air delivery with minimal pressure drop across large filtration systems.

Key Specifications & Characteristics

Port/Size: 3-1/2 inches (~89 mm nominal)

Mounting Type: Submerged / Manifold Mount (MM Series)

Operating Pressure: ~0.3 to 0.85 MPa (3 to 8.5 bar)

Temperature Range: Nitrile diaphragms (-40°C to 82°C) or Viton diaphragms (-29°C to 232°C for high-temp applications)

Voltage Options: Standard solenoids in 24V DC, 110V AC, or 220V AC

Common Variants & Accessories

RCA89MM: Remote-pilot version operated via an external pilot valve array rather than an attached solenoid coil.

K8900 / M8900: Replacement diaphragm repair kits for 3.5-inch Goyen-style valves.

Technical Data:

Main Dimension:
