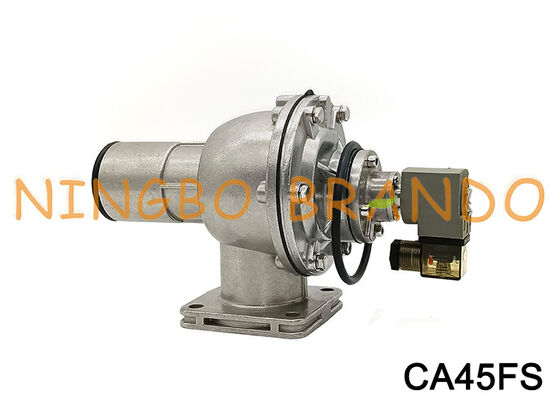

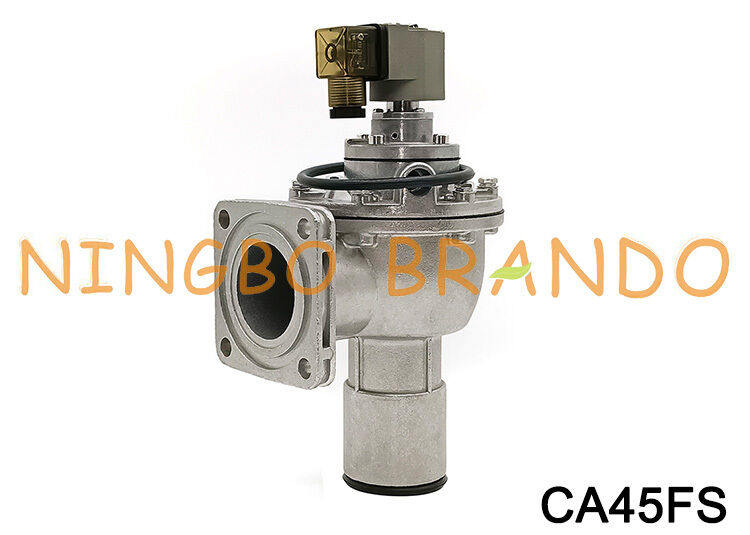

Goyen Type FS Series Pulse Jet Valves CA45FS CAC45FS CA45FS010-300 24V 220V
A CA45FS is a 1.5-inch (40 mm) integral pilot pulse jet diaphragm valve from Goyen's FS Series, designed for cleaning filter bags and cartridges in dust collectors and industrial filtration systems.
Unlike remote-operated units, the "CA" designation indicates that it includes an integral solenoid pilot attached directly to the valve head.
Key Technical Specifications
Connection Type: Flanged inlet port with a slide seal outlet port, allowing quick valve installation and removal without disassembling surrounding blowpipes.
Port Size: 1.5-inch (40 mm) nominal size.
Operation: Integral solenoid pilot operated. Standard voltage options include 24V DC, 24V AC, 110V AC, and 220V AC (e.g., standard models like CA45FS010-300 or CA45FS010-305).
Body Material: Die-cast aluminum body.
Diaphragm Options (such as the K4502/K4503 series): Standard Nitrile/Buna-N shockwave diaphragm for low-to-medium temperature ranges, or Viton for high-temperature and harsh chemical applications.
Specification of FS SeriesPulse Jet Valves:
Integral Pilot
DMF-ZF-25
DMF-ZF-40S
Remote Pilot
MF-ZF-25
MF-ZF-40S
Orifice Size (mm)
25
40
Port Size
1''
1-1/2''
Pilot Size
1/8'', 1/4''
Diaphragm Number
1
2
Diaphragm Material
NBR (Standard), FKM (Optional)
Body Material
Aluminum
Coil Voltage
24VDC, 24VAC, 110VAC, 220VAC
Pressure Range
0.1 to 0.8 MPa
Main Dimension of CA45FS Solenoid Pulse Jet Valve:
Video of Goyen Type CA45FS Pulse Jet Valve:
More Goyen Type Pulse Jet Valves for you to choose:
T Series
DD Series
FS Series
MM Series
RCA Series
Solenoid Coil
Solenoid Armature
Diaphragm
