Name: RCAC25DD4 4 Series Pulse Jet Diaphragm Valves with Dresser Nut 1''
Brand: Ningbo Brando Hardware Co., Ltd
SKU: RCAC25DD4
Price: 49.10 USD
Availability: InStock

Home Products Pulse Jet Valve

RCAC25DD4 4 Series Pulse Jet Diaphragm Valves with Dresser Nut 1''

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	RCAC25DD4

Payment & Shipping Terms:

Minimum Order Quantity:	8pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	4 to 5 working days
Payment Terms:	T/T,PayPal,Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:	Pulse Valve	Pilot Size:	1/8''
Port Size:	1''	Body Material:	Aluminum (diecast)
Diaphragm Material:	TPE (Shockwave)	Working Pressure:	5 To 125 Psi
Application:	Dust Collector	Ref No:	RCAC25DD4012, RCAC25DD4002, RCAC25DD4022
Highlight:	RCAC25DD4 Series Pulse Jet Valves , Goyen RCAC25DD4122 , RCAC25DD4 Valve

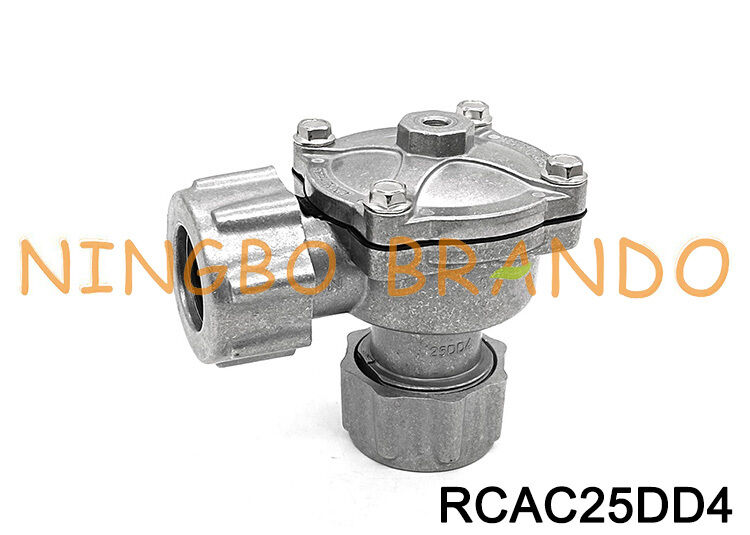

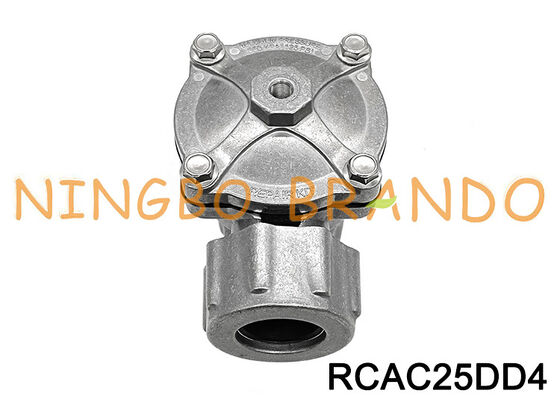

RCAC25DD4 4 Series Pulse Jet Diaphragm Valves with Dresser Nut 1''

An RCAC25DD4 is a high-performance 1-inch (25 mm) remote pilot pulse jet diaphragm valve for dust collector systems, baghouses, and industrial filtration units.

Key Technical Specifications

Port Size: 1-inch (25 mm) Dresser nut (compression fit) connections, allowing easy installation without threading pipes.

Operation: Remote pilot operated with a 1/4" NPT or G thread pilot connection to an external solenoid enclosure. Recommended pulse time is 50–500 ms.

Body Material: Die-cast aluminum body and Dresser nuts.

Diaphragm: The standard repair kit for this model is K2546, Standard Goyen Shockwave diaphragm for quick opening and long service life.

Technical Data:

Integral Pilot Type	CA20DD	CA25DD	CA45DD	CAC20DD4	CAC25DD4
Remote Pilot Type	RCA20DD	RCA25DD	RCA45DD	RCAC20DD4	RCAC25DD4
Port Size	3/4''	1''	1-1/2''	3/4''	1''
Pilot Size	1/8''	1/8''	1/4''	1/8''	1/8''
Pipe Connection	Dresser Nut
Working Pressure	5 to 125 psi
Diaphragm Material	NBR (Standard), FKM (optional)			Shockwave
Body Material	Aluminum (diecast)
Voltage	24VDC, 24VAC, 110VAC, 220VAC

RCAC25DD4 Dimension:

RCAC25DD4 4 Series Pulse Jet Diaphragm Valves with Dresser Nut 1''

Our Production:

RCAC25DD4 4 Series Pulse Jet Diaphragm Valves with Dresser Nut 1''

Related Products:


Solenoid Pilot	Diaphragm	Pilot Valve Box	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Tag:

Contact Person: Mr. Brandon Bao

Tel: 86-13454729544

Fax: 86-574-83879820
