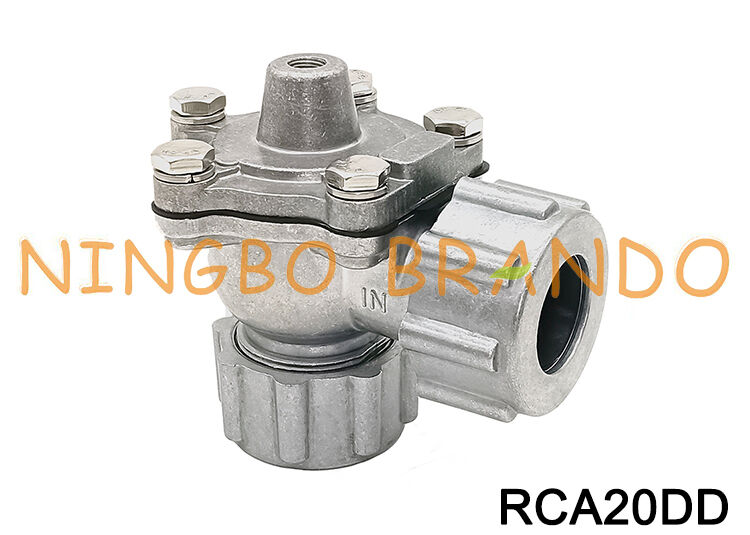

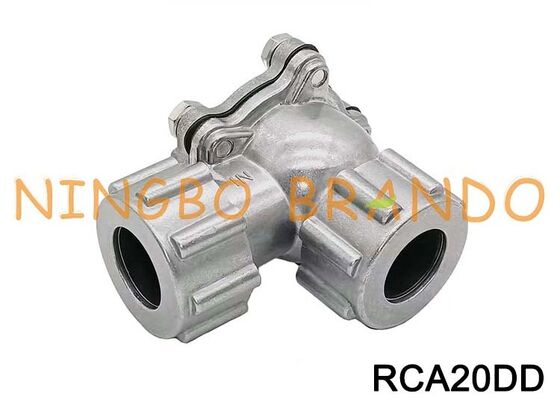

RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve

RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve

The RCA20DD is a 3/4-inch remote pilot-operated pulse jet diaphragm valve designed for reverse-pulse dust collector baghouses and air filtration systems. Unlike the CA series, the "R" prefix designates that this model is remotely piloted by air rather than having an integral solenoid mounted directly on the valve body.

Key Specifications & Features

Type: Remote pilot-operated pulse jet diaphragm valve (requires an external pilot valve or solenoid enclosure).

Port Size: 3/4 inch (20 mm).

Connection / Design: Features DD-series compression coupling ends (Dresser Nut style) for quick, tool-free mounting directly onto unthreaded blowtubes.

Application: Used in dust collection systems across chemical processing, cement, metalworking, and manufacturing facilities to dislodge dust from filter bags or cartridges.

Operating Pressure: 5 to 125 psi (0.35 to 8.6 bar).

RCA20DD Dimension:

Technical Data:

Our Production:

Related Products:

Fitting	Diaphragm	Remote Pilot Box	Pulse Controller
