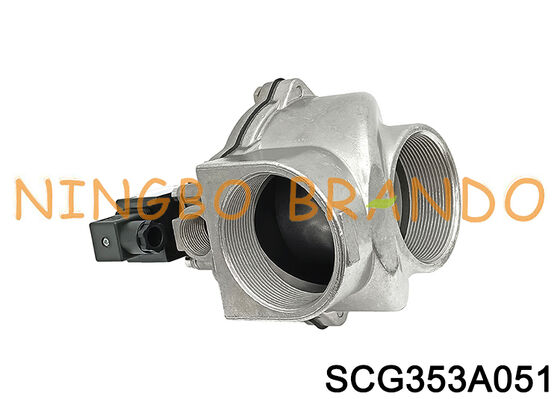

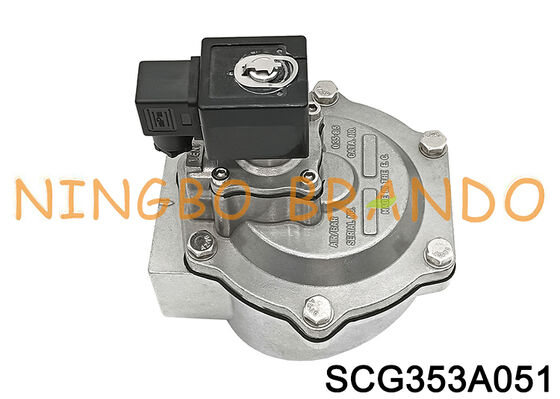

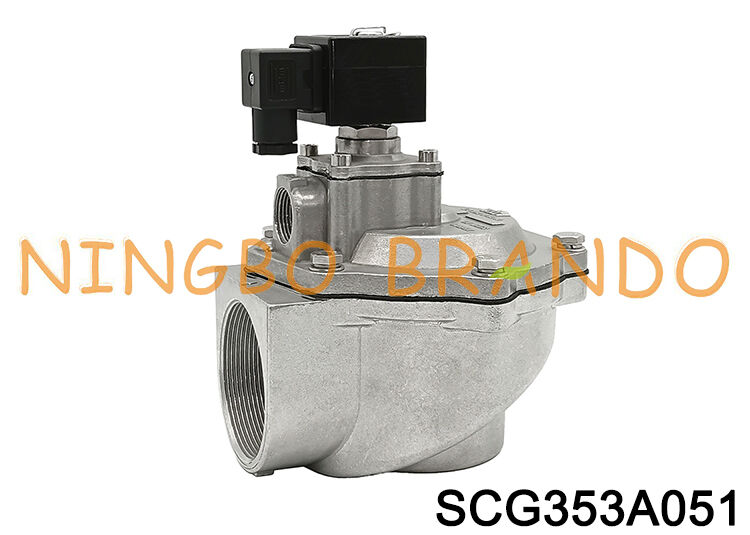

G2-1/2'' SCG353A051 Right Angle Diaphragm Solenoid Valve DC24V AC220V

G2-1/2'' SCG353A051 Right Angle Diaphragm Solenoid Valve DC24V AC220V

The ASCO type SCG353A051 is a 2-1/2-inch port size, solenoid pilot-operated diaphragm pulse jet valve designed for reverse-jet dust collector cleaning systems.

Key Specifications

Product Type: Series 353 Pulse Jet Valve

Port Size: G 2-1/2" (DN65)

Orifice Size: 66 mm

Body Material: Aluminum

Working Pressure: 0.3 to 0.8 MPa

Voltage Options: Available in various AC/DC configurations (e.g., 24V DC, 115V AC, 230V AC)

Enclosure Protection: IP65 standard coil insulation

Primary Applications

Reverse pulse-jet filter cleaning in dust collection systems

Cleaning of filter bags, cartridges, and ceramic filters

Technical Data of 353 Series Pulse Jet Valves:

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

Dimension of SCG353A051 Pulse Jet Valve:

Video of SCG353A051 Pulse Jet Valve:

More ASCO Type Pulse Valve For You to Choose:

           Right Angle Type                        Remote Pilot Type                       Immersion Type

            Diaphragm                     Solenoid Coil                Armature Assembly            Pulse Controller
