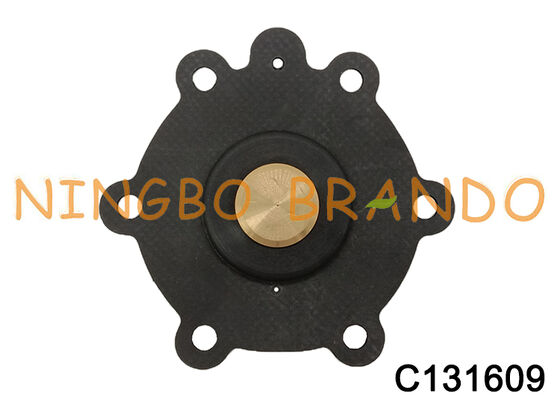

Name: ASCO Type C131609 Diaphragm Kit for SCE238D005 SCE238D010 Solenoid Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: C131609
Price: 49.10 USD
Availability: InStock

Home Products Diaphragm Repair Kit

ASCO Type C131609 Diaphragm Kit for SCE238D005 SCE238D010 Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	C131609

Payment & Shipping Terms:

Minimum Order Quantity:	5 set
Price:	Negotiation
Packaging Details:	Plastic bag, Box, Carton, Pallet
Delivery Time:	3 to 5 working days
Payment Terms:	T/T,PayPal,Western Union
Supply Ability:	100000 sets per month

Contact Now

Detailed Product Description

Product Name:

Solenoid Valve Diaphragm

Fitted Pulse Valve Port Size:

1''

Fitted Pulse Valve Model:

SCE238D005, SCE238D010

Diaphragm Material:

NBR

Highlight:

Asco C131609 SPARE PART SET

ASCO C131609

238 Solenoid Valve Diaphragm C131609

ASCO Type C131609 Diaphragm Kit for SCE238D005 SCE238D010 Solenoid Valve

C131609 diaphragm is used in ASCO SCE238D005, SCE238D010 solenoid valves. The diaphragm is the most important part of the solenoid valve. When the solenoid valve is energised, the trapped air above solenoid valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the solenoid valve is de-energised, air escapes through bleed hole of main solenoid valve to balance the diaphragm pressure and instantly closes the solenoid valve.

Reference No:

BRANDO Model No	Ref No	Fitted Solenoid Valve Model NO	Fitted Solenoid Valve Port Size	Diaphragm Material
238D	C131600	SCE238D001, SCE238D002, SCE238D006, SCE238D007	3/8'', 1/2'' (DN12mm)	NBR (Standard) EPDM (Optional) FKM (Optional)
238D15	C131618	SCE238D003, SCE238D008	1/2'' (DN15mm)
238C	C131606	SCE238D004, SCE238D009	3/4'' (DN20mm)
238E	C131609	SCE238D005, SCE238D010	1'' (DN25mm)

C131609 Dimension:

BRANDO Production:

Related Products:


Brass Solenoid Valve	Solenoid Valve Coil	DIN43650B Connector

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
