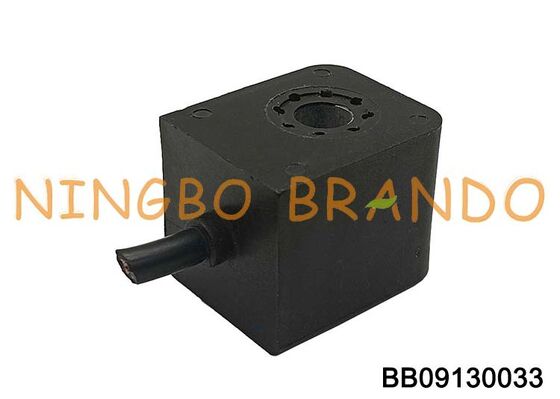

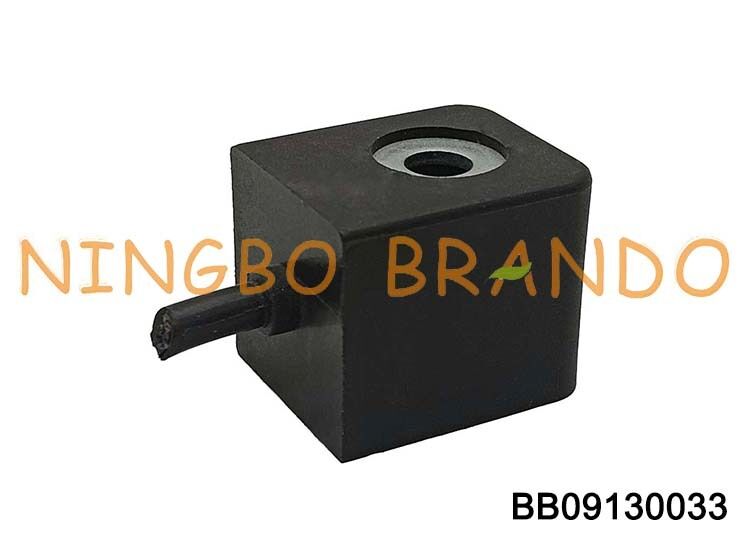

9mm Hole Diameter CNOMO Type Pneumatic Solenoid Valve Coil With Cable Wire 13VA 10W

A solenoid valve coil is designed to convert electrical energy into lateral motion. The coil usually consists of copper wire wound around a hollow bobine or tube so when electric current flows through the coil, a magnetic field is generated. By placing a solenoid valve coil over a ferromagnetic core (usually magnetic 430F stainless steel armature) the magnetic field generated causes the plunger to slide further up towards the magnetic field (into the coil) thus allowing an opening to be created. This in turn can be utilised to either to control direct acting solenoid valves, Assisted Lift Solenoid Valves or Servo/ Pressure Assisted solenoid valves.

Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Hole Size:9.1mm
Height:30.0mm
Width:29.5mm
Voltage:AC220V, AC110V
Power:13VA, 10W
Connection Type:Cable
Insulation class:F, H
Protection class:IP65, IP67, IP68
Application:Solenoid valve

Dimension of BB091360033 Solenoid Valve Coil :

Technical Data:

Details:

Hole Size 9.1mm	Height 30.0mm	Width 29.5mm
