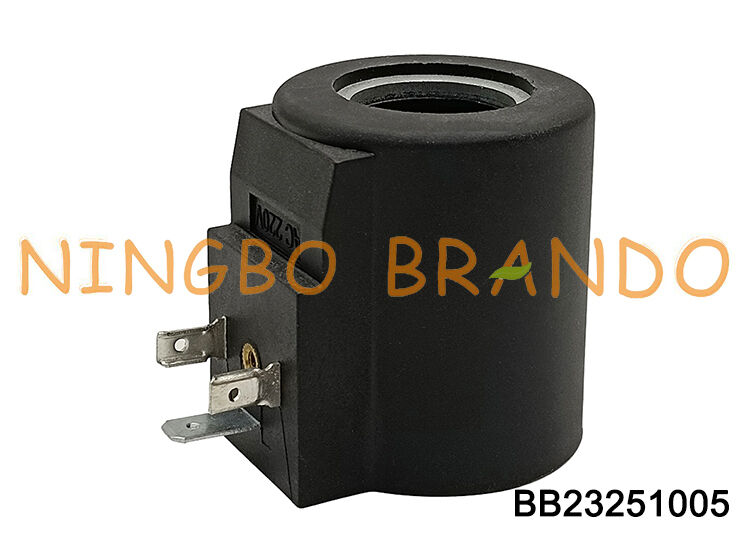

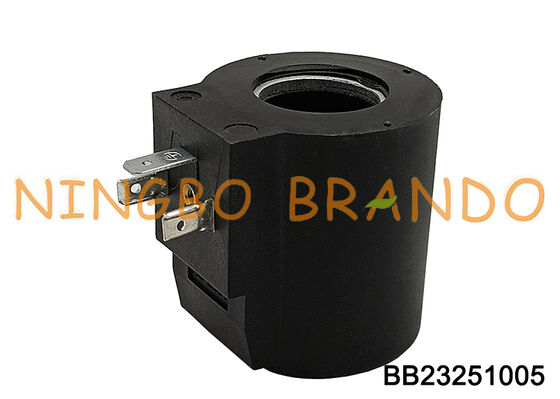

DSG-03 Yuken Type Hydraulic Solenoid Valve Coil 12VDC 24VDC 28W 38W

This φ23mm x 46.7mm x 51mm hydraulic solneoid coil is applied in Yuken DSG Series Hydraulic Directional Valves. Hydraulic solenoid valves are components used in hydraulic transmissions to control fluid pressure, flow, and direction. The pressure control valve is called a pressure control valve, the flow control valve is called a flow control valve, and the directional control valve is called to control the on, off and flow directions. The directional control valve is divided into a one-way valve and a reversing valve according to the purpose. The one-way valve only allows the fluid to be unidirectionally connected in the pipeline, and the reverse direction is cut off. Directional valve: change the on-off relationship between different pipelines, according to the working position of the valve core in the valve body, two, three, etc.; according to the number of channels controlled, two-way, three-way, four-way, Five-way, etc.; according to the spool drive mode, manual, motorized, electric, hydraulic, etc.

Dimension of Hydraulic Solenoid Valve Coil:

DIN43650A Connection Hydraulic Coil For Yuken DSG Series Directional Valve:
